Component and Components Location: Components

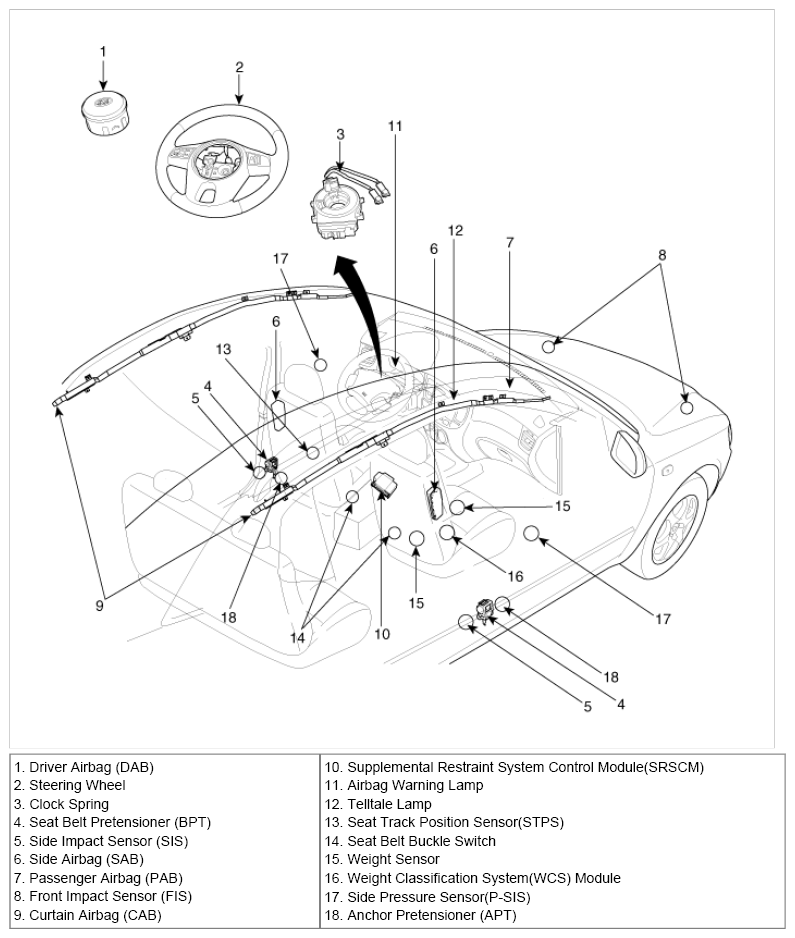

Fig 1: Identifying SRS Components Location

G07368285

Courtesy of KIA MOTORS AMERICA, INC.
