Repair procedures: Disassembly

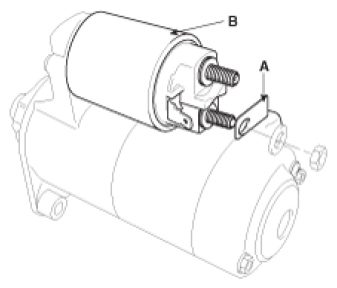

Disconnect the M-terminal (A) on the magnet switch assembly (B).

Fig 1: M-Terminal & Magnet Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

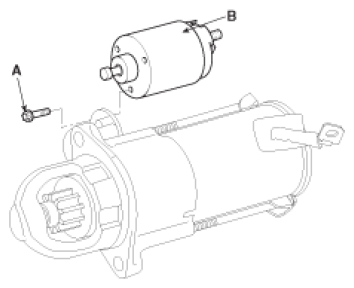

After loosening the 3 screws (A), detach the magnet switch assembly (B).

Fig 2: Magnet Switch Assembly & Screw
Courtesy of KIA MOTORS AMERICA, INC.

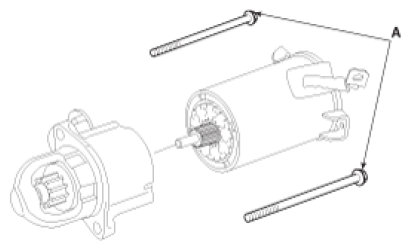

Loosen the through bolts (A).

Fig 3: Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.

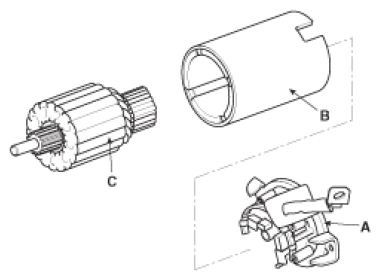

Remove the brush holder assembly (A), yoke (b) and armature (C).

Fig 4: Brush Holder Assembly, Yoke & Armature
Courtesy of KIA MOTORS AMERICA, INC.

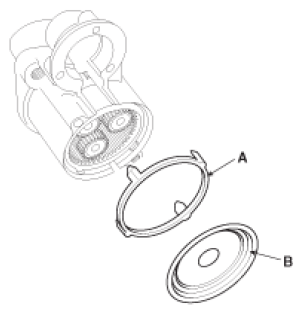

Remove the shield (A) and packing (B).

Fig 5: Packing & Shield
Courtesy of KIA MOTORS AMERICA, INC.

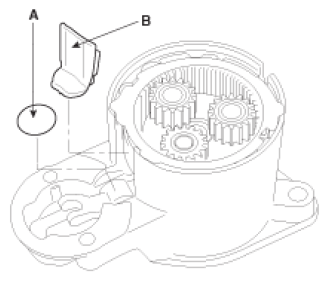

Remove the lever plate (A) and lever packing (B).

Fig 6: Lever Plate & Lever Packing
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the planet gear (A).

Fig 7: Planet Gear
Courtesy of KIA MOTORS AMERICA, INC.

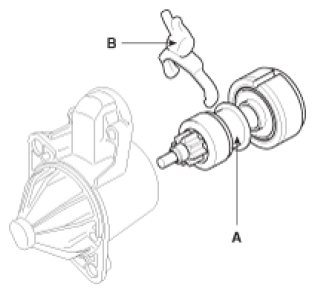

Disconnect the planet shaft assembly (A) and lever (B).

Fig 8: Planet Shaft Assembly & Lever
Courtesy of KIA MOTORS AMERICA, INC.
Press the stop ring (A) using a socket (B).

Fig 9: Pressing Stop Ring
Courtesy of KIA MOTORS AMERICA, INC.

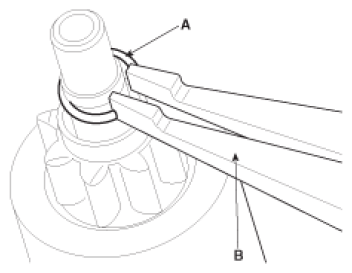

After removing the stopper (A) using stopper pliers (B).

Fig 10: Removing Stopper
Courtesy of KIA MOTORS AMERICA, INC.

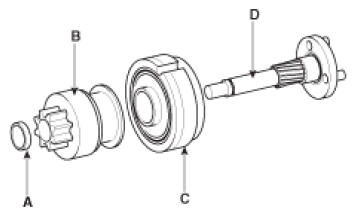

Disconnect the stop ring (A), overrunning clutch (B), internal gear (C) and planet shaft (D).

Fig 11: Stop Ring, Overrunning Clutch, Internal Gear & Planet Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.

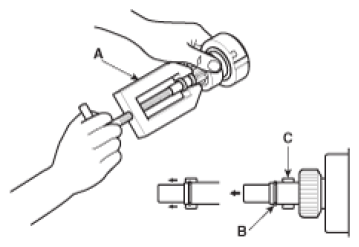

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).

Fig 12: Pulling Overrunning Clutch Stop Ring

Courtesy of KIA MOTORS AMERICA, INC.
