Circuit Diagram

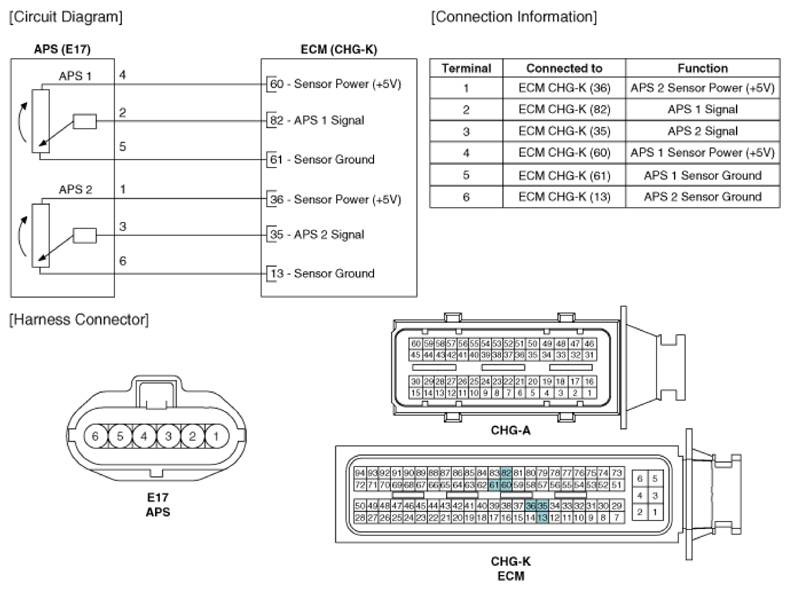

Fig 1: APS (E17) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312872Courtesy of KIA MOTORS AMERICA, INC.
