Circuit Diagram

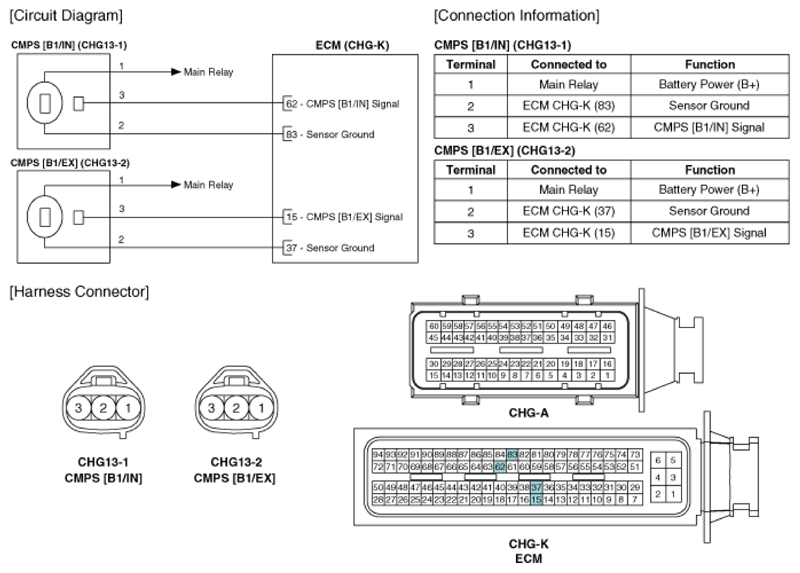

Fig 1: CMPS (CHG13-1 And CHG13-2) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312857Courtesy of KIA MOTORS AMERICA, INC.
