Home
>>
Kia
>>
2011
>>
Optima L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Relay
>>
PDM3 (IG2) Relay
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
PDM3 (IG2) Relay

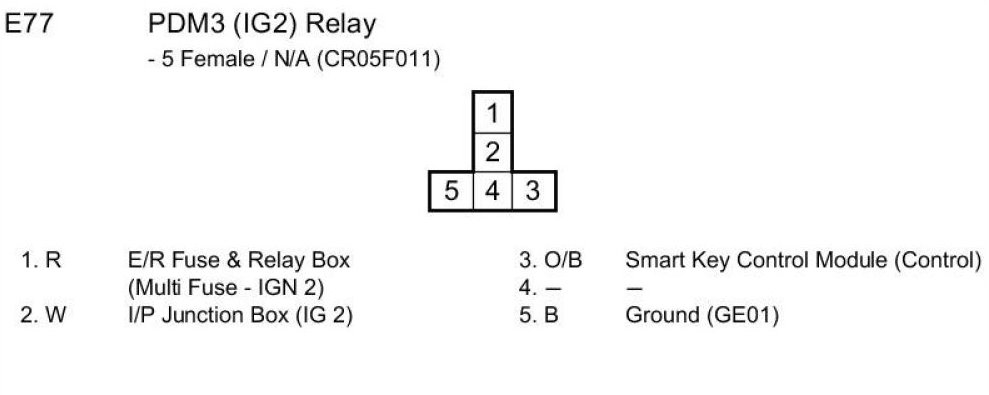

E77 PDM3 (IG2) Relay:
