Engine Control Module





ECM Terminal And Input/Output signal

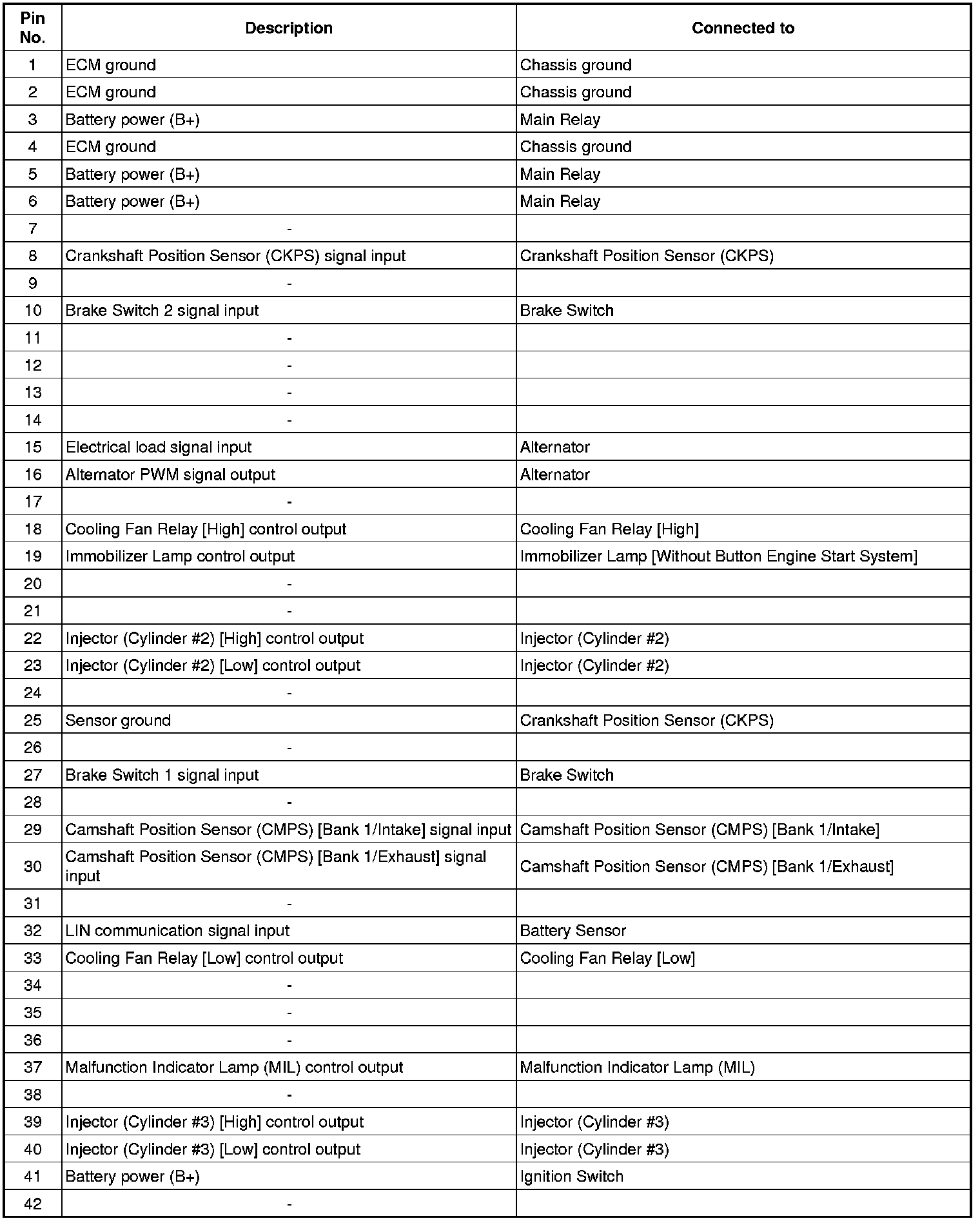

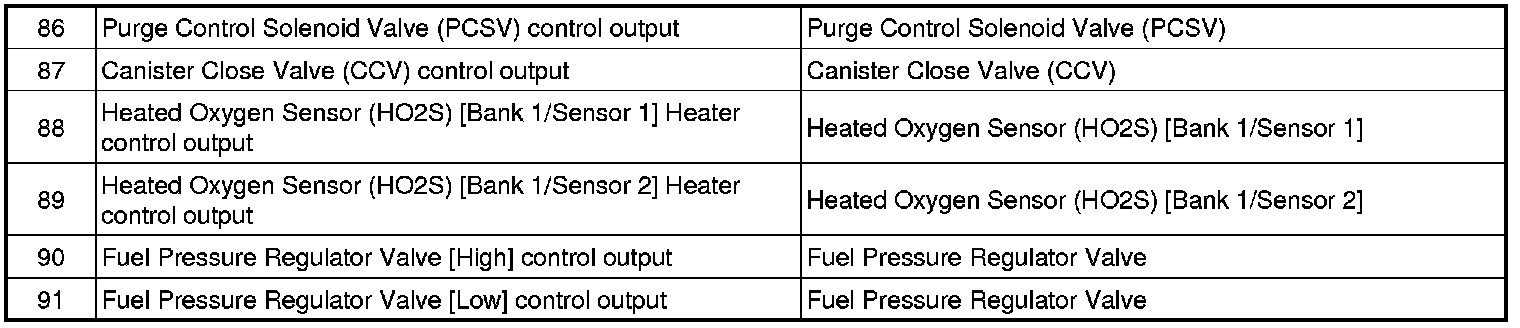

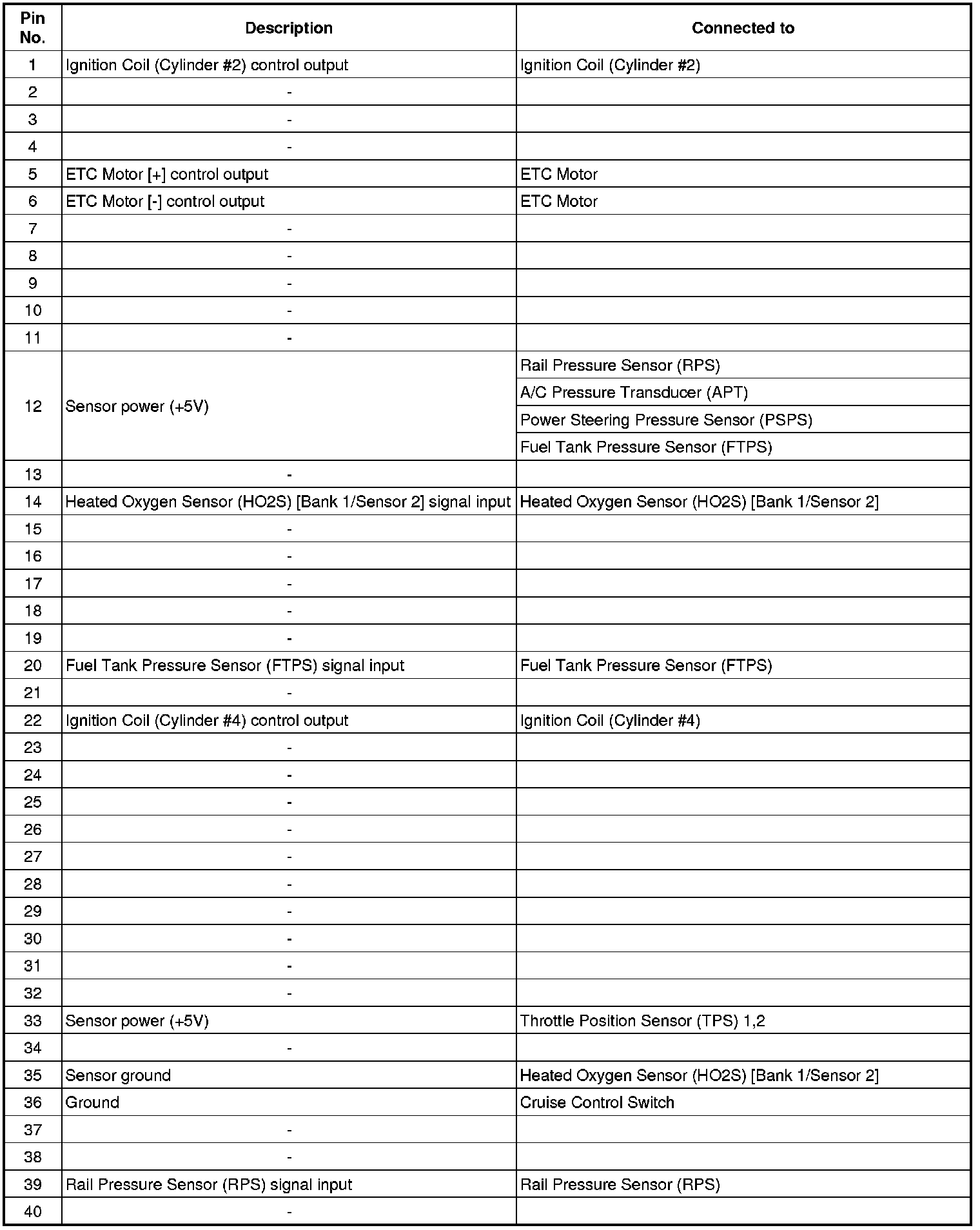

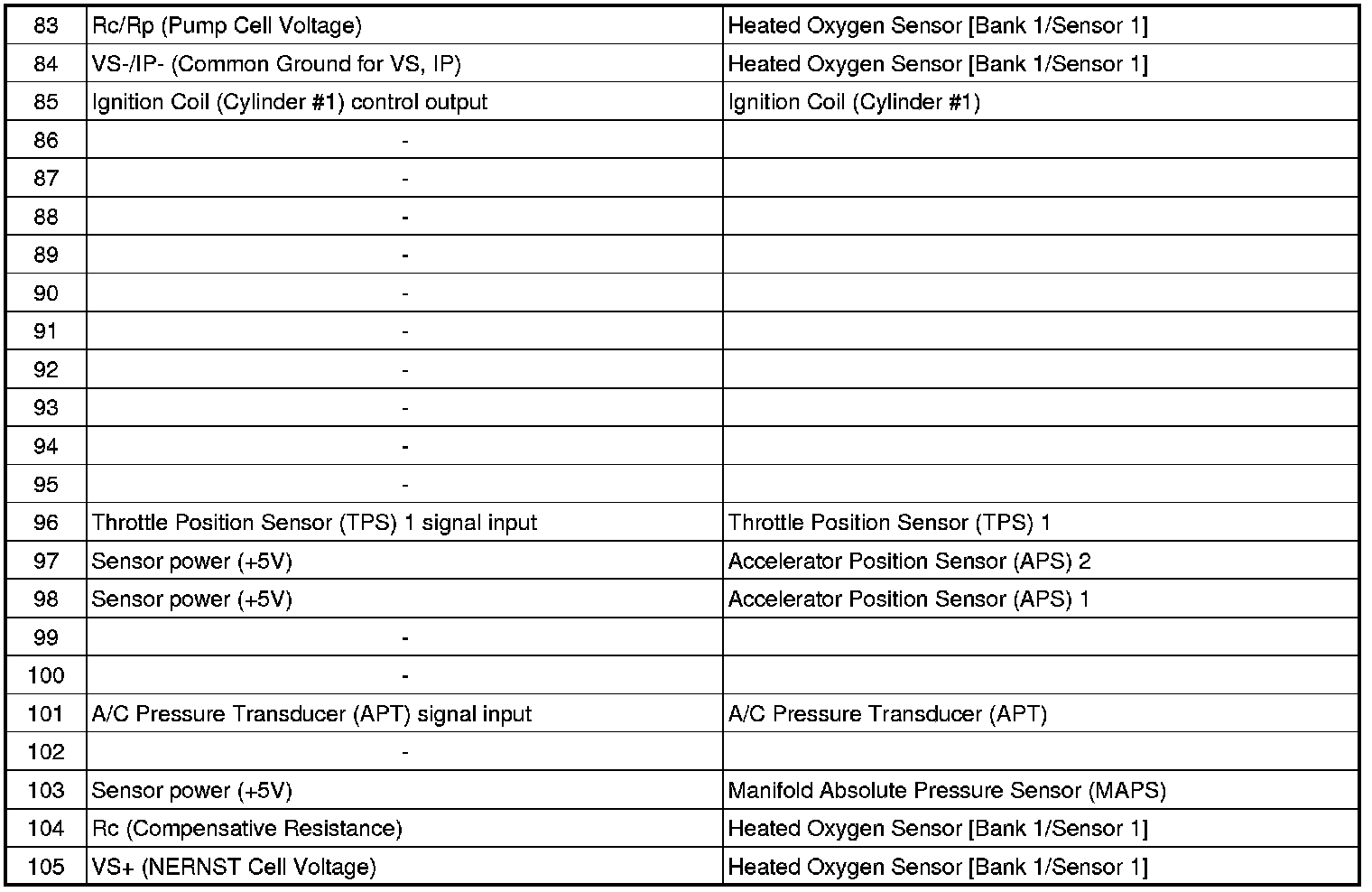

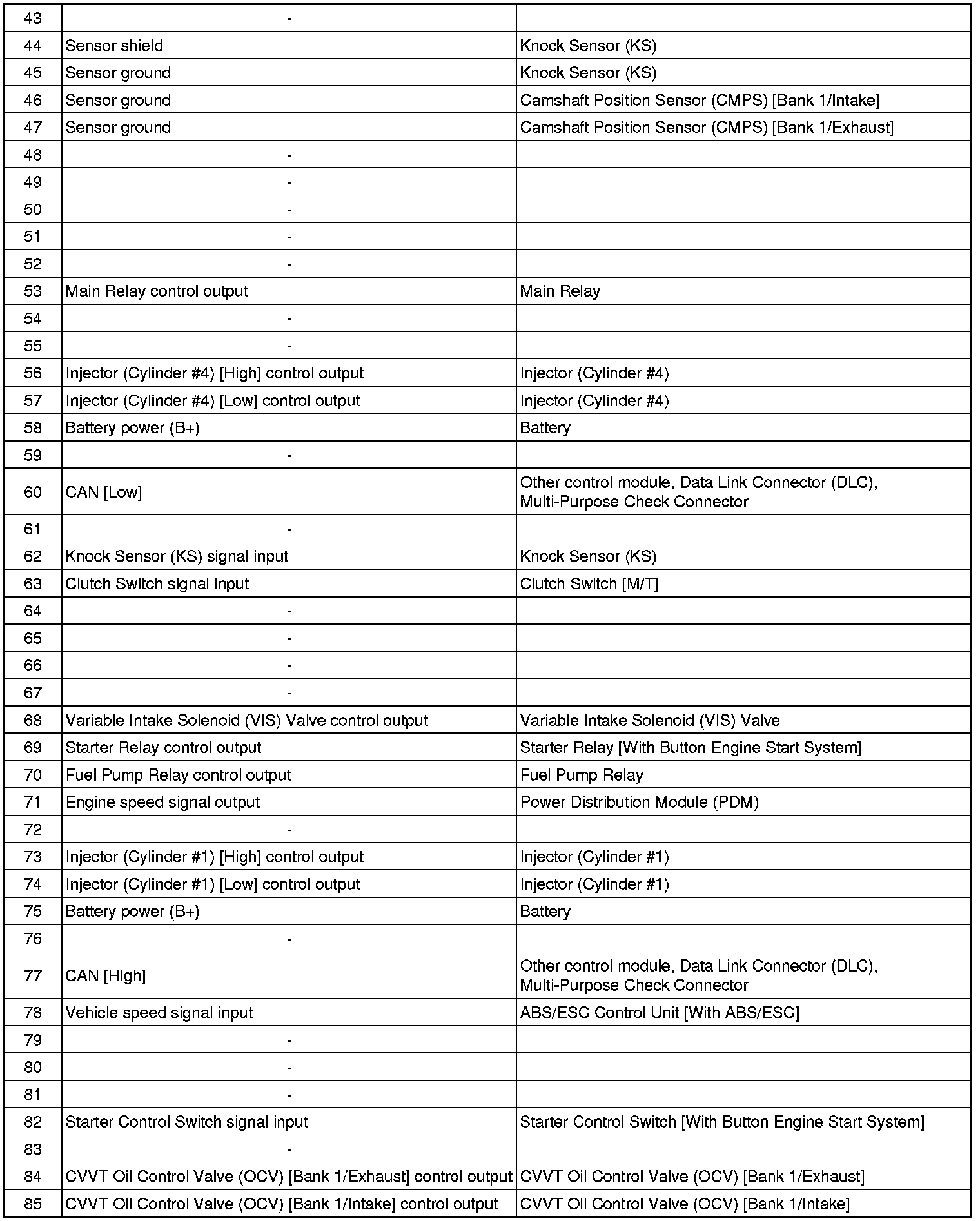

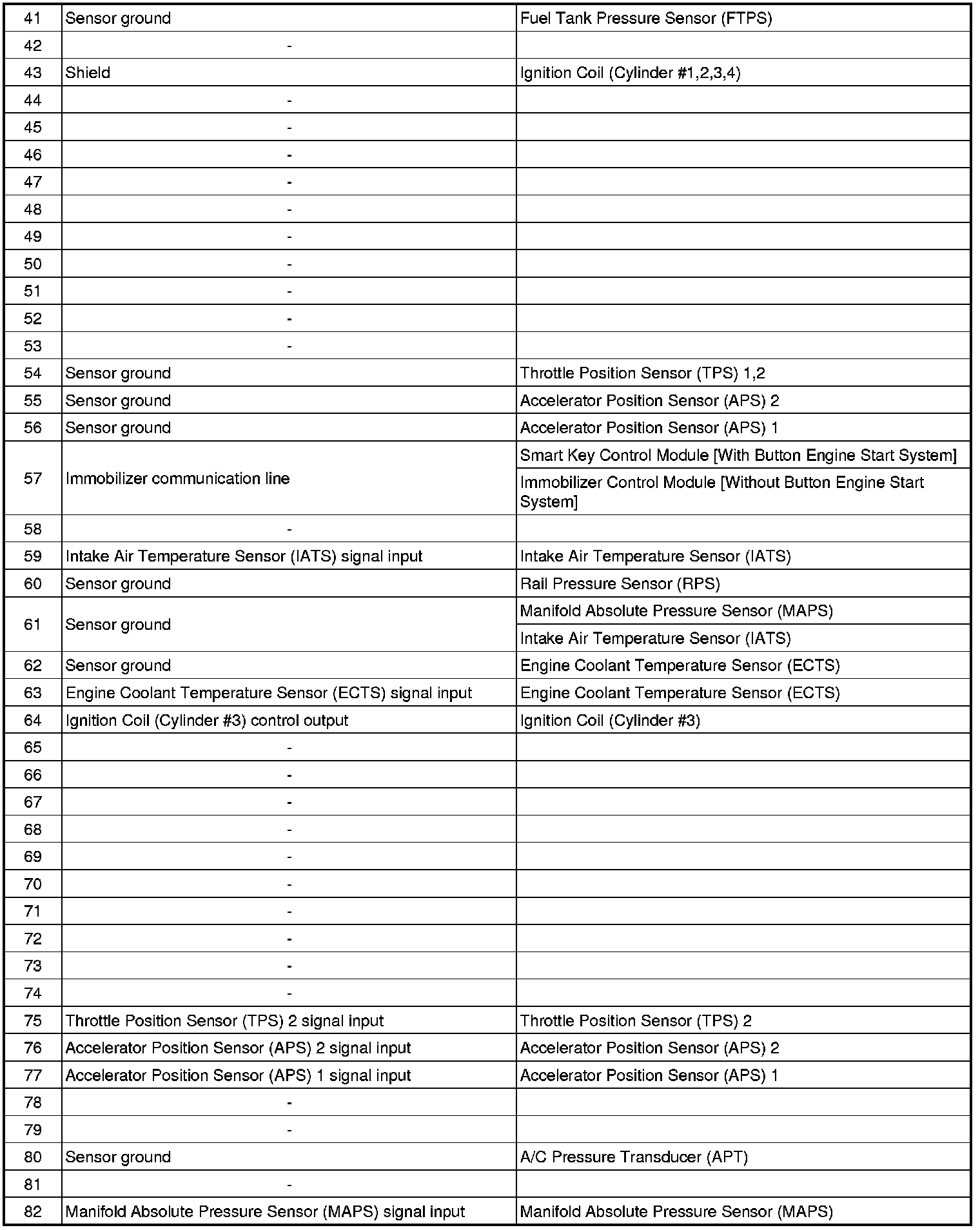

ECM Terminal Function

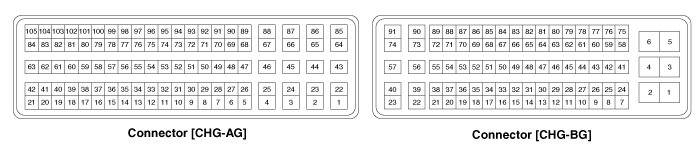

Connector [CHG-AG]













Connector [CHG-BG]

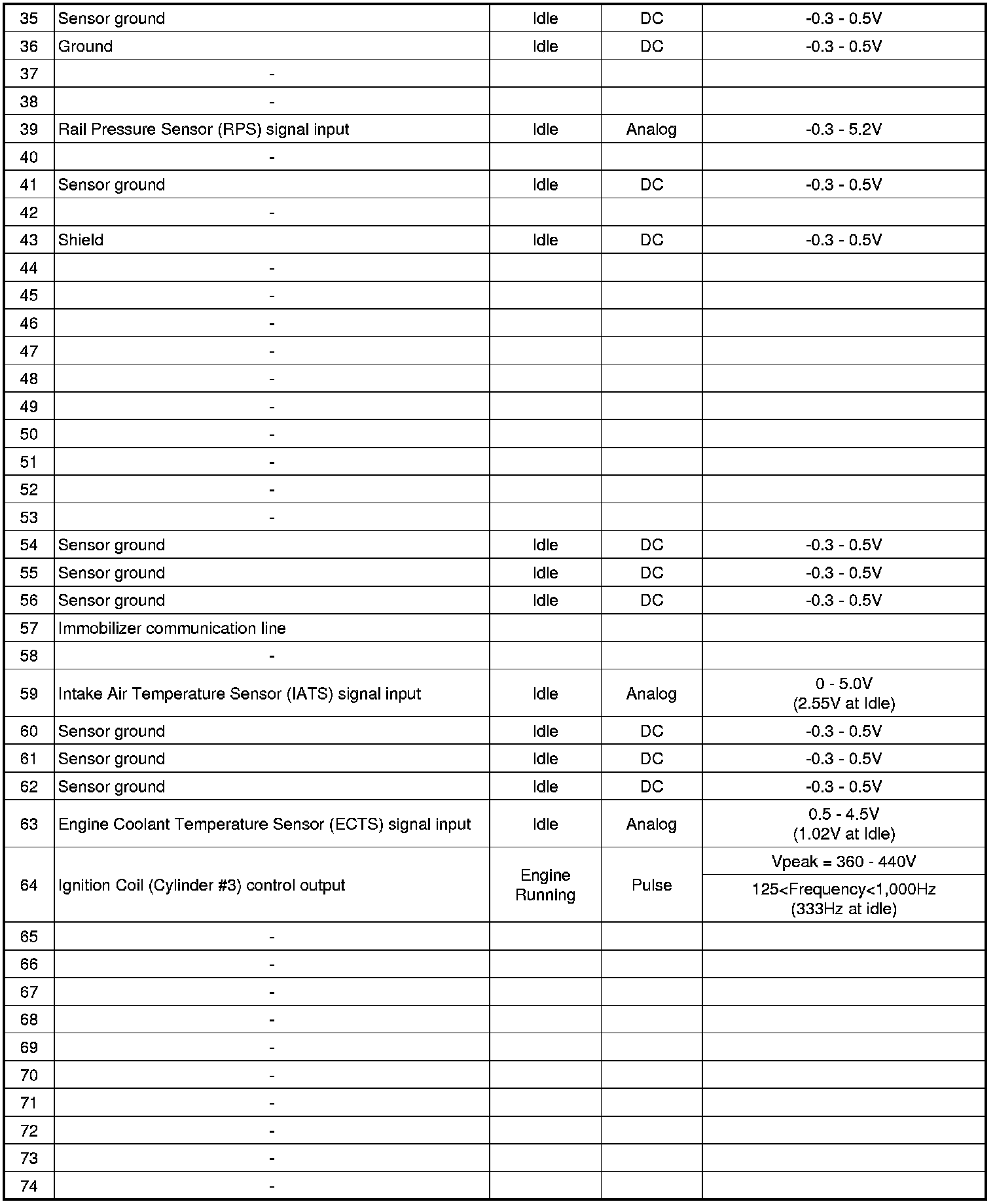

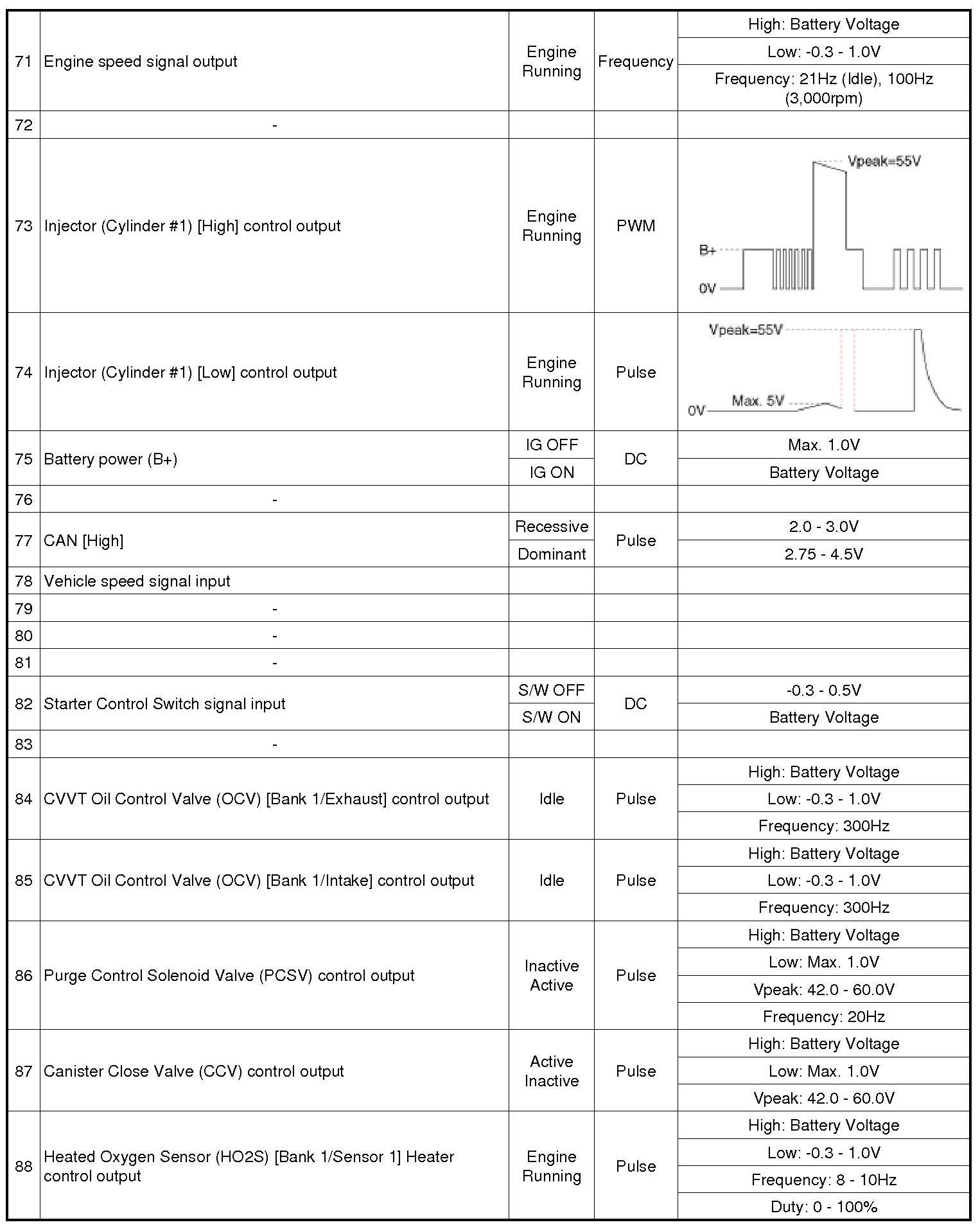

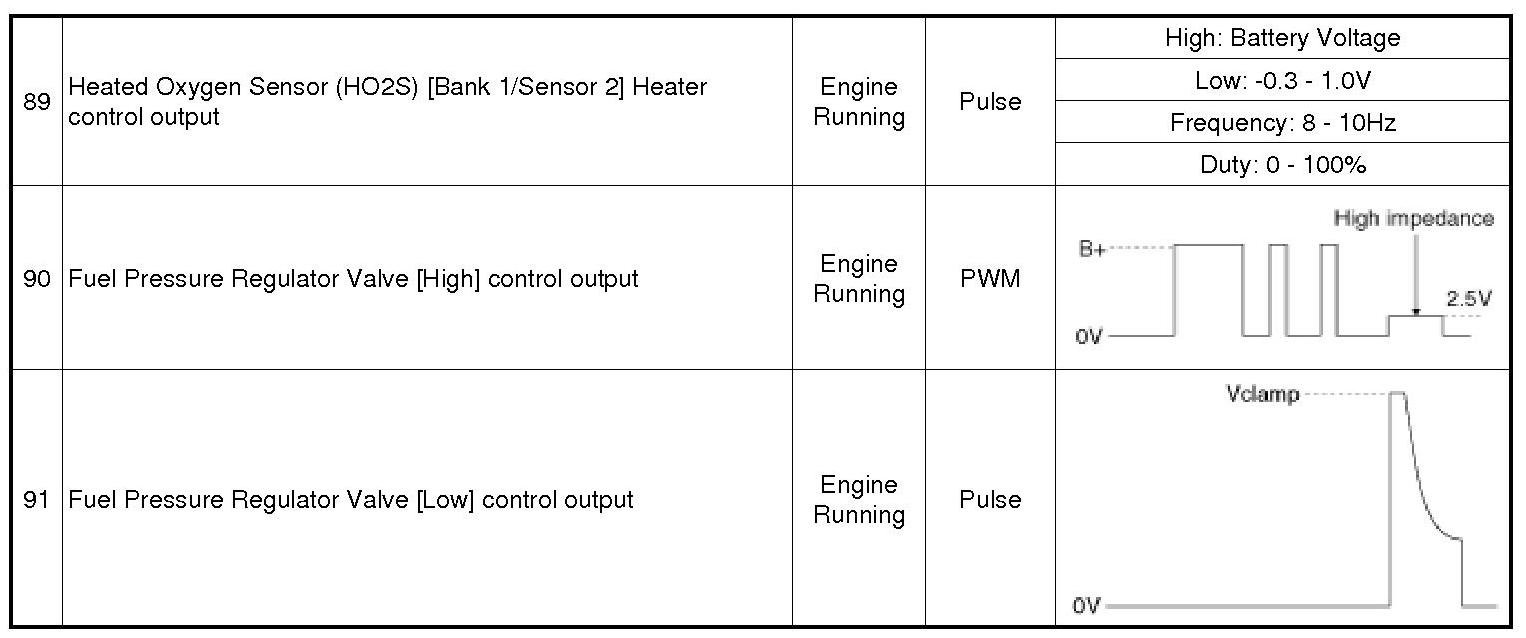

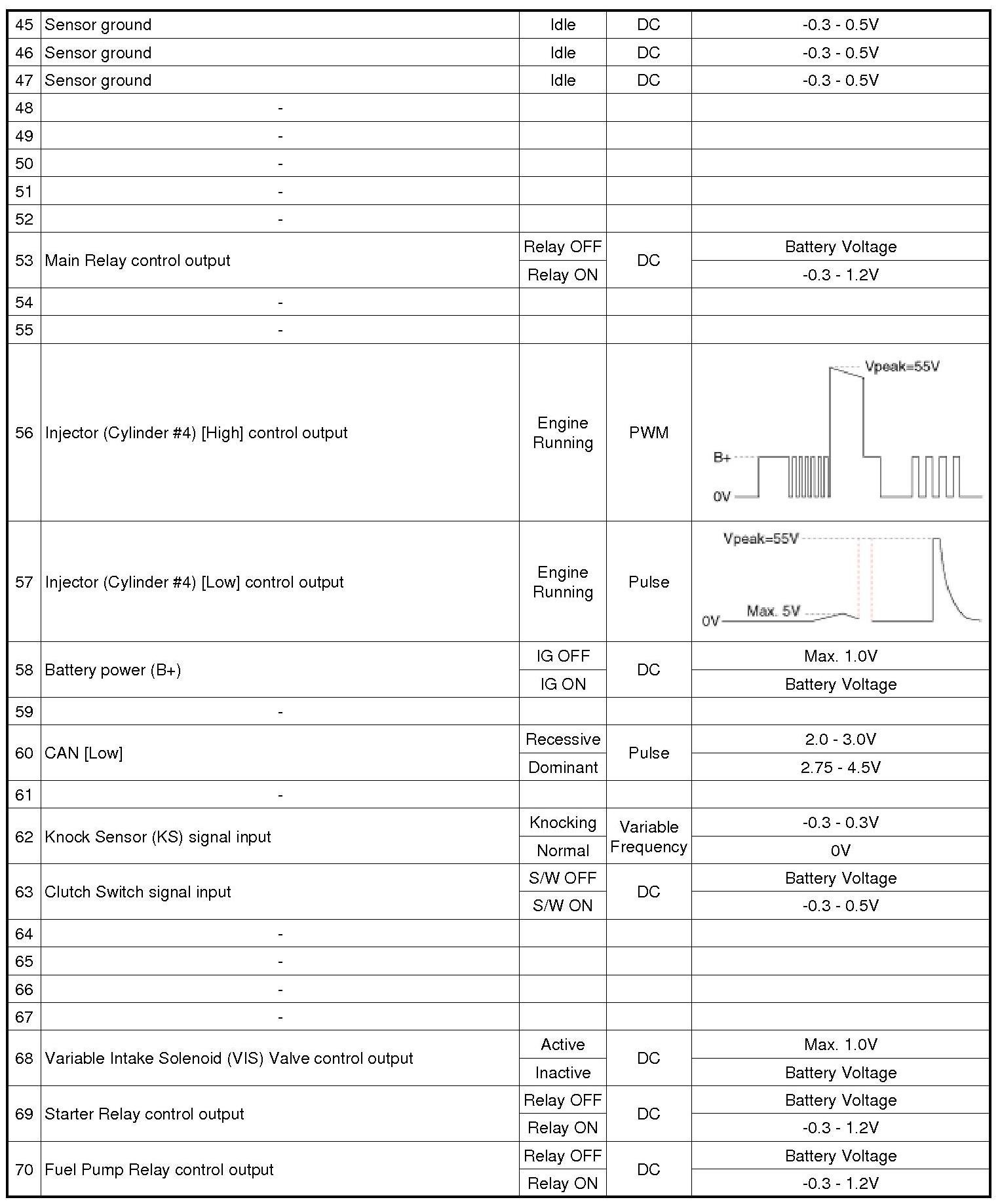

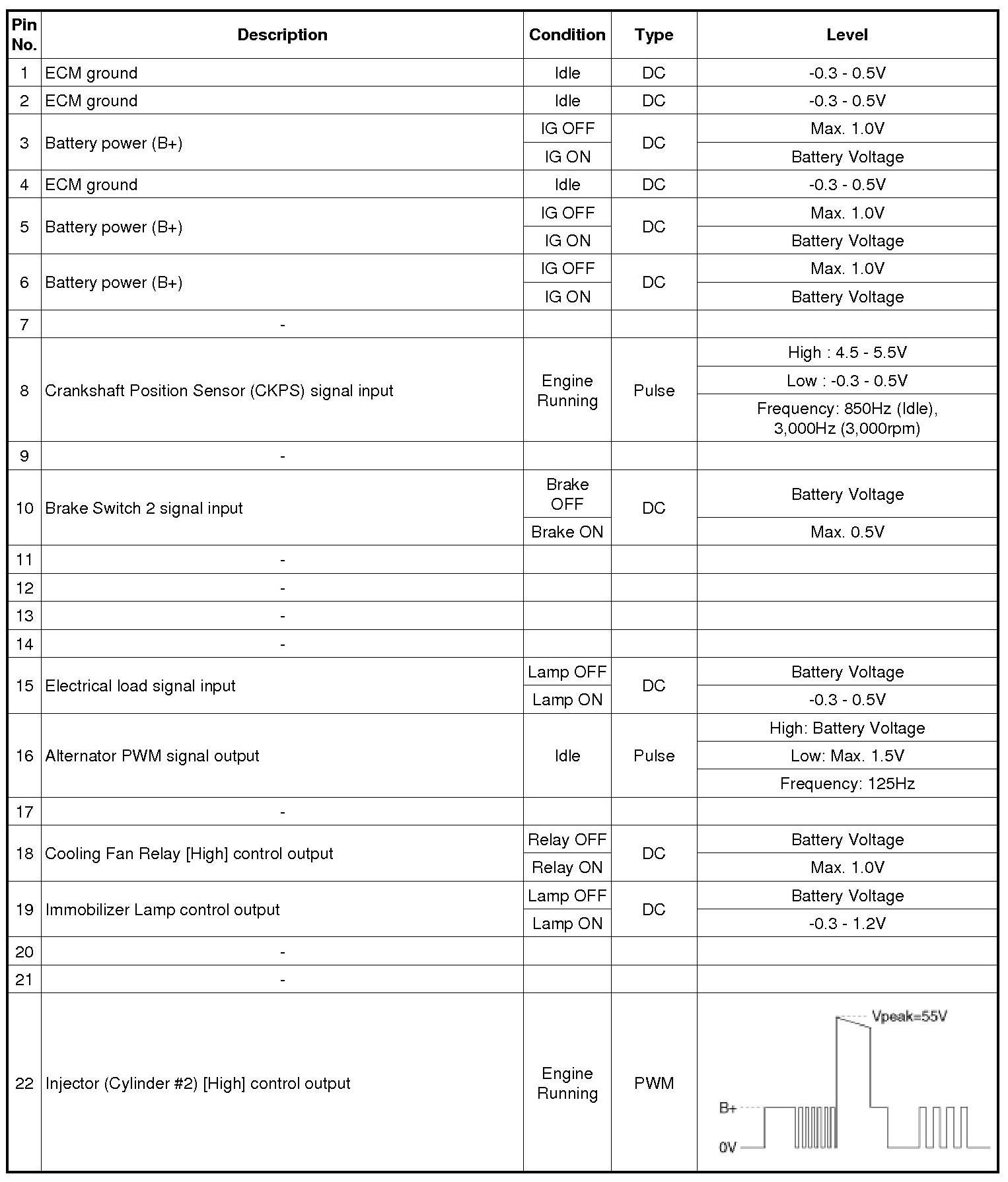

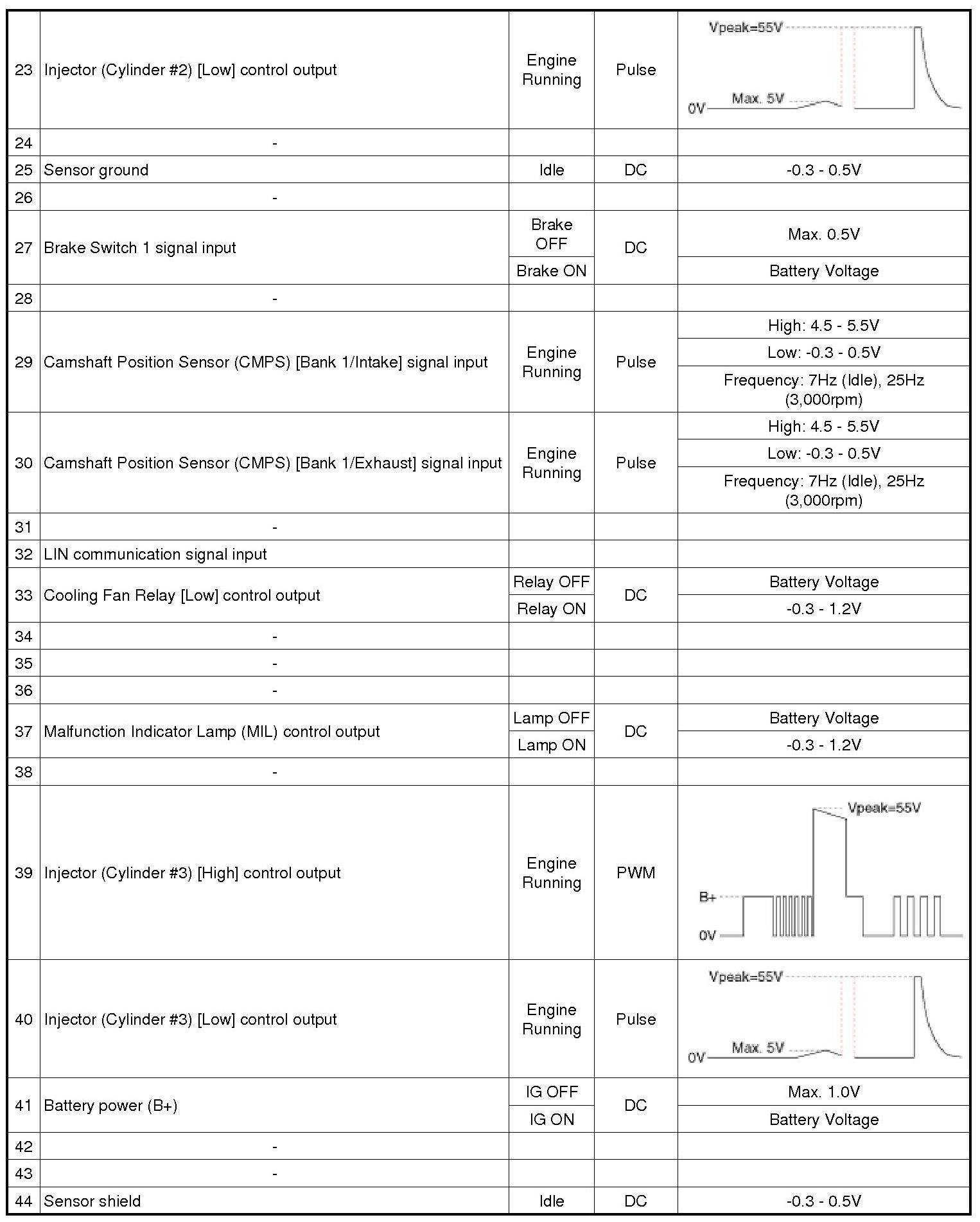

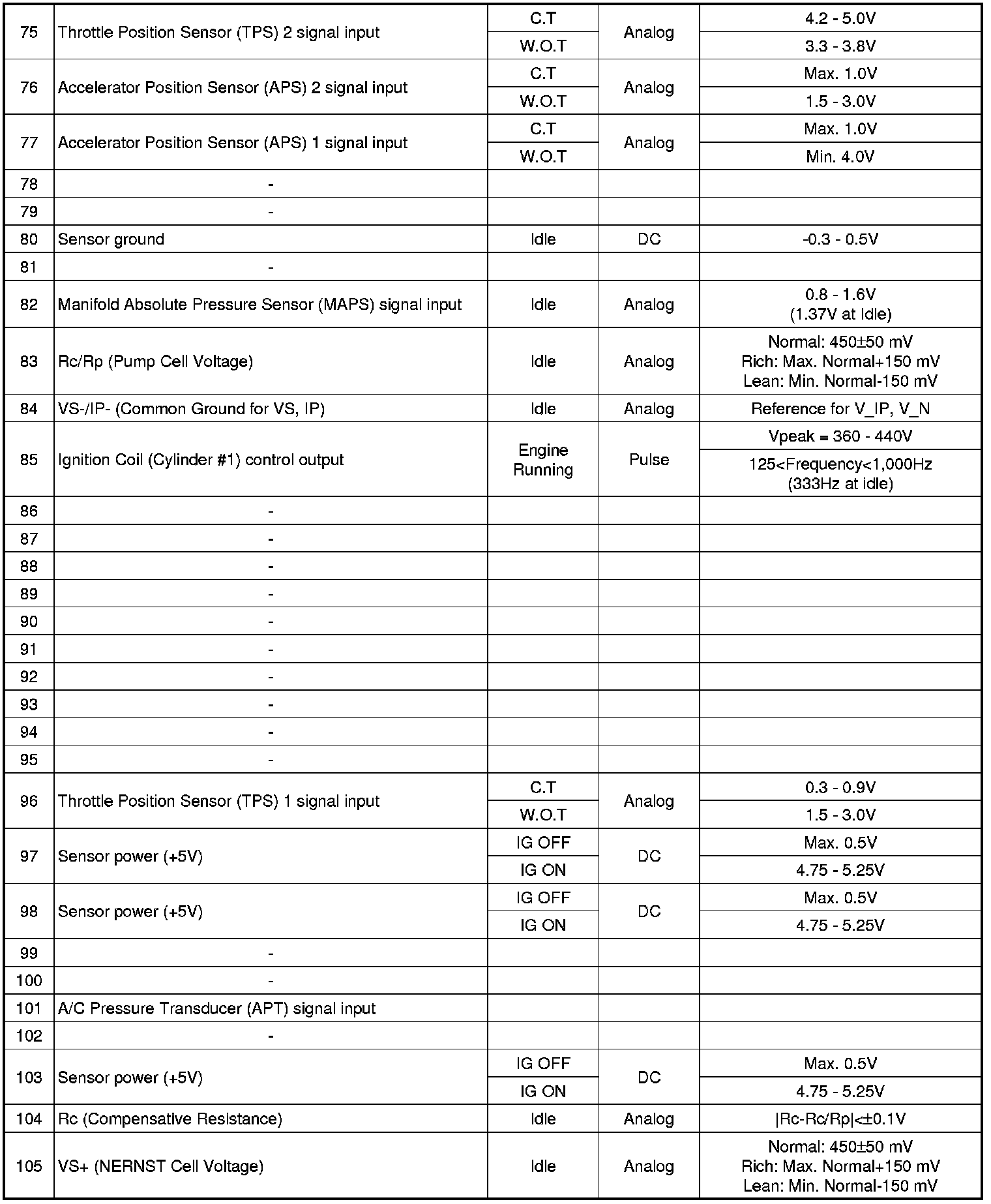

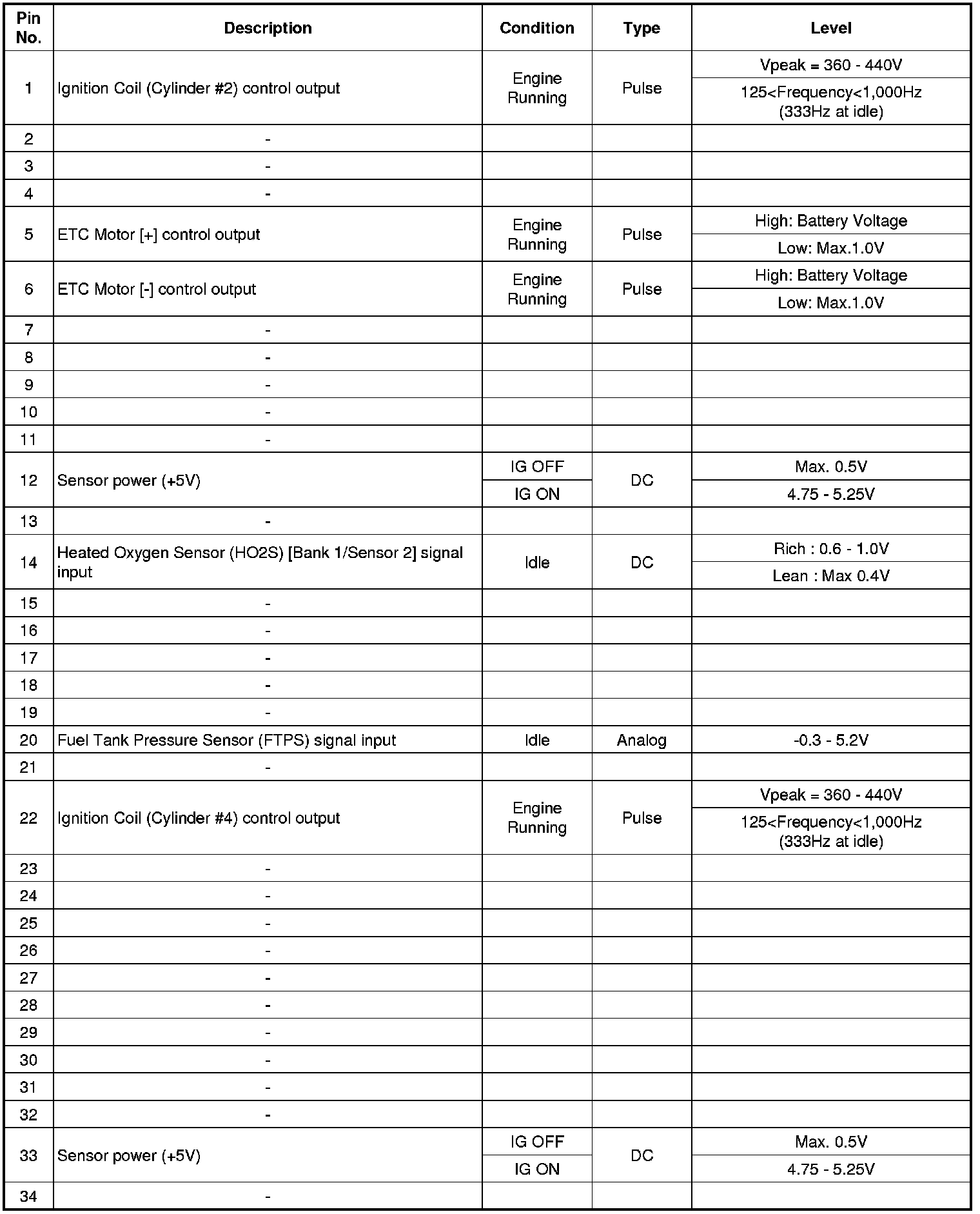

ECM Terminal Input/ Output signal
Connector [CHG-AG]













Connector [CHG-BG]

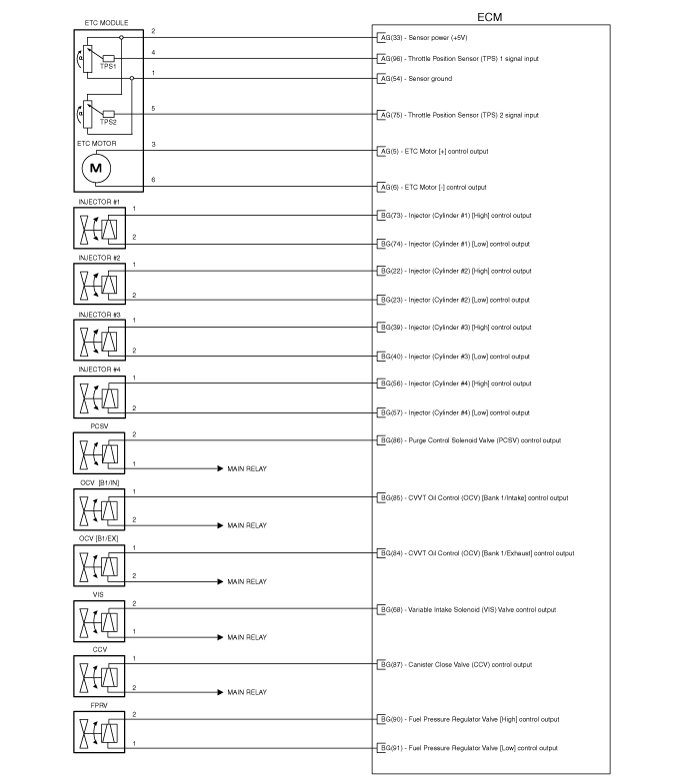

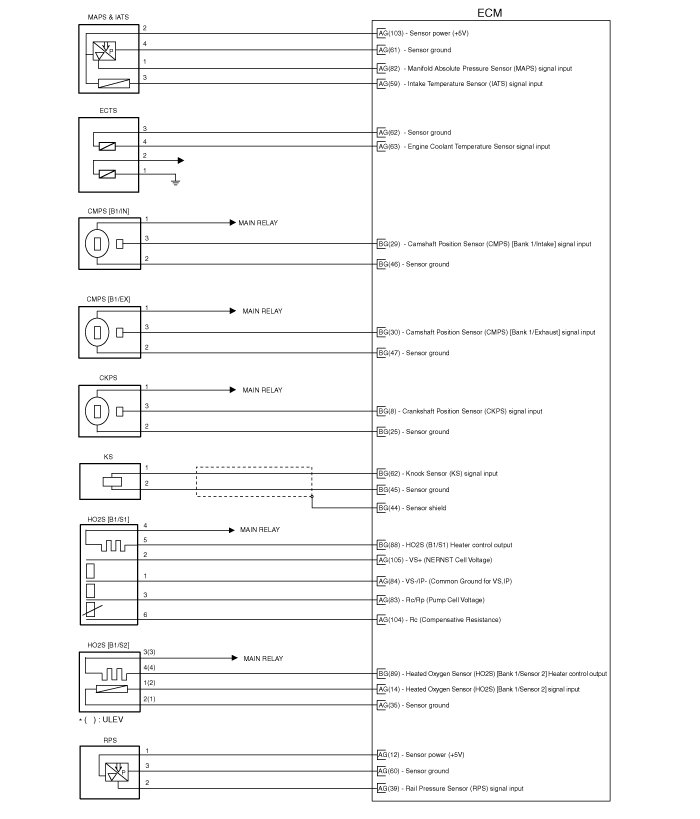

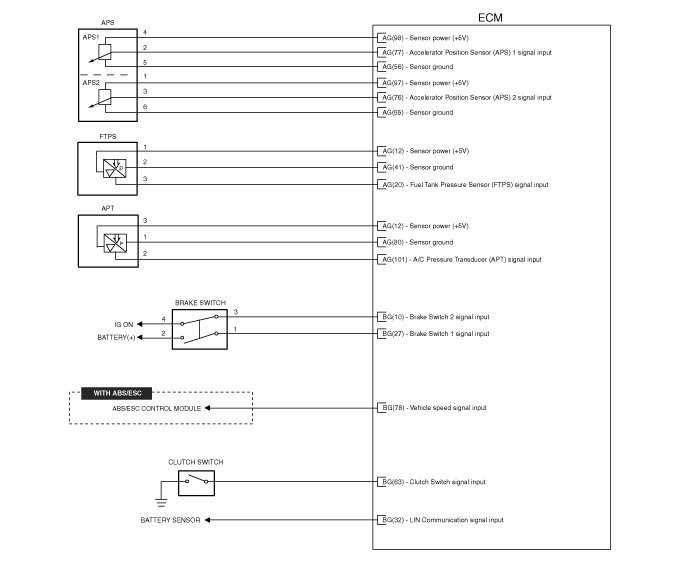

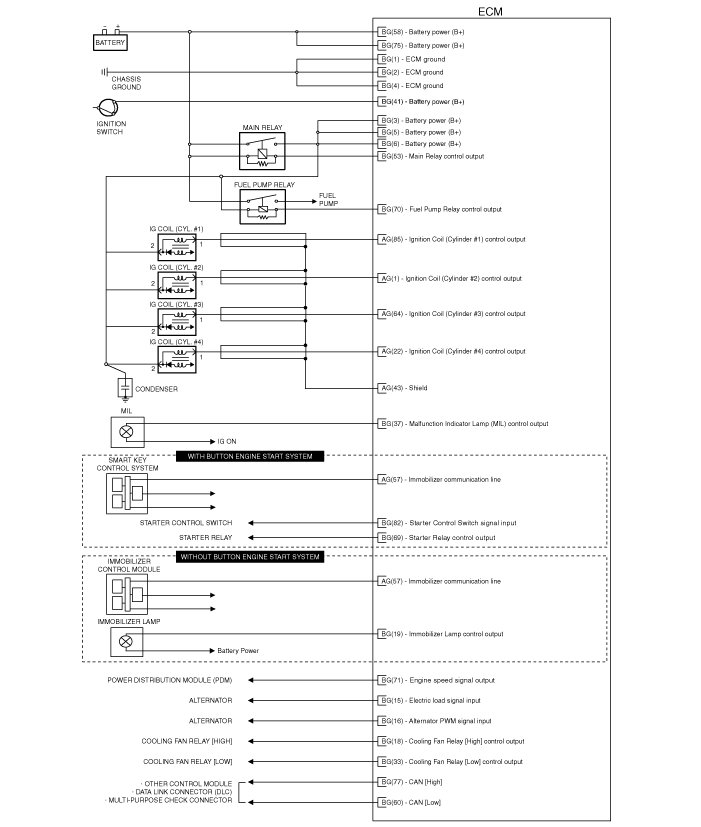

Circuit Diagram
