Components Location

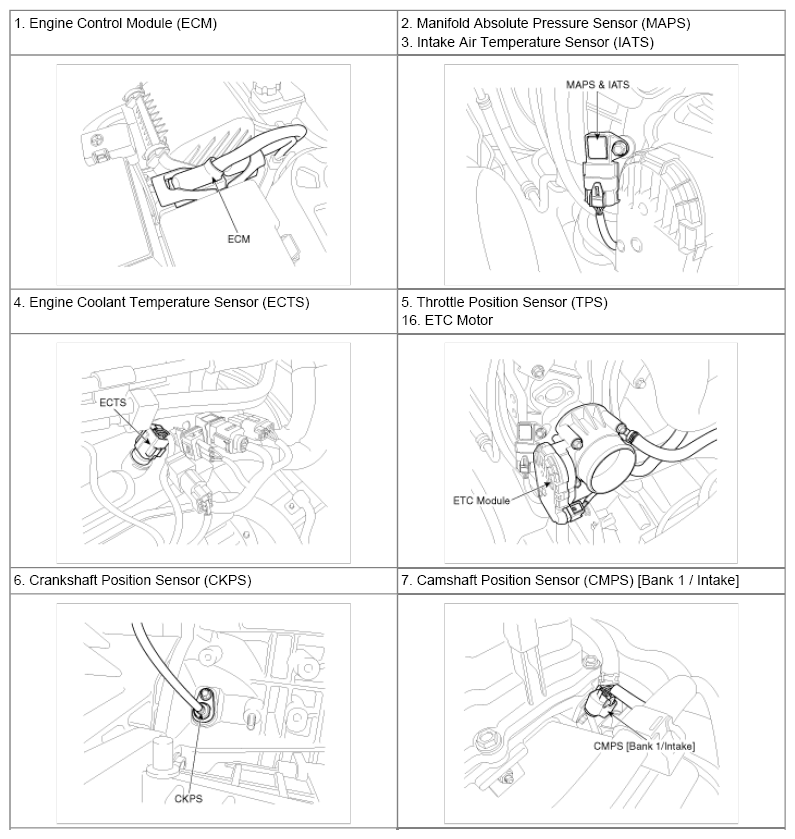

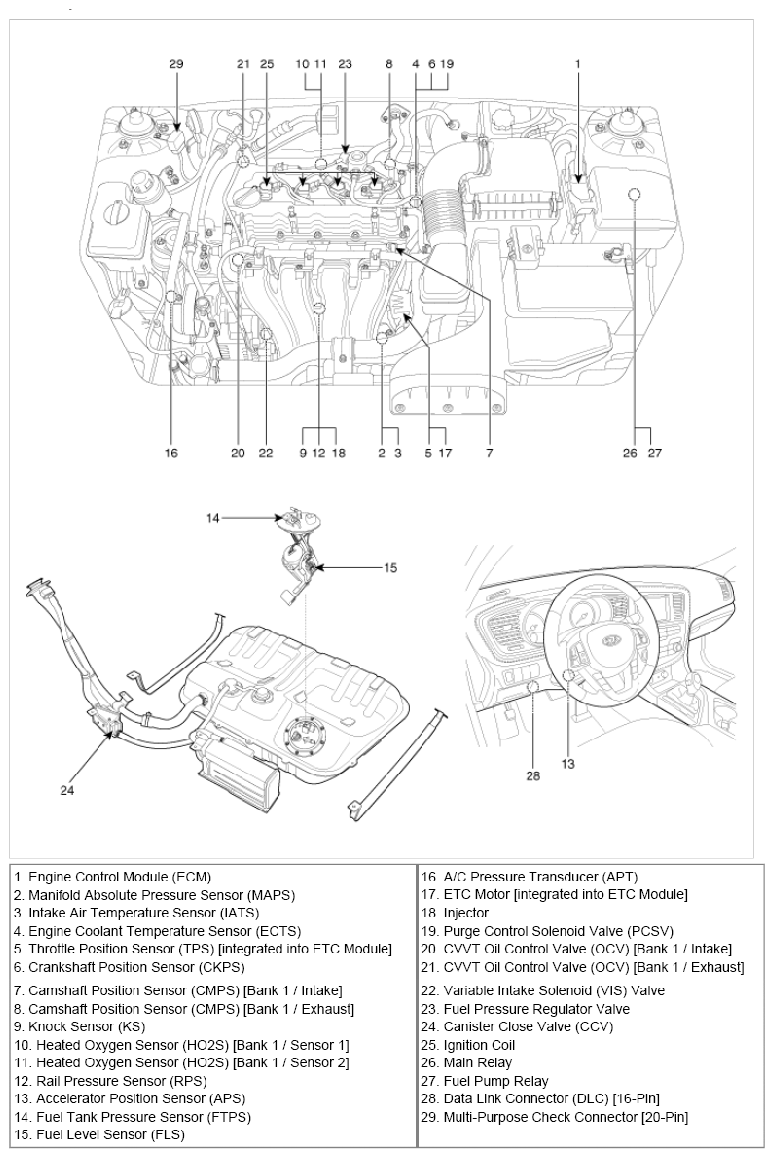

Fig 1: Identifying Engine Control Module Components (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

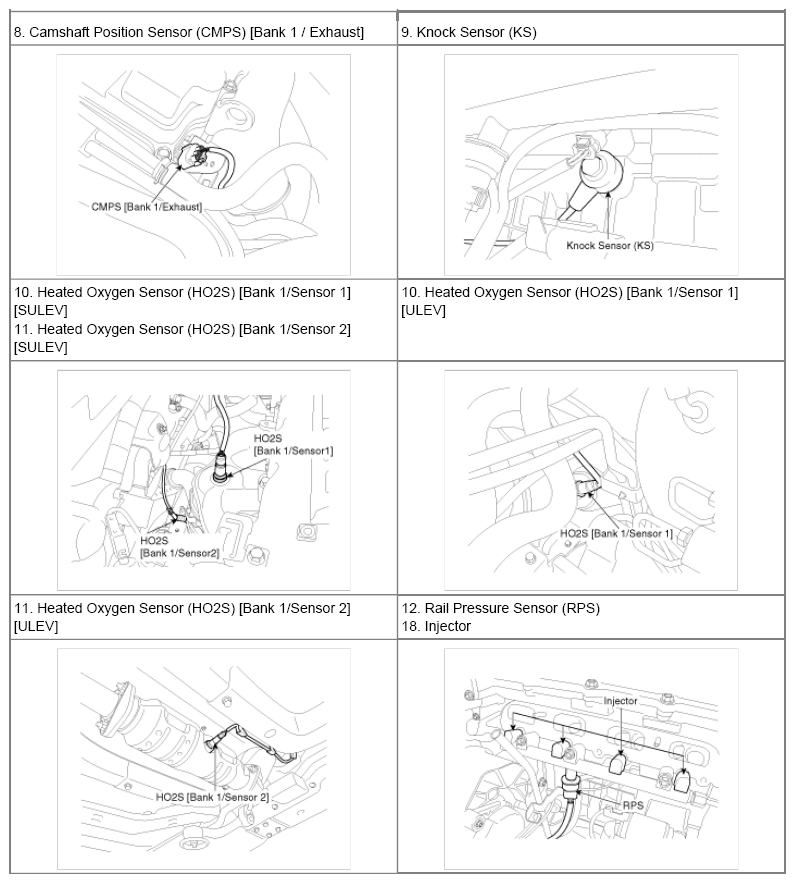

Fig 2: Identifying Engine Control Module Components (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Engine Control Module Components (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Engine Control Module Components (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

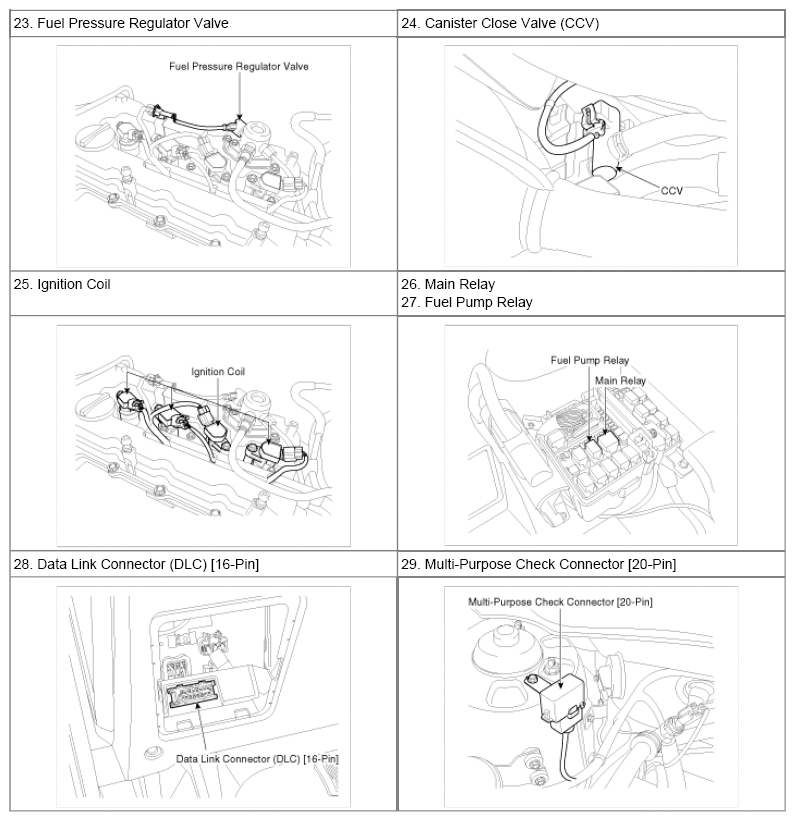

Fig 5: Identifying Engine Control Module Components (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
