Signal Waveform

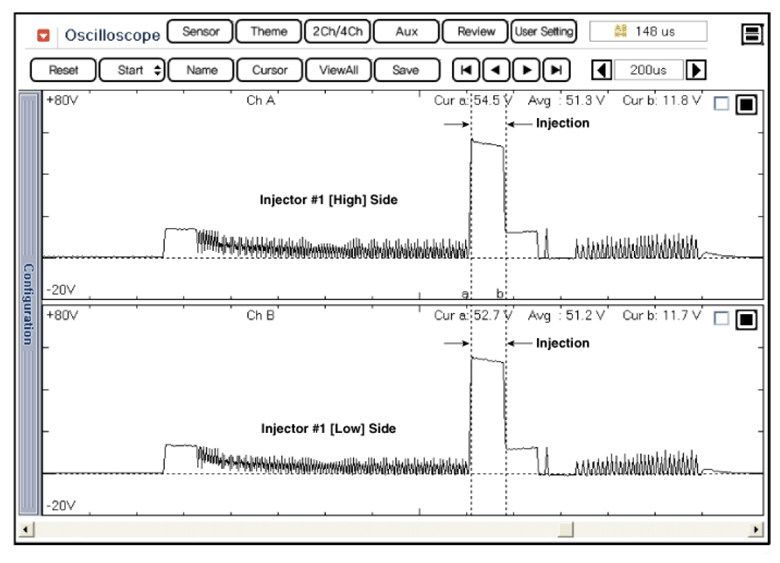

Fig 1: Injector Signal Waveform (1 Of 2)
G07381694Courtesy of KIA MOTORS AMERICA, INC.

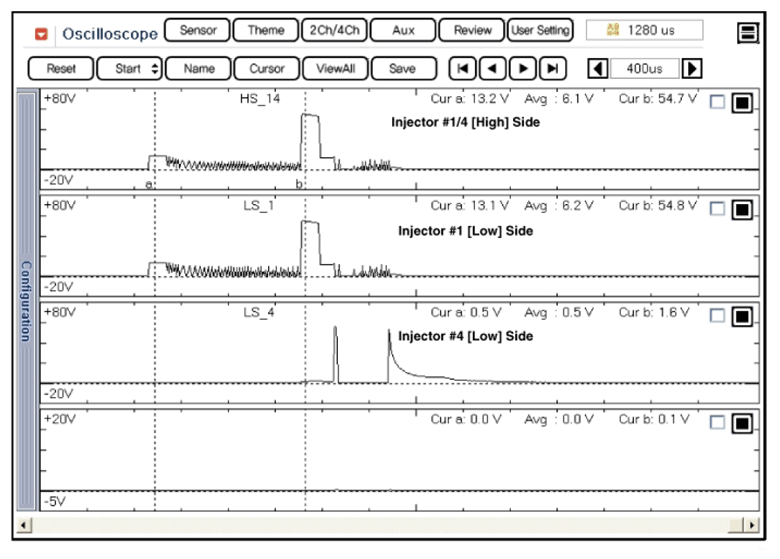

Fig 2: Injector Signal Waveform (2 Of 2)
G07381695Courtesy of KIA MOTORS AMERICA, INC.
