Electric WGT Control Actuator: Specification

EWGA Position Sensor

VOLTAGE SPECIFICATION CHART

Position	Output Voltage (V)	Operating Angle (°)	Range of Rod (mm), reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	4.2	12	1.8
Electrical Open end stop Position (EOP)	1	79	16
Mechanical Open end stop Position (MOP)	0.5	90	18

Fig 1: Identifying ECP, MCP, EOP & MOP

Courtesy of KIA MOTORS AMERICA, INC.

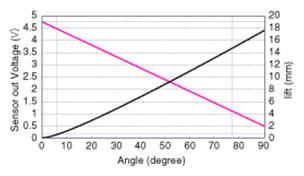

Fig 2: EWGA Position Sensor Output Voltage Graph

Courtesy of KIA MOTORS AMERICA, INC.

EWGA DC Motor

ITEM SPECIFICATION CHART

Item	Specification
Coil Resistance (Ω)	1.48 ~ 1.96 (21°C (69.8°F))
