Repair procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the power window relay from the junction box.
  3. Check for continuity between the terminals.
  4. There should be continuity between the No. 1 and No. 4 terminals when power and ground are connected to the No. 2 and No. 3 terminals.
  5. There should be no continuity between the No. 1 and No. 4 terminals when power is disconnected.

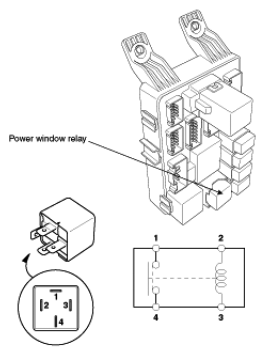

    Fig 1: Power Window Relay Circuit
    G06832235Courtesy of KIA MOTORS AMERICA, INC.

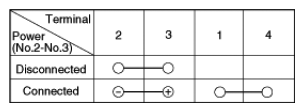

    Fig 2: Power Window Relay Terminal Continuity Chart
    G06832236Courtesy of KIA MOTORS AMERICA, INC.
