Assist/Rear Power Window Switch

Disconnect the negative (-) battery terminal.
Remove the door trim panel. (Refer to REAR DOOR .
Disconnect the 7P connector from the switch.

Fig 1: Identifying Switch 7P Connector Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

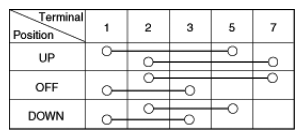

Fig 2: Assist/Rear Power Window Switch Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
