Components and Components Location: Component

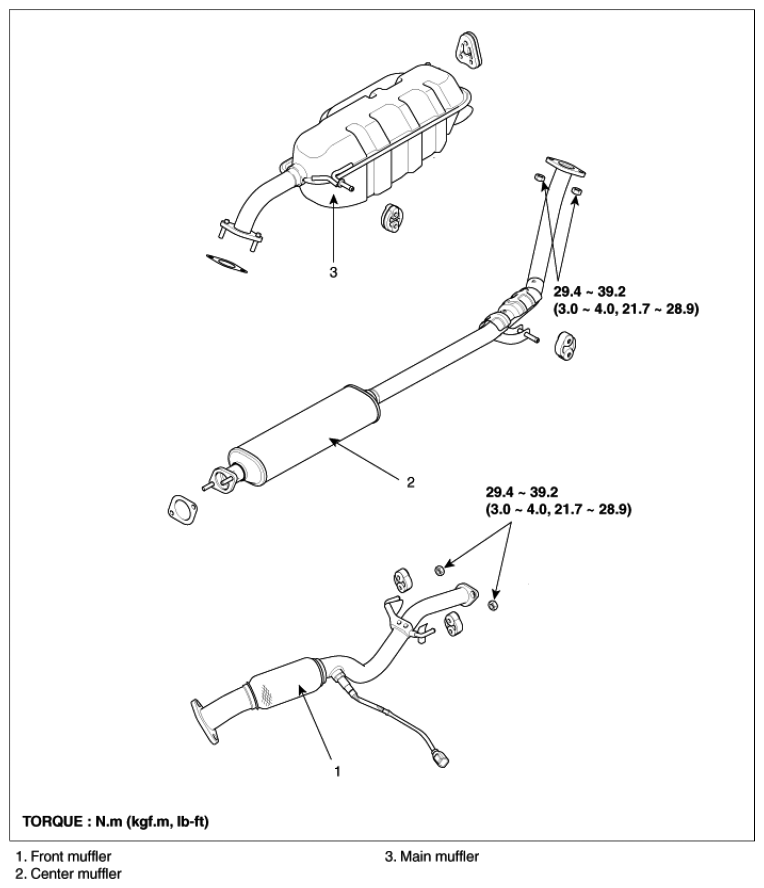

Fig 1: Front Muffler, Center Muffler And Main Muffler With Torque Specification
G06831850Courtesy of KIA MOTORS AMERICA, INC.
