Components and Components Location: Component

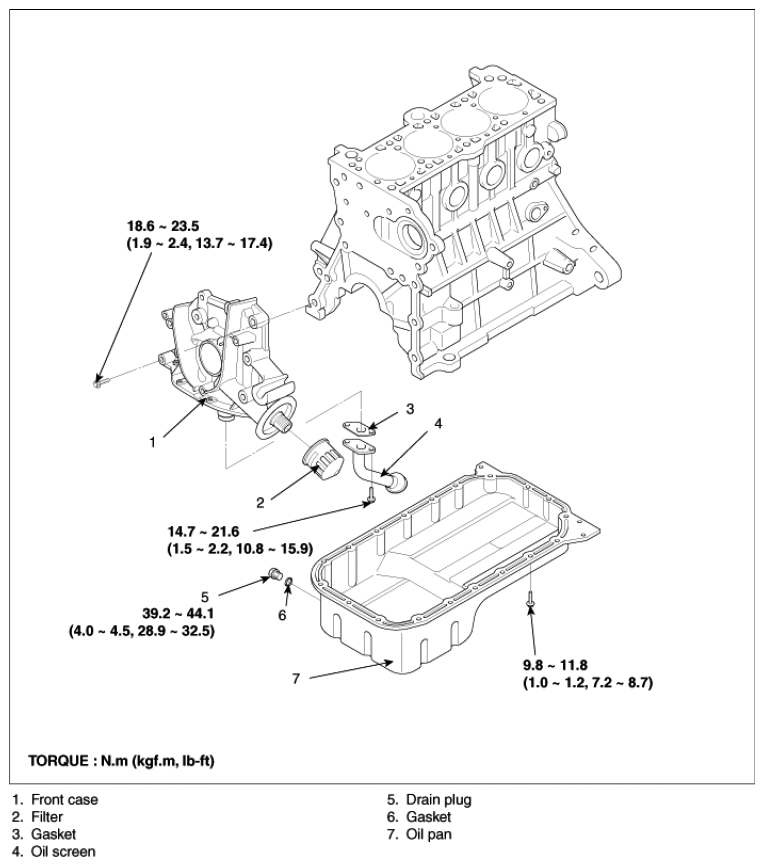

Fig 1: Lubrication System Replacement Components With Torque Specifications (1 Of 2)
G06828622Courtesy of KIA MOTORS AMERICA, INC.

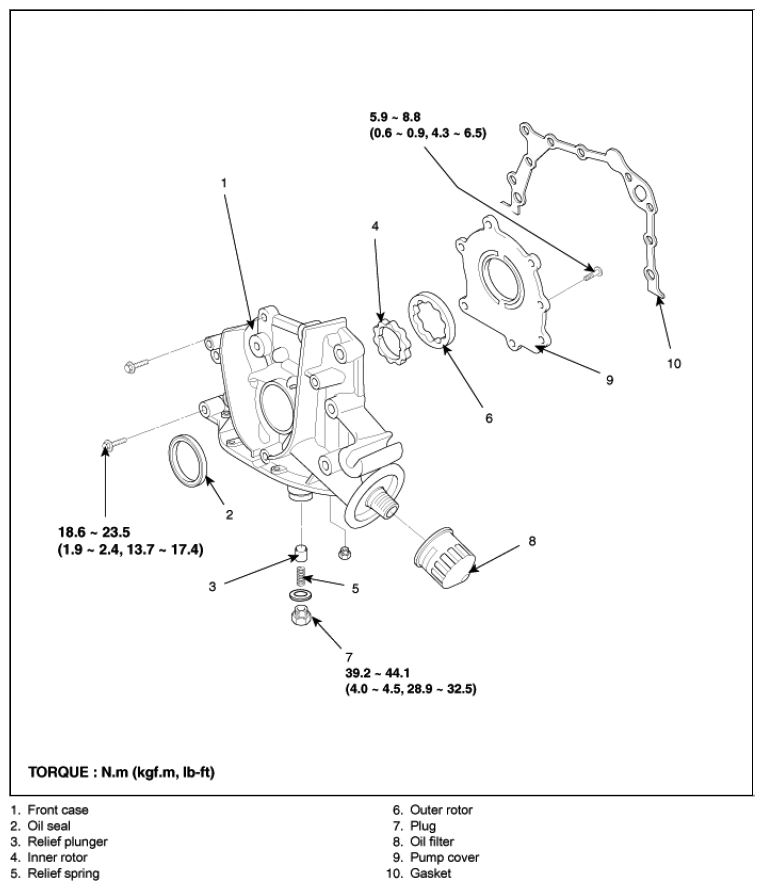

Fig 2: Lubrication System Replacement Components With Torque Specifications (2 Of 2)
G06828623Courtesy of KIA MOTORS AMERICA, INC.
