Pcm (Powertrain Control Module)
- PCM HARNESS CONNECTOR (A/T)
- PCM TERMINAL FUNCTION (A/T)

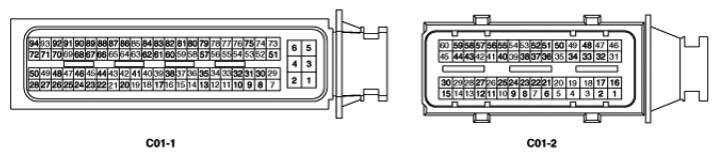

CONNECTOR [C01-1]
CONNECTOR (C01-1) DESCRIPTIONPin Description Connected to 1 Ground Chassis Ground 2 Ground Chassis Ground 3 Ground Chassis Ground 4 For Autotransaxle Control 5 For Autotransaxle Control 6 Batter voltage supply after main relay Main Relay 7 - 8 Sensor ground MAPS & IATS 9 Sensor ground Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2]10 Manifold Absolute Pressure Sensor (MAPS) signal input Manifold Absolute Pressure Sensor (MAPS) 11 - 12 - 13 Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2] signal inputHeated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2]14 - 15 - 16 - 17 Load signal input (Defrost) Defrost Relay 18 - 19 - 20 Vehicle speed signal input ABS Control Module [with ABS] 21 - 22 Load Signal input (Head Lamp) Multi Function Switch 23 A/C switch signal input A/C Control Module 24 Ground (For Autotransaxle) Chassis Ground 25 Ground (For Autotransaxle) Chassis Ground 26 For Autotransaxle Control 27 For Autotransaxle Control 28 - 29 Sensor ground Fuel Tank Pressure Sensor (FTPS) 30 Ground A/C Pressure Transducer 31 Sensor ground Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1]32 Intake Air Temperature Sensor (IATS) signal input Intake Air Temperature Sensor (IATS) 33 - 34 - 35 Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1] signal inputHeated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1]36 - 37 - 38 Sensor ground Camshaft Position Sensor (CMPS) 39 - 40 - 41 Camshaft Position Sensor (CMPS) signal input Camshaft Position Sensor (CMPS) 42 - 43 - 44 Load signal input (Power Steering) Power Steering Switch 45 - 46 A/C Pressure Switch signal input A/C Control Module 47 - 48 For Autotransaxle Control 49 - 50 For Autotransaxle Control 51 Sensor ground Throttle Position Sensor (TPS) 52 - 53 Fuel Level Sensor (FLS) signal input Fuel Level Sensor (FLS) 54 - 55 - 56 - 57 For Autotransaxle Control 58 - 59 - 60 For Autotransaxle Control 61 For Autotransaxle Control 62 For Autotransaxle Control 63 For Autotransaxle Control 64 For Autotransaxle Control 65 For Autotransaxle Control 66 For Autotransaxle Control 67 For Autotransaxle Control 68 For Autotransaxle Control 69 - 70 For Autotransaxle Control 71 For Autotransaxle Control 72 For Autotransaxle Control 73 Sensor ground Engine Coolant Temperature Sensor (ECTS) 74 - 75 Throttle Position Senosr (TPS) signal input Throttle Position Senosr (TPS) 76 - 77 Engine Coolant Temperature Sensor (ECTS) signal input Engine Coolant Temperature Sensor (ECTS) 78 - 79 A/C Pressure Transducer signal input A/C Pressure Transducer 80 For Autotransaxle Control 81 For Autotransaxle Control 82 For Autotransaxle Control 83 For Autotransaxle Control 84 For Autotransaxle Control 85 - 86 - 87 For Autotransaxle Control 88 For Autotransaxle Control 89 For Autotransaxle Control 90 For Autotransaxle Control 91 For Autotransaxle Control 92 For Autotransaxle Control 93 - 94 For Autotransaxle Control CONNECTOR [C01-2]
CONNECTOR (C01-2) DESCRIPTIONPin Description Connected to 1 Ignition Coil (Cylinder #2) control output Ignition Coil (Cylinder #2) 2 Ignition Coil (Cylinder #4) control output Ignition Coil (Cylinder #4) 3 Fuel Tank Pressure Sensor (FTPS) signal input Fuel Tank Pressure Sensor (FTPS) 4 - 5 - 6 Idle Speed Control Actuator (ISCA) [OPEN] control output Idle Speed Control Actuator (ISCA) 7 Fuel Filler Cap "OPEN" Lamp control output Fuel Filler Cap "OPEN" Lamp (Cluster) 8 Purge Control Solenoid Valve (PCSV) control output Purge Control Solenoid Valve (PCSV) 9 Main Relay control output Main Relay 10 - 11 Ignition switch signal input Ignition switch 12 CAN [High] Data Link Connector (DLC) 13 - 14 - 15 Knock Sensor [A] signal input Knock Sensor 16 Ignition Coil (Cylinder #3) control output Ignition coil (Cylinder #3) 17 Ignition Coil (Cylinder #1) control output Ignition Coil (Cylinder #1) 18 - 19 - 20 - 21 Cooling Fan [Low] control output Radiator Fan Relay 22 Idle Speed Control Actuator (ISCA) [CLOSE] control output Idle Speed Control Actuator (ISCA) 23 Cooling Fan [High] control output Condenser Fan Relay 24 Fuel consumption signal output Trip computer 25 Engine speed signal output Tachometer (Cluster) 26 - 27 CAN [Low] Data Link Connector (DLC) 28 - 29 - 30 Knock Sensor [B] signal input Knock Sensor 31 - 32 Immobilizer Lamp control output Immobilizer Lamp (Cluster) 33 HO2S [Bank 1/Sensor 2] heater control output Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2]34 HO2S [Bank 1/Sensor 1] heater control output Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1]35 Canister Close Valve (CCV) control output 36 Injector (Cylinder #3) control output Injector (Cylinder #3) 37 Fuel Pump Relay output Fuel Pump Relay 38 A/C Compressor Relay control output A/C Compressor Relay 39 - 40 Crankshaft Position Sensor (CKPS) [A] signal input Crankshaft Position Sensor (CKPS) 41 - 42 Reference supply (+5V) Fuel Tank Pressure Sensor (FTPS) 43 Reference supply (+5V) Manifold Absolute Pressure Sensor (MAPS) 44 Immobilizer Communication Line Immobilizer Control Module 45 Wheel Speed Sensor (WSS) [+] signal input Wheel Speed Sensor (WSS) [Without ABS] 46 - 47 - 48 Injector (Cylinder #4) control output Injector (Cylinder #4) 49 CVVT Oil Control Valve (OCV) control output CVVT Oil Control Valve (OCV) 50 Injector (Cylinder #1) control output Injector (Cylinder #1) 51 Malfunction Indicator Lamp (MIL) control output Malfunction Indicator Lamp (Cluster) 52 Injector (Cylinder #2) control output Injector (Cylinder #2) 53 - 54 - 55 Crankshaft Position Sensor (CKPS) [B] signal input Crankshaft Position Sensor (CKPS) 56 Battery power Battery 57 Reference supply (+5V) A/C Pressure Transducer 58 Reference supply (+5V) Throttle Position Senosr (TPS) 59 - 60 Wheel Speed Sensor (WSS) [-] signal input Wheel Speed Sensor (WSS) [Without ABS] - PCM TERMINAL IN/OUT SIGNAL (A/T)
CONNECTOR [C01-1]
CONNECTOR (C01-1) DESCRIPTION
| Pin No. | Description | Condition | Type | Level | Test Result |
|---|---|---|---|---|---|
| 1 | Ground | Idle | DC | Max. 50mV | 0.0V |
| 2 | Ground | Idle | DC | Max. 50mV | 2.4mV |
| 3 | Ground | Idle | DC | Max. 50mV | 1.8mV |
| 4 | For Autotransaxle Control | ||||
| 5 | For Autotransaxle Control | ||||
| 6 | Batter voltage supply after main relay | IG OFF | DC | Max. 1.0V | 0V |
| IG ON | Battery Voltage | 12.81V | |||
| 7 | - | ||||
| 8 | Sensor ground | Idle | DC | Max. 50mV | 13.2mV |
| 9 | Sensor ground | Idle | DC | Max. 50mV | 8.9mV |
| 10 | Manifold Absolute Pressure Sensor (MAPS) signal input | IG ON | Analog | 3.9 ~ 4.1V | 4.05V |
| Idle | 0.8 ~ 1.6V | 1.55V | |||
| 11 | - | ||||
| 12 | - | ||||
| 13 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input | Racing | Analog | Rich: 0.6 ~ 1.0V | 872mV |
| Lean: Max. 0.4V | 155mV | ||||
| 14 | - | ||||
| 15 | - | ||||
| 16 | - | ||||
| 17 | Load signal input (Defrost) | S/W OFF | DC | Max. 0.5V | 0mV |
| S/W ON | Battery Voltage | 13.19V | |||
| 18 | - | ||||
| 19 | - | ||||
| 20 | Vehicle speed signal input [With ABS] | Vehicle Run | Pulse | HI : Min. 5.0V | 12.4V |
| LO : Max. 1.0V | 17mV | ||||
| 432Hz at 30kph | |||||
| 21 | - | ||||
| 22 | Load signal input (Head Lamp) | S/W OFF | DC | Battery Voltage | 12.96V |
| S/W ON | Max. 0.5V | 274mV | |||
| 23 | A/C switch signal input | S/W OFF | DC | Max. 1.0V | 10.6mV |
| S/W ON | Battery Voltage | 11.78V | |||
| 24 | Ground (For Autotransaxle) | Idle | DC | Max. 50mV | 2.1mV |
| 25 | Ground (For Autotransaxle) | Idle | DC | Max. 50mV | 1.8mV |
| 26 | For Autotransaxle Control | ||||
| 27 | For Autotransaxle Control | ||||
| 28 | - | ||||
| 29 | Sensor ground | Idle | DC | Max. 50 mV | 9.2 mV |
| 30 | Ground | Idle | DC | Max. 50mV | 8.7mV |
| 31 | Sensor ground | Idle | DC | Max. 50mV | 7.2mV |
| 32 | Intake Air Temperature Sensor (IATS) signal input | Idle | Analog | 0 ~ 5V | 1.89V at 35°C |
| 33 | - | ||||
| 34 | - | ||||
| 35 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] signal input | Racing | Analog | Rich : 0.6 ~ 1.0V | 880mV |
| Lean : Max. 0.4V | 208mV | ||||
| 36 | - | ||||
| 37 | - | ||||
| 38 | Sensor ground | Idle | DC | Max. 50mV | 3.7mV |
| 39 | - | ||||
| 40 | - | ||||
| 41 | Camshaft Position Sensor (CMPS) signal input | Idle | Pulse | HI : Battery Voltage | 13.86V |
| LO : Max. 0.5V | 450mV | ||||
| 42 | - | ||||
| 43 | - | ||||
| 44 | Load signal input (Power Steering) | S/W ON | DC | Battery Voltage | 11.81V |
| S/W OFF | Max. 0.5V | 351mV | |||
| 45 | - | ||||
| 46 | A/C Pressure Switch signal input | S/W OFF | DC | Max. 1.0V | 0.0mV |
| S/W ON | Battery Voltage | 12.77V | |||
| 47 | - | ||||
| 48 | For Autotransaxle Control | ||||
| 49 | - | ||||
| 50 | For Autotransaxle Control | ||||
| 51 | Sensor ground | Idle | DC | Max. 50mV | 6.8mV |
| 52 | - | ||||
| 53 | Fuel Level Sensor (FLS) signal input | IG ON | DC | 0 ~ Battery Voltage | 2.14V |
| 54 | - | ||||
| 55 | - | ||||
| 56 | - | ||||
| 57 | For Autotransaxle Control | ||||
| 58 | - | ||||
| 59 | - | ||||
| 60 | For Autotransaxle Control | ||||
| 61 | For Autotransaxle Control | ||||
| 62 | For Autotransaxle Control | ||||
| 63 | For Autotransaxle Control | ||||
| 64 | For Autotransaxle Control | ||||
| 65 | For Autotransaxle Control | ||||
| 66 | For Autotransaxle Control | ||||
| 67 | For Autotransaxle Control | ||||
| 68 | For Autotransaxle Control | ||||
| 69 | - | ||||
| 70 | For Autotransaxle Control | ||||
| 71 | For Autotransaxle Control | ||||
| 72 | For Autotransaxle Control | ||||
| 73 | Sensor ground | Idle | DC | Max. 50mV | 2.1mV |
| 74 | - | ||||
| 75 | Throttle Position Senosr (TPS) signal input | C.T | Analog | 0.2 ~ 0.7V | 0.31V |
| W.O.T | Min. 4.0V | 4.21V | |||
| 76 | - | ||||
| 77 | Engine Coolant Temperature Sensor (ECTS) signal input | Idle | Analog | 0.5 ~ 4.5V | 0.85V at 95.1°C |
| 78 | - | ||||
| 79 | A/C Pressure Transducer signal input | A/C ON | Analog | Max. 4.8V | 2.51V |
| 80 | For Autotransaxle Control | ||||
| 81 | For Autotransaxle Control | ||||
| 82 | For Autotransaxle Control | ||||
| 83 | For Autotransaxle Control | ||||
| 84 | For Autotransaxle Control | ||||
| 85 | - | ||||
| 86 | For Autotransaxle Control | ||||
| 87 | For Autotransaxle Control | ||||
| 88 | For Autotransaxle Control | ||||
| 89 | For Autotransaxle Control | ||||
| 90 | For Autotransaxle Control | ||||
| 91 | For Autotransaxle Control | ||||
| 92 | For Autotransaxle Control | ||||
| 93 | - | ||||
| 94 | For Autotransaxle Control |
CONNECTOR [C01-2]
CONNECTOR (C01-2) DESCRIPTION
| Pin No. | Description | Condition | Type | Level | Test Result |
|---|---|---|---|---|---|
| 1 | Ignition Coil (Cylinder #2) control output |
Idle | Pulse | 1st Voltage: 300~400V | 365V |
| ON Voltage: Max. 2V | 1.69V | ||||
| 5.0Hz | |||||
| 2 | Ignition Coil (Cylinder #4) control output |
Idle | Pulse | 1st Voltage: 300~400V | 362V |
| ON Voltage: Max. 2V | 1.69V | ||||
| 5.0Hz | |||||
| 3 | Fuel Tank Pressure Sensor (FTPS) signal input | Idle | DC | 0.4 ~ 4.6V | 2.45V |
| 4 | - | ||||
| 5 | - | ||||
| 6 | Idle Speed Control Actuator (ISCA) [OPEN] control output | Idle | Pulse | HI: Battery Voltage | 14.8V |
| LO: Max. 1.0V | 128mV | ||||
| 250Hz at duty 32.5% | |||||
| 7 | Fuel Filler camp "OPEN" Lamp control output | Lamp OFF | DC | Battery Voltage | |
| Lamp ON | Max 1.0V | ||||
| 8 | Purge Control Solenoid Valve (PCSV) control output | Active Inactive | Pulse | HI: Battery Voltage | 14.2V |
| LO: Max. 1.0V | 215mV | ||||
| Vpeak: Max. 70V | 45.2V | ||||
| 13.68Hz | |||||
| 9 | Main Relay control output | Relay OFF | DC | Battery Voltage | 12.97V |
| Relay ON | Max. 1.0V | 791mV | |||
| 10 | - | ||||
| 11 | Ignition switch signal input | IG OFF | DC | Max 0.5V | 2.8mV |
| IG ON | Battery Voltage | 12.18V | |||
| 12 | CAN [High] | Recessive | Pulse | 2.0 ~ 3.0V | 2.36V |
| Dominant | 2.75 ~ 4.5V | 3.44V | |||
| 13 | - | ||||
| 14 | - | ||||
| 15 | Knock Sensor [A] signal input | Knocking | Variable Frequency | ||
| Normal | |||||
| 16 | Ignition Coil (Cylinder #3) control output |
Idle | Pulse | 1st Voltage: 300 ~ 400V | 358V |
| ON Voltage : Max. 2V | 1.68V | ||||
| 5.0Hz | |||||
| 17 | Ignition Coil (Cylinder #1) control output |
Idle | Pulse | 1st Voltage: 300 ~ 400V | 349V |
| ON Voltage: Max. 2V | 1.68V | ||||
| 5.0Hz | |||||
| 18 | - | ||||
| 19 | - | ||||
| 20 | - | ||||
| 21 | Cooling Fan [Low] control output | Relay OFF | DC | Battery Voltage | 14.05V |
| Relay ON | Max. 1.0V | 52.1mV | |||
| 22 | Idle Speed Control Actuator (ISCA) [CLOSE] control output | Idle | Pulse | HI : Battery Voltage | 14.9V |
| LO : Max. 1.0V | 204mV | ||||
| 250Hz at duty 67.5% | |||||
| 23 | Cooling Fan [High] control output | Relay OFF | DC | Battery Voltage | 14.12V |
| Relay ON | Max. 1.0V | 198mV | |||
| 24 | Fuel consumption signal output | Idle | Pulse | HI: Battery Voltage | 13.9V |
| LO: Max. 0.5V | 16.1mV | ||||
| 25 | Engine speed signal output | Idle | Pulse | HI: Battery Voltage | 13.9V |
| LO: Max. 0.5V | 12.1mV | ||||
| 20 ~ 26Hz | 21.9Hz | ||||
| 26 | - | ||||
| 27 | CAN [Low] | Recessive | Pulse | 2.0 ~ 3.0V | 2.36V |
| Dominant | 0.5 ~ 2.25V | 1.44V | |||
| 28 | - | ||||
| 29 | - | ||||
| 30 | Knock Sensor [B] signal input | Knocking | Variable Frequency | ||
| Normal | |||||
| 31 | - | ||||
| 32 | Immobilizer Lamp control output | Lamp OFF | DC | Battery Voltage | 11.98V |
| Lamp ON | Max. 1.0V | 27mV | |||
| 33 | HO2S [Bank 1/Sensor 2] heater control output | Engine Run | Pulse (2Hz) | HI: Battery Voltage | 14.1V |
| LO: Max. 1.0V | 304mV | ||||
| 34 | HO2S [Bank 1/Sensor 1] heater control output | Engine Run | Pulse (2Hz) | HI: Battery Voltage | 14.1V |
| LO: Max. 1.0V | 326mV | ||||
| 35 | Canister Close Valve (CCV) control output | Active Inactive | Pulse | HI : Battery Voltage | 12.5V |
| LO : Max. 1.0V | 121V | ||||
| Vpeak : Max. 70V | 44.7V | ||||
| 36 | Injector (Cylinder #3) control output | Idle | Pulse (5.5Hz) | HI: Battery Voltage | 14.2V |
| LO: Max. 1.0V | 330mV | ||||
| Vpeak: Max. 80V | 69.6V | ||||
| 37 | Fuel Pump Relay output | Relay OFF | DC | Battery Voltage | 12.3V |
| Relay ON | Max. 1.0V | 30mV | |||
| 38 | A/C Compressor Relay control output | A/C OFF | DC | Battery Voltage | 14.32V |
| A/C ON | Max. 1.0V | 114mV | |||
| 39 | - | ||||
| 40 | Crankshaft Position Sensor (CKPS) [A] signal input | Idle | Sine Wave | Vp_p : Min. 1.0V | 8.44V |
| 718.4Hz | |||||
| 41 | - | ||||
| 42 | Reference Supply (+5V) | IG OFF | DC | Max. 0.5V | |
| IG ON | 4.9 ~ 5.1V | ||||
| 43 | Reference supply (+5V) | IG OFF | DC | Max. 0.5V | |
| IG ON | 4.9 ~ 5.1V | ||||
| 44 | Immobilizer Communication Line | When communication after IG ON | Pulse | HI: Min. 8.5V | 12.31V |
| LO: Max. 3.5V | 1.17V | ||||
| 45 | Wheel Speed Sensor (WSS) [+] signal input [Without ABS] | Vehicle Run | Sine Wave | Vp_p : Min. 0.2V | |
| 46 | - | ||||
| 47 | - | ||||
| 48 | Injector (Cylinder #4) control output | Idle | Pulse (5.5Hz) | HI: Battery Voltage | 14.2V |
| LO: Max. 1.0V | 330mV | ||||
| Vpeak: Max. 80V | 69.6V | ||||
| 49 | CVVT Oil Control Valve (OCV) control output | Idle | Pulse | HI: Battery Voltage | 14.9V |
| LO: Max. 1.0V | 36.2mV | ||||
| 300.26Hz at duty 6.1% | |||||
| 50 | Injector (Cylinder #1) control output | Idle | Pulse (5.5Hz) | HI: Battery Voltage | 14.2V |
| LO: Max. 1.0V | 330mV | ||||
| Vpeak: Max. 80V 69.6V | |||||
| 51 | Malfunction Indicator Lamp (MIL) control output | Lamp OFF | DC | Battery Voltage | 13.03V |
| Lamp ON | Max.1.0V | 716mV | |||
| 52 | Injector (Cylinder #2) control output | Idle | Pulse (5.5Hz) | HI: Battery Voltage | 13.6V |
| LO: Max. 1.0V | 340mV | ||||
| Vpeak: Max. 80V | 69.7V | ||||
| 53 | - | ||||
| 54 | - | ||||
| 55 | Crankshaft Position Sensor (CKPS) [B] signal input | Idle | Sine Wave | Vp_p: Min.1.0V | 8.44V |
| 718.4Hz | |||||
| 56 | Battery power | Always | DC | Battery Voltage | 12.91V |
| 57 | Reference supply (+5V) | IG OFF | DC | Max. 0.5V | 4.2mV |
| IG ON | 4.9 ~ 5.1V | 5.04V | |||
| 58 | Reference supply (+5V) | IG OFF | DC | Max. 0.5V | 0.0mV |
| IG ON | 4.9 ~ 5.1V | 5.04V | |||
| 59 | - | ||||
| 60 | Wheel Speed Sensor (WSS) [-] signal input [Without ABS] | Vehicle Run | Sine Wave | Vp-p: Min. 0.2V |
- ECM HARNESS CONNECTOR (M/T)
- ECM TERMINAL FUNCTION (M/T)

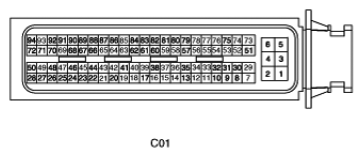

CONNECTOR [C01]
CONNECTOR (C01) DESCRIPTIONPin Description Connected to 1 Ignition Coil (Cylinder #1) control output Ignition Coil (Cylinder #1) 2 Ground Chassis Ground 3 Ignition Coil (Cylinder #3) control output Ignition Coil (Cylinder #3) 4 - 5 - 6 Batter voltage supply after main relay Main Relay 7 Ignition Coil (Cylinder #4) control output Ignition Coil (Cylinder #4) 8 A/C Pressure Switch signal input A/C Control Module 9 - 10 Load signal input (Power Steering) Power Steering Switch 11 Knock Sensor [A] signal input Knock Sensor 12 Sensor ground Throttle Position Senosr (TPS) 13 - 14 - 15 Sensor ground MAPS & IATS 16 Sensor ground Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] 17 Sensor ground Camshaft Position Sensor (CMPS) 18 Immobilizer Communication Line Immobilizer Control Module 19 Manifold Absolute Pressure Sensor (MAPS) signal input Manifold Absolute Pressure Sensor (MAPS) 20 - 21 - 22 Main Relay control output Main Relay 23 Cooling Fan [High] control output Condenser Fan Relay 24 Injector (Cylinder #3) control output Injector (Cylinder #3) 25 Idle Speed Control Actuator (ISCA) [CLOSE] control output Idle Speed Control Actuator (ISCA) 26 - 27 - 28 Cooling Fan [Low] control output Radiator Fan Relay 29 Ignition Coil (Cylinder #2) control output Ignition Coil (Cylinder #2) 30 A/C switch signal input A/C Control Module 31 Load signal input (Head Lamp) Multi Function Switch 32 Knock Sensor [B] signal input Knock Sensor 33 Ground A/C Pressure Transducer 34 Sensor ground Fuel Tank Pressure Sensor (FTPS) 35 Sensor ground Engine Coolant Temperature Sensor (ECTS) 36 Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2] signal inputHeated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2]37 - 38 Sensor ground Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1]39 Throttle Position Senosr (TPS) signal input Throttle Position Senosr (TPS) 40 A/C Pressure Transducer signal input A/C Pressure Transducer 41 - 42 - 43 Intake Air Temperature Sensor (IATS) signal input Intake Air Temperature Sensor (IATS) 44 - 45 A/C Compressor Relay control output A/C Compressor Relay 46 Fuel Pump Relay output Fuel Pump Relay 47 Injector (Cylinder #2) control output Injector (Cylinder #2) 48 Immobilizer Lamp control output Immobilizer Lamp (Cluster) 49 Canister Close Valve (CCV) control output Canister Close Valve (CCV) 50 Fuel Tank Pressure Sensor (FTPS) signal input Fuel Tank Pressure Sensor (FTPS) 51 Ground Chassis Ground 52 - 53 - 54 Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1] signal inputHeated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1]55 - 56 - 57 - 58 Wheel Speed Sensor (WSS) [+] signal input Wheel Speed Sensor (WSS) [Without ABS] 59 Reference supply (+5V) A/C Pressure Transducer 60 Reference supply (+5V) Throttle Position Senosr (TPS) 61 - 62 CAN [Low] Data Link Connector (DLC) 63 Camshaft Position Sensor (CMPS) signal input Camshaft Position Sensor (CMPS) 64 Vehicle speed signal input ABS Control Module [With ABS] 65 - 66 Load signal input (Defrost) Defrost Relay 67 Engine speed signal output Tachometer (Cluster) 68 Injector (Cylinder #4) control output Injector (Cylinder #4) 69 Purge Control Solenoid Valve (PCSV) control output Purge Control Solenoid Valve (PCSV) 70 Malfunction Indicator Lamp (MIL) control output Malfunction Indicator Lamp (Cluster) 71 HO2S [Bank 1/Sensor 2] heater control output Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 2]72 HO2S [Bank 1/Sensor 1] heater control output Heated Oxygen Sensor (HO2S)
[Bank 1/Sensor 1]73 Ground Chassis Ground 74 - 75 - 76 Fuel Level Sensor (FLS) signal input Fuel Level Sensor (FLS) 77 Engine Coolant Temperature Sensor (ECTS) signal input Engine Coolant Temperature Sensor (ECTS) 78 - 79 Wheel Speed Sensor (WSS) [-] signal input Wheel Speed Sensor (WSS) [Without ABS] 80 Reference supply (+5V) Fuel Tank Pressure Sensor (FTPS) 81 Reference supply (+5V) Manifold Absolute Pressure Sensor (MAPS) 82 Battery power Battery 83 Ignition switch signal input Ignition switch 84 CAN [High] Data Link Connector (DLC) 85 - 86 Crankshaft Position Sensor (CKPS) [B] signal input Crankshaft Position Sensor (CKPS) 87 Crankshaft Position Sensor (CKPS) [A] signal input Crankshaft Position Sensor (CKPS) 88 Fuel consumption signal output Trip computer 89 - 90 Idle Speed Control Actuator (ISCA) [OPEN] control output Idle Speed Control Actuator (ISCA) 91 Injector (Cylinder #1) control output Injector (Cylinder #1) 92 CVVT Oil Control Valve (OCV) control output CVVT Oil Control Valve (OCV) 93 - 94 Fuel Filler Cap "OPEN" Lamp control output Fuel Filler Cap "OPEN" Lamp (Cluster) - ECM HARNESS CONNECTOR (M/T)
CONNECTOR [C01]
CONNECTOR (C01) DESCRIPTIONPin Description Condition Type Level Test Result 1 Ignition Coil (Cylinder #1) control output Idle Pulse 1st Voltage: 300 ~ 400V 349V ON Voltage: Max. 2V 1.68V 5.0Hz 2 Ground Idle DC Max. 50mV 0.0V 3 Ignition Coil (Cylinder #3) control output Idle Pulse 1st Voltage: 300 ~ 400V 358V ON Voltage: Max. 2V 1.68V 5.0Hz 4 - 5 - 6 Batter voltage supply after main relay IG OFF DC Max. 1.0V 0V IG ON Battery Voltage 12.81V 7 Ignition Coil (Cylinder #4) control output Idle Pulse 1st Voltage: 300~400V 362V ON Voltage: Max. 2V 1.69V 5.0Hz 8 A/C Pressure Switch signal input S/W OFF DC Max. 1.0V 0.0mV S/W ON Battery Voltage 12.77V 9 - 10 Load signal input (Power Steering) S/W ON DC Battery Voltage 11.81V S/W OFF Max. 0.5V 351mV 11 Knock Sensor [A] signal input Knocking Variable Frequency Normal 12 Sensor ground Idle DC Max. 50mV 13.2V 13 - 14 - 15 Sensor ground Idle DC Max. 50mV 8.9mV 16 Sensor ground Idle DC Max. 50mV 7.2mV 17 Sensor ground Idle DC Max. 50mV 6.8mV 18 Immobilizer Communication Line When communication after IG ON Pulse HI: Min. 8.5V 12.31V LO: Max. 3.5V 1.17V 19 Manifold Absolute Pressure Sensor (MAPS) signal input IG ON Analog 3.9 ~ 4.1V 4.05V Idle 0.8 ~ 1.6V 1.55V 20 - 21 - 22 Main Relay control output Relay OFF DC Battery Voltage 12.97V Relay ON Max. 1.0V 791mV 23 Cooling Fan [High] control output Relay OFF DC Battery Voltage 14.12V Relay ON Max. 1.0V 198mV 24 Injector (Cylinder #3) control output Idle Pulse (5.5 Hz) HI: Battery Voltage 14.2V LO: Max. 1.0V 330mV Vpeak: Max. 80V 69.6V 25 Idle Speed Control Actuator (ISCA) [CLOSE] control output Idle Pulse HI: Battery Voltage 14.9V LO: Max. 1.0V 204mV Vpeak: Max.80V 250Hz at duty 67.5% 26 - 27 - 28 Cooling Fan [Low] control output Relay OFF DC Battery Voltage 14.05V Relay ON Max. 1.0V 52.1mV 29 Ignition Coil (Cylinder #2) control output Idle Pulse 1st Voltage: 300~400V 365V ON Voltage: Max. 2V 1.69V 5.0Hz 30 A/C switch signal input S/W OFF DC Max. 1.0V 10.6mV S/W ON Battery Voltage 11.78V 31 Load signal input (Head Lamp) S/W OFF DC Battery Voltage 12.96V S/W ON Max. 0.5V 274mV 32 Knock Sensor [B] signal input Knocking Variable Frequency Normal 33 Ground Idle DC Max. 50mV 2.4mV 34 Sensor ground Idle DC Max. 50mV 9.2mV 35 Sensor ground Idle DC Max. 50mV 3.7mV 36 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input Racing Analog Rich: 0.6 ~ 1.0V 872mV Lean: Max. 0.4V 155mV 37 - 38 Sensor ground Idle DC Max. 50mV 2.1mV 39 Throttle Position Senosr (TPS) signal input C.T Analog 0.2 ~ 0.7V 0.31V W.O.T Min. 4.0V 4.21V 40 A/C Pressure Transducer signal input A/C ON Analog Max. 4.8V 2.51V 41 - 42 - 43 Intake Air Temperature Sensor (IATS) signal input Idle Analog 0 ~ 5V 1.89V at 35°C 44 - 45 A/C Compressor Relay control output A/C OFF DC Battery Voltage 14.32V A/C ON Max. 1.0V 114mV 46 Fuel Pump Relay output Relay OFF DC Battery Voltage 12.3V Relay ON Max. 1.0V 30mV 47 Injector (Cylinder #2) control output Idle Pulse (5.5Hz) HI: Battery Voltage 13.6V LO: Max. 1.0V 340mV Vpeak: Max. 80V 69.7V 48 Immobilizer Lamp control output Lamp OFF DC Battery Voltage 11.98V Lamp ON Max. 1.0V 27mV 49 Canister Close Valve (CCV) control output Active Inactive Pulse HI : Battery Voltage 12.5V LO : MAx. 1.0V 121mV Vpeak : Max. 70V 44.7V 50 Fuel Tank Pressure Sensor (FTPS) signal input Idle DC 0.4 ~ 4.6V 2.45V 51 Ground Idle DC Max. 50mV 1.8mV 52 - 53 - 54 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] signal input Racing Analog Rich: 0.6 ~ 1.0V 880mV Lean: Max. 0.4V 208mV 55 - 56 - 57 - 58 Wheel Speed Sensor (WSS) [+] signal input Vehicle Run Sine Wave Vp-p: Min. 0.2V 59 Reference supply (+5V) IG OFF DC Max. 0.5V 4.2mV IG ON 4.9 ~ 5.1V 5.04V 60 Reference supply (+5V) IG OFF DC Max. 0.5V 0.0mV IG ON 4.9 ~ 5.1V 5.04V 61 - 62 CAN [Low] Recessive Pulse 2.0 ~ 3.0 V 2.36V Dominant 0.5 ~ 2.25 V 1.44V 63 Camshaft Position Sensor (CMPS) signal input Idle Pulse HI: Battery Voltage 13.86V LO: Max. 0.5V 450mV 64 Vehicle speed signal input Vehicle Run Pulse HI: Min. 5.0V 12.4V LO: Max. 1.0V 17mV 432Hz at 30kph 65 - 66 Load signal input (Defrost) S/W OFF DC Max. 0.5V 0mV S/W ON Battery Voltage 13.19V 67 Engine speed signal output Idle Pulse HI: Battery Voltage 13.9V LO: Max. 0.5V 12.1mV 20 ~ 26Hz 21.9Hz 68 Injector (Cylinder #4) control output Idle Pulse (5.5Hz) HI: Battery Voltage 14.2V LO: Max. 1.0V 330mV Vpeak: Max. 80V 69.6V 69 Purge Control Solenoid Valve (PCSV) control output Active Inactive Pulse HI: Battery Voltage 14.2V LO: Max. 1.0V 215mV Vpeak: Max. 70V 45.2V 13.68Hz 70 Malfunction Indicator Lamp (MIL) control output Lamp OFF DC Battery Voltage 13.03V Lamp ON Max. 1.0V 716mV 71 HO2S [Bank 1/Sensor 2] heater control output Engine Run Pulse (2Hz) HI: Battery Voltage 14.1V LO: Max. 1.0V 304mV 72 HO2S [Bank 1/Sensor 1] heater control output Engine Run Pulse (2Hz) HI: Battery Voltage 14.1V LO: Max. 1.0V 326mV 73 Ground Idle DC Max. 50mV 2.1mV 74 - 75 - 76 - 77 Engine Coolant Temperature Sensor (ECTS) signal input Idle Analog 0.5 ~ 4.5V 0.85V at 95.1°C 78 - 79 Wheel Speed Sensor (WSS) [-] signal input Vehicle Run Sine Wave Vp-p: Min.0.2V 80 - 81 Reference supply (+5V) IG OFF DC Max. 0.5V IG ON 4.9 ~ 5.1V 82 Battery power Always DC Battery Voltage 83 Ignition switch signal input IG OFF DC Max. 0.5V 2.8mV IG ON Battery Voltage 12.18V 84 CAN [High] Recessive Rulse 2.0 ~ 3.0V 2.36V Dominant 2.75 ~ 4.5V 3.44V 85 - 86 Crankshaft Position Sensor (CKPS) [B] signal input Idle Sine Wave Vp_p: Min.1.0V 8.44V 718.4Hz 87 Crankshaft Position Sensor (CKPS) [A] signal input Idle Sine Wave Vp_p: Min. 1.0V 8.44V 718.4Hz 88 Fuel consumption signal output Idle Pulse HI: Battery Voltage 13.9V LO: Max. 0.5V 16.1mV 89 - 90 Idle Speed Control Actuator (ISCA) [OPEN] control output Idle Pulse HI: Battery Voltage 14.8V LO: Max. 1.0V 128mV 250Hz at duty 32.5% 91 Injector (Cylinder #1) control output Idle Pulse (5.5Hz) HI: Battery Voltage 14.2V LO: Max. 1.0V 330mV Vpeak: Max. 80V 69.6V 92 CVVT Oil Control Valve (OCV) control output Idle Pulse HI: Battery Voltage 14.9V LO: Max. 1.0V 36.2mV 300.26Hz at duty 6.1% 93 - 94 Fuel Filler Cap "OPEN" Lamp control output Lamp OFF DC Battery Voltage Lamp ON Max. 1.0V
