Component Inspection

1. Specification :
   SPECIFICATION CHART



   Temp.	Coil Resistance
   20°C (68°F)	7.4±0.5Ω

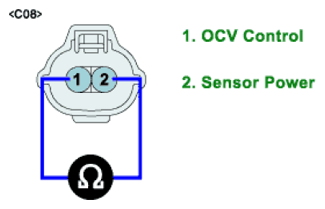

   Fig 1: Measuring Resistance Between Terminal 1 And 2 Of OCV Connector (Component Side)

   Courtesy of KIA MOTORS AMERICA, INC.

YES

1. Substitute with a known - good ECM and check for proper operation.

   If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   CAUTION: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM.
   Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others

NO

1. Substitute with a known - good OCV and check for proper operation.

   If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
