Control Circuit Inspection

IG "OFF".
Disconnect OCV connector.
IG "ON" & ENG "OFF"
Measure voltage between terminal 1 of OCV harness connector and chassis ground.
1. Specification : Approx. 3.2V

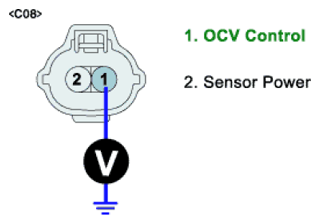

  Fig 1: Measuring Voltage Between Terminal 1 Of OCV Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specification?
YES
1. Go to "COMPONENT INSPECTION " procedure.
NO
1. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
