Control Circuit Inspection

IG "OFF".
Disconnect HO2S (B1S2) connector.
IG "ON" & ENG "OFF"
Measure voltage between terminal 3 of HO2S (B1S2) harness connector and chassis ground.
1. Specification : Approx. 3.5V

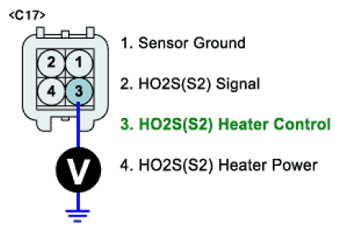

  Fig 1: Measuring Voltage Between Terminal 3 Of HO2S (B1S2) Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specification?
YES
1. Go to "COMPONENT INSPECTION " procedure.
NO
1. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
