Engine Control System Diagnosis (2 Of 2)
>>
DTC P2232: O2 Sensor Signal Circuit Shorted
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

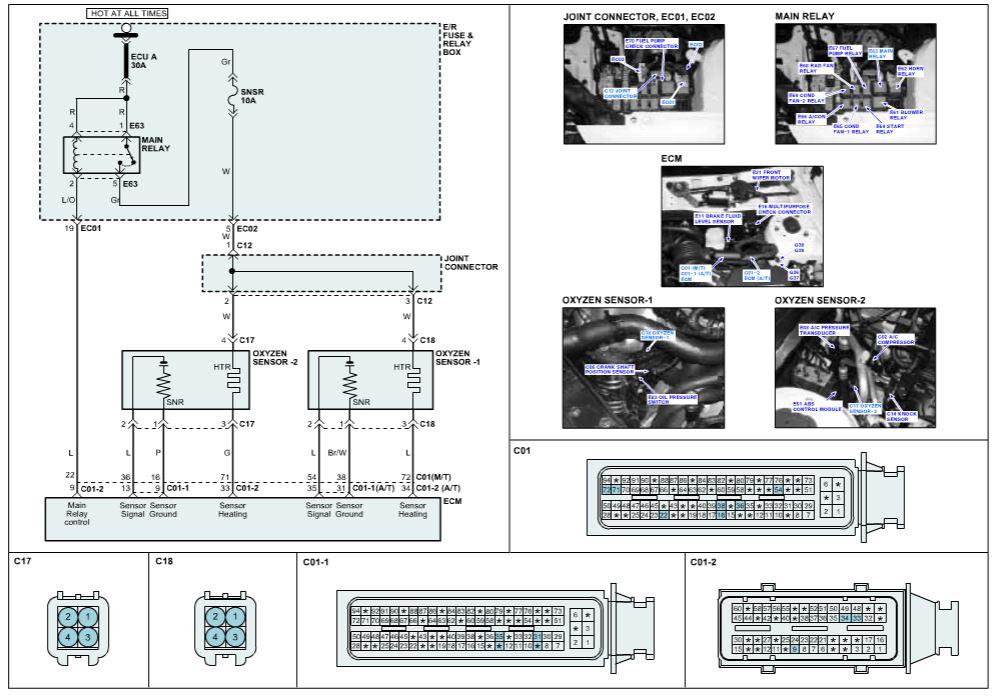

Fig 1: Heated Oxygen Sensor (HO2S) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
