Components and Components Location: components: Notes

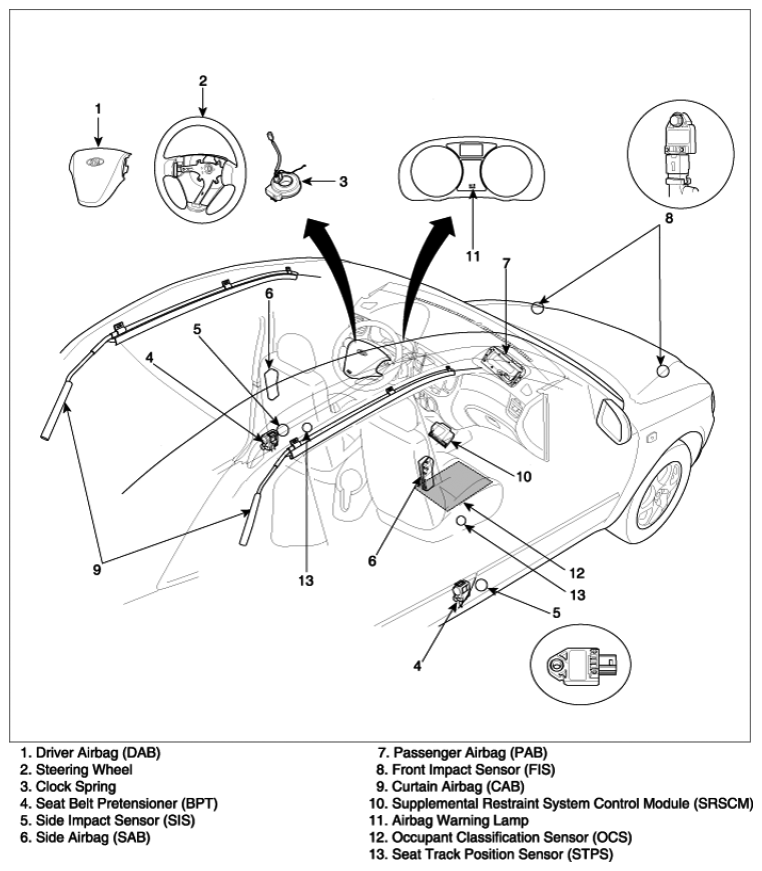

Fig 1: Identifying Restraint Components Location
G06829216Courtesy of KIA MOTORS AMERICA, INC.
