Repair procedures (M5CF1): Removal

Remove the center console (A). (Refer to CONSOLE .

Fig 1: Identifying Center Console
Courtesy of KIA MOTORS AMERICA, INC.

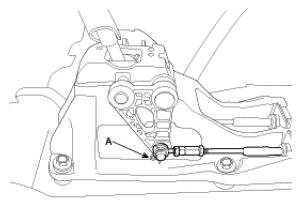

Remove the select cable snap pin (A).

Fig 2: Identifying Select Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable clip (A).

Fig 3: Identifying Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

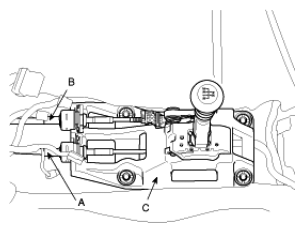

Remove the shift cable (A) and select cable (B).
Remove the shift lever assembly (C).

Fig 4: Identifying Shift Cable, Select Cable And Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the retainer (A) and nuts (B).

Fig 5: Identifying Retainer And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

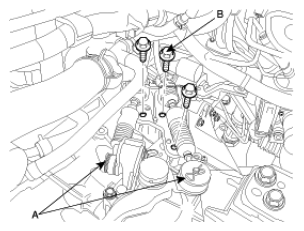

Remove the snap pin (A) and control cable bracket bolts (B-3ea).

Fig 6: Identifying Snap Pin And Control Cable Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable and select cable.
