Engine Control Module

PCM (POWERTRAIN CONTROL MODULE)

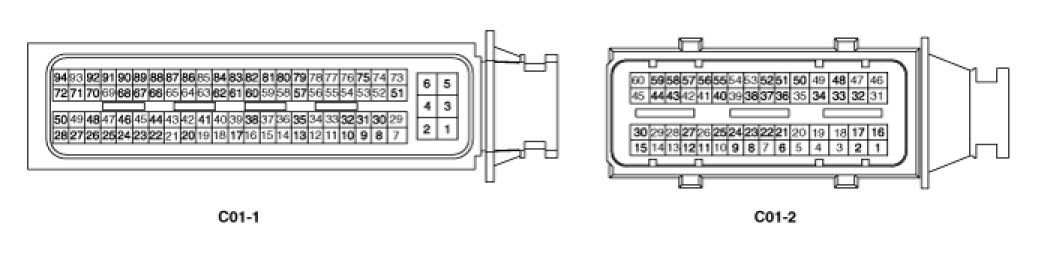

1. PCM HARNESS CONNECTOR (A/T)

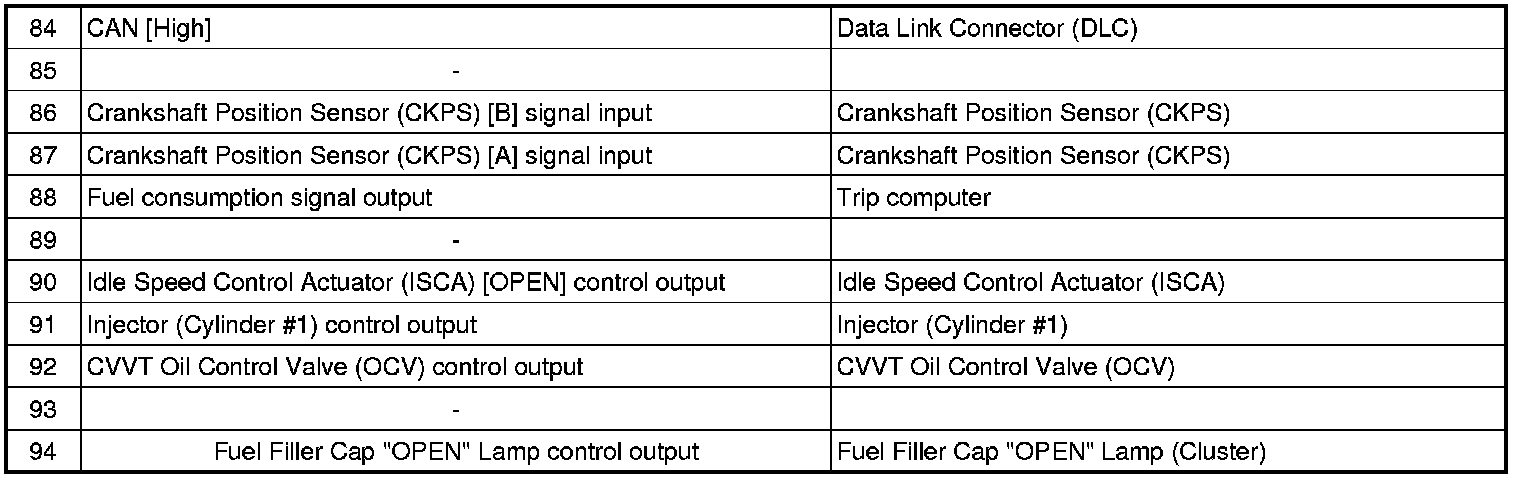

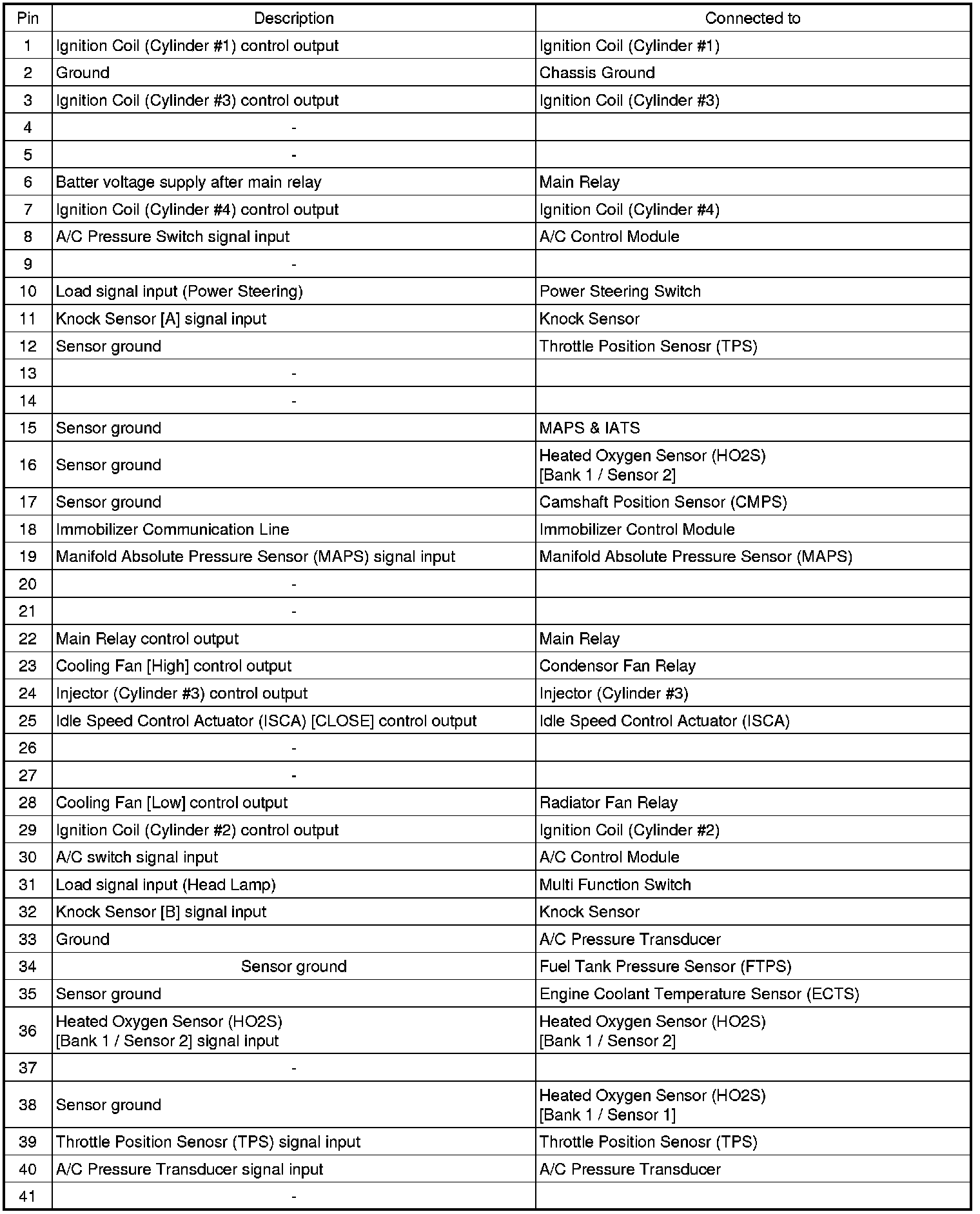

2. PCM TERMINAL FUNCTION (A/T)

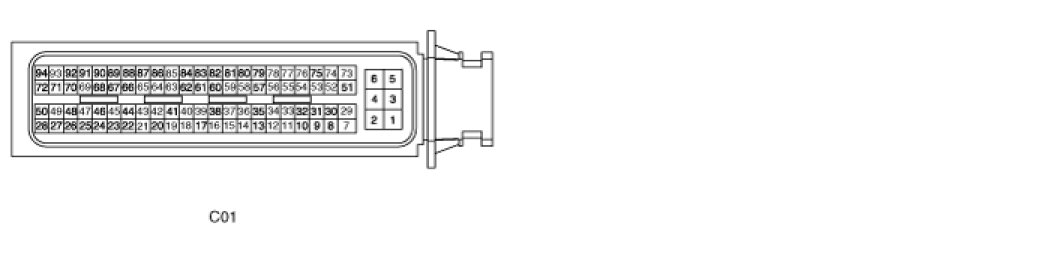

CONNECTOR [C01-1]

CONNECTOR [C01-2]

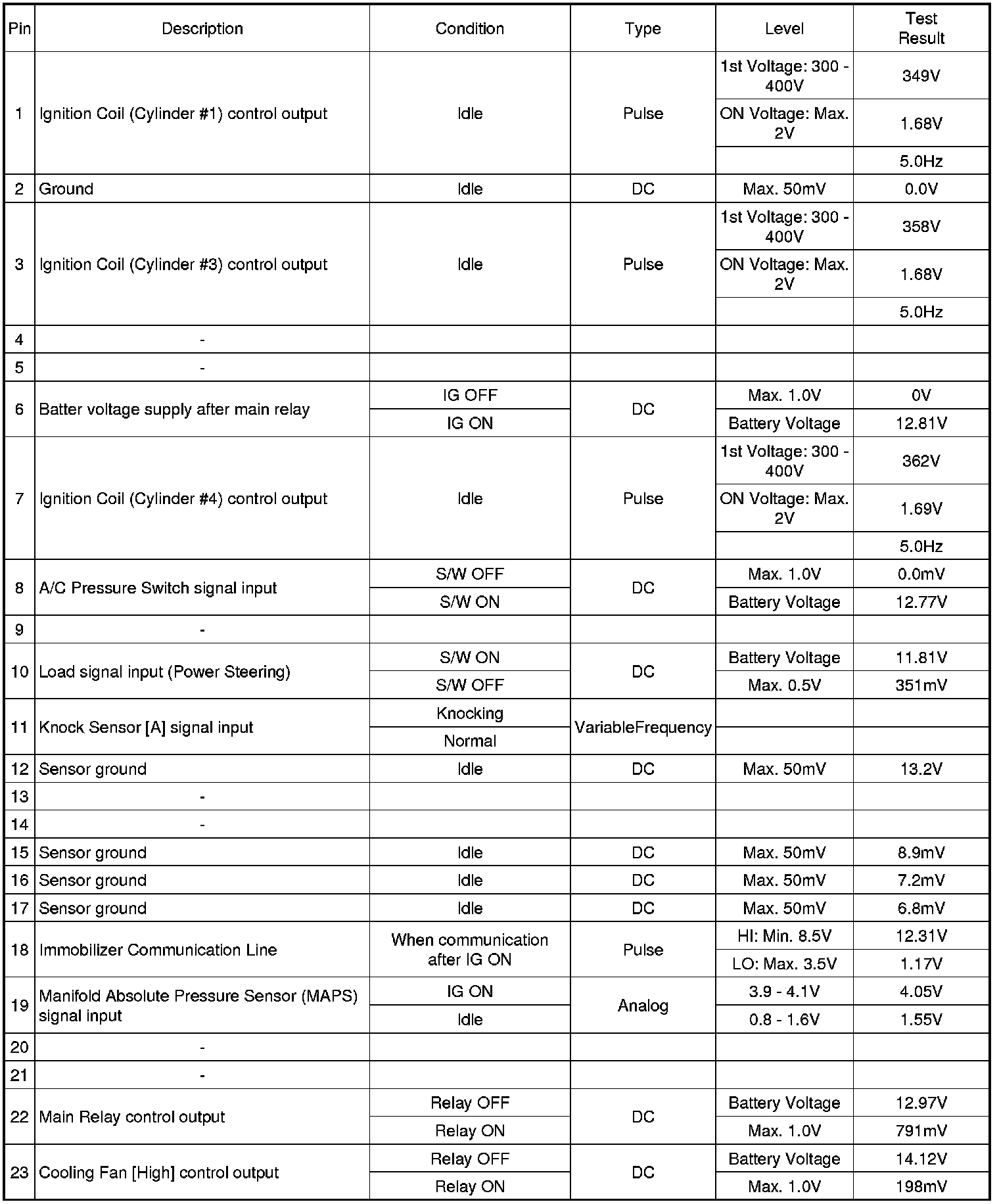

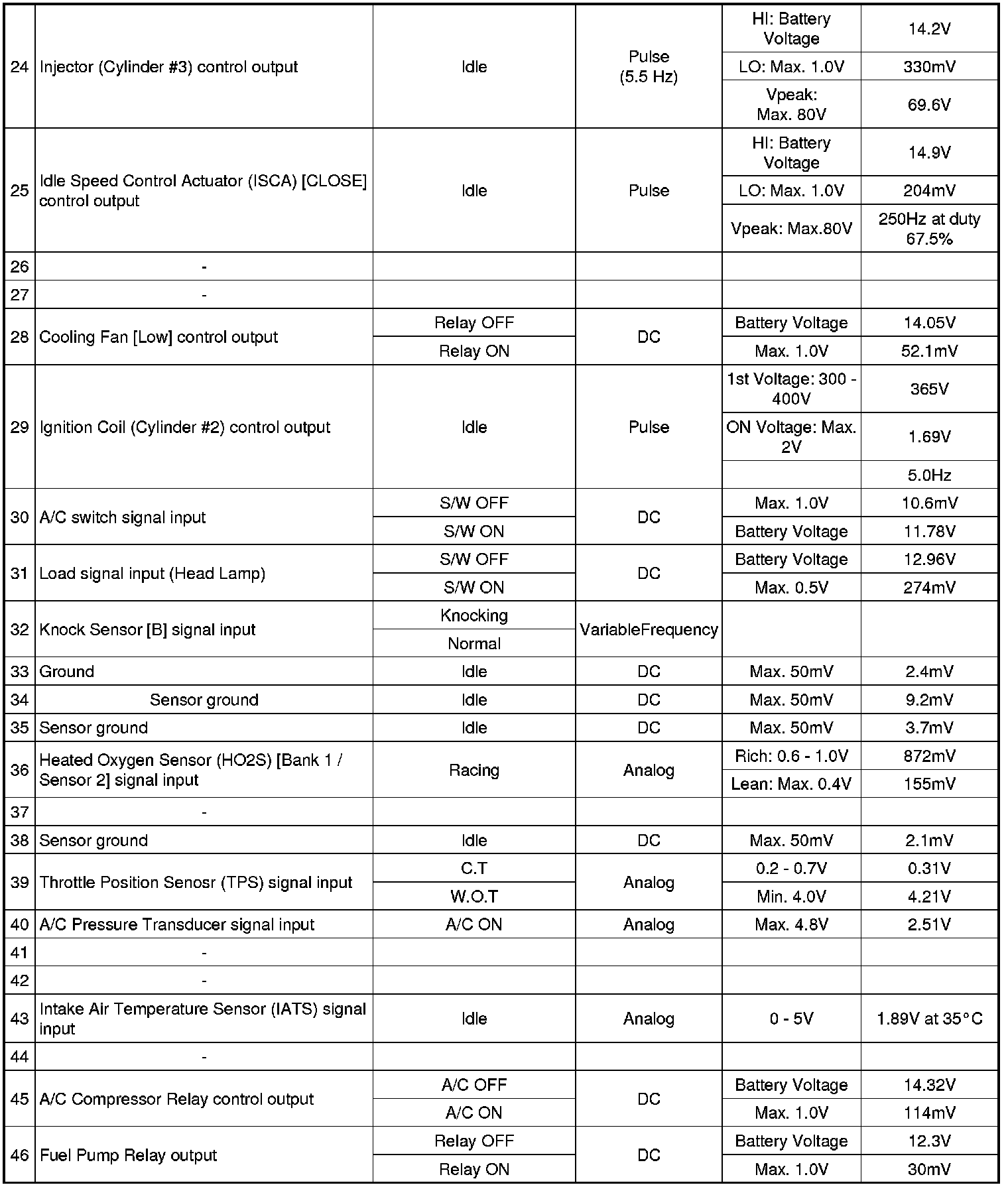

3. PCM TERMINAL IN/OUT SIGNAL (A/T)

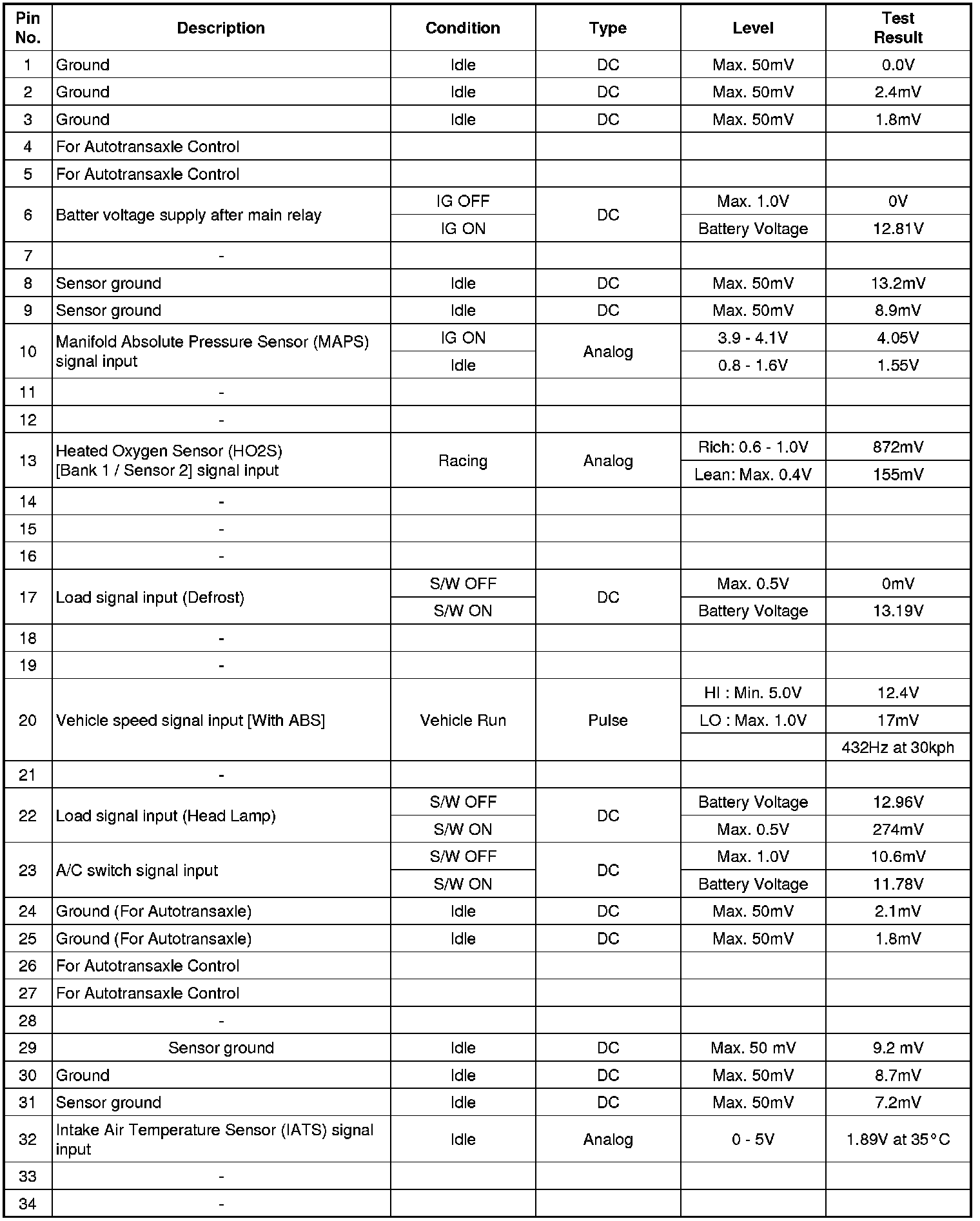

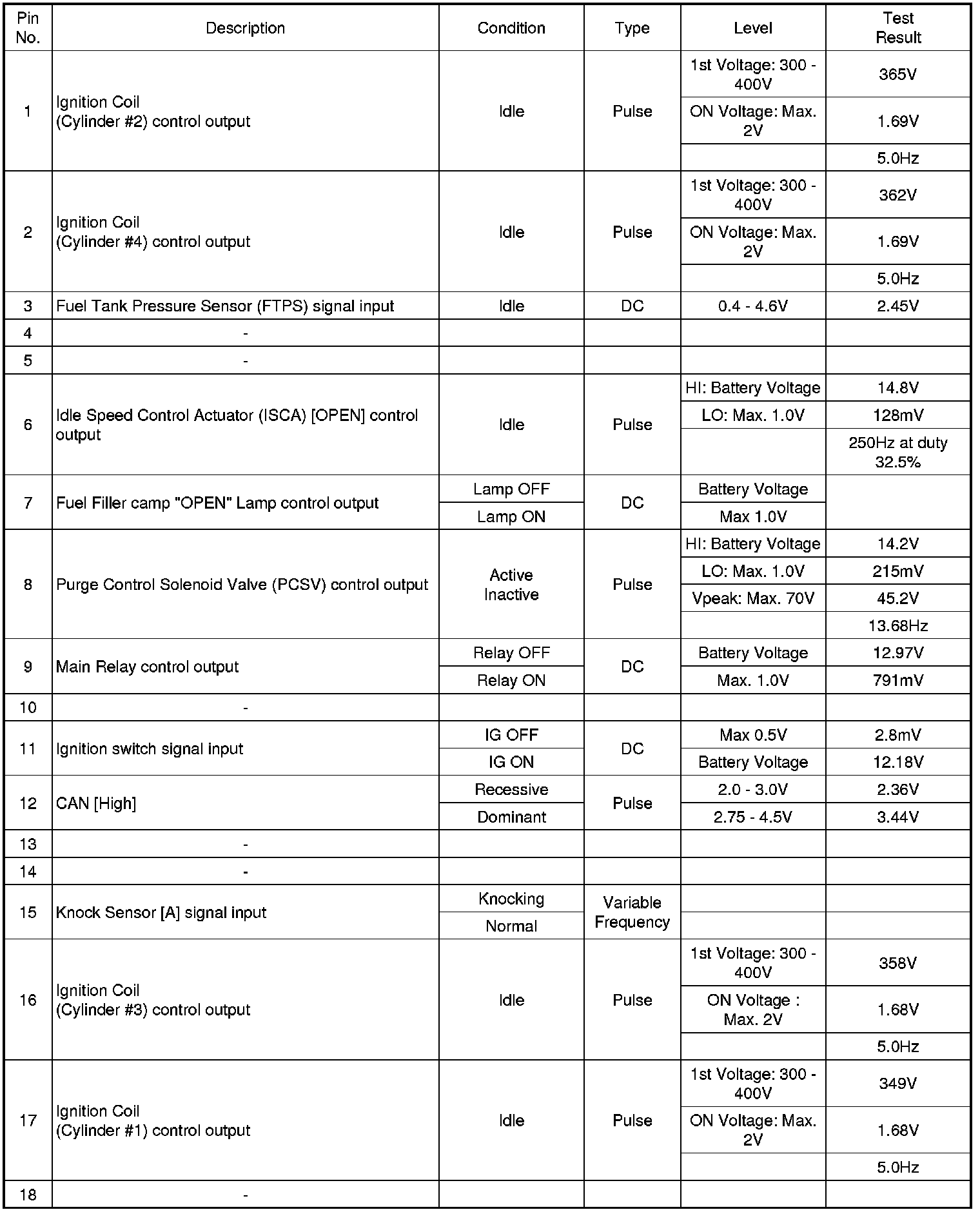

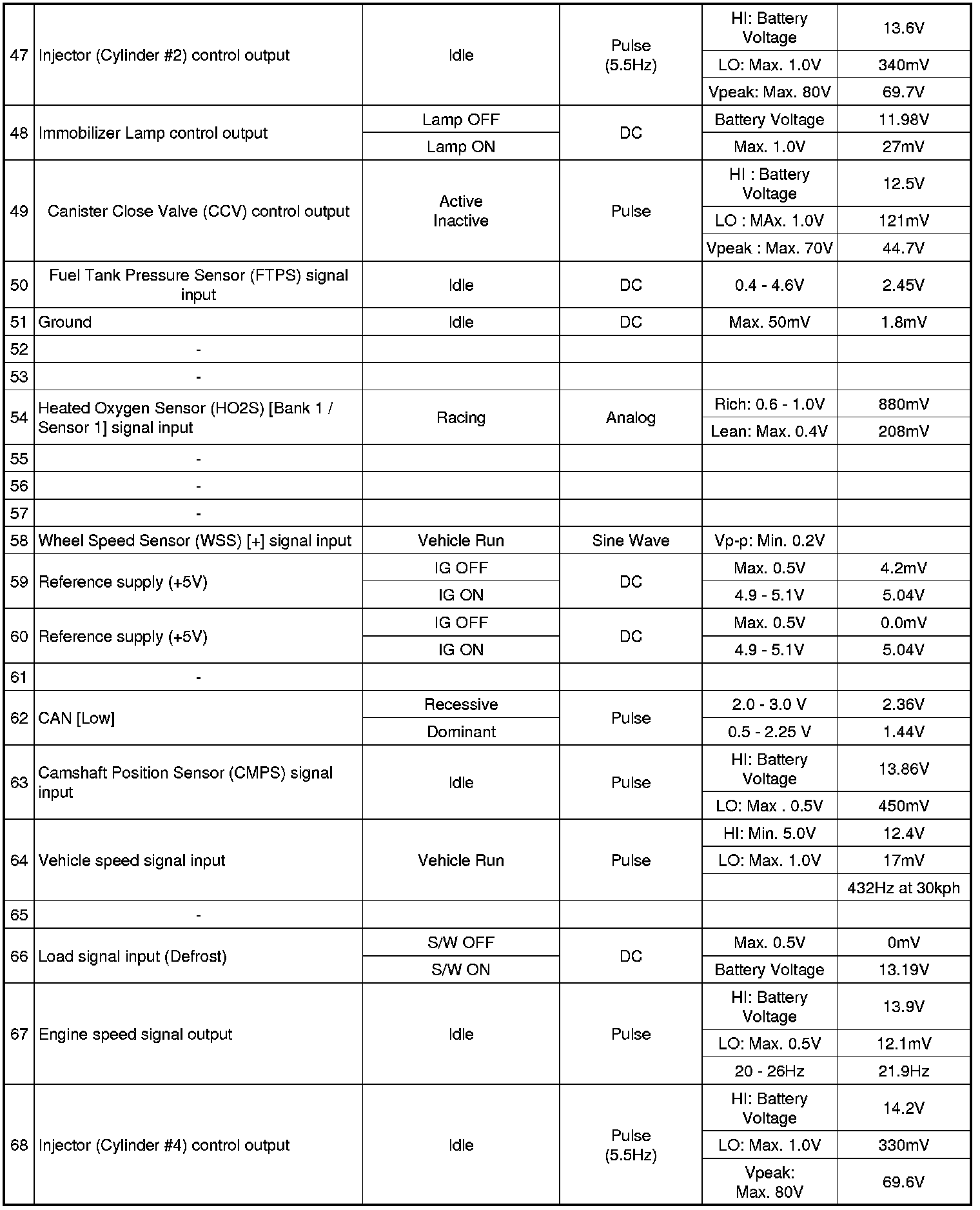

CONNECTOR [C01-1]

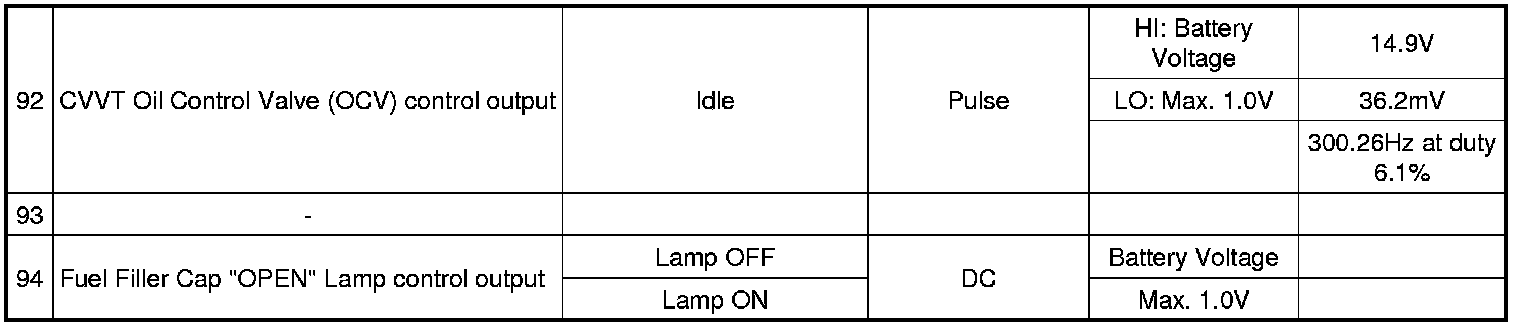

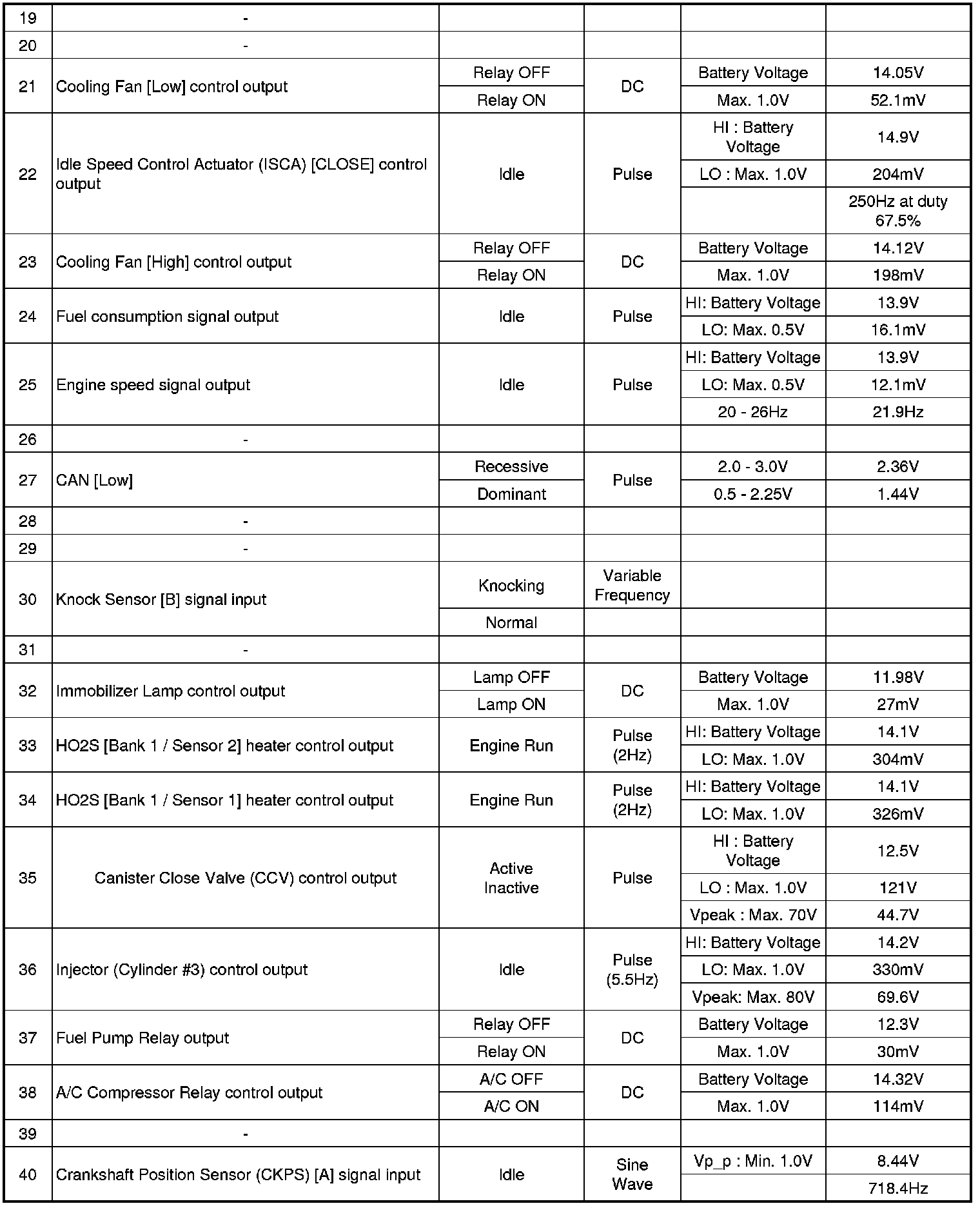

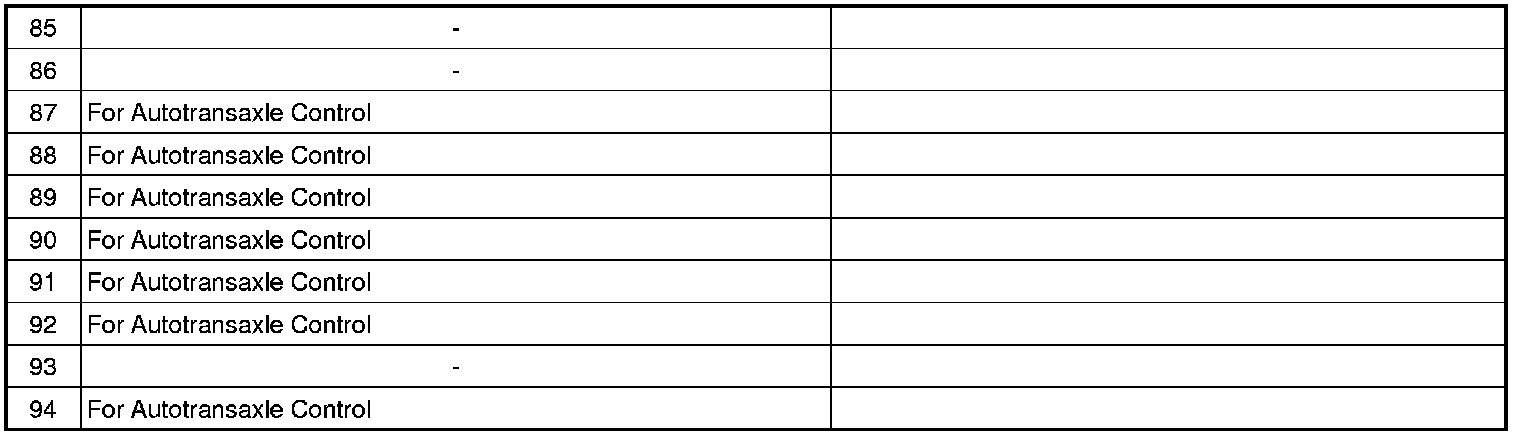

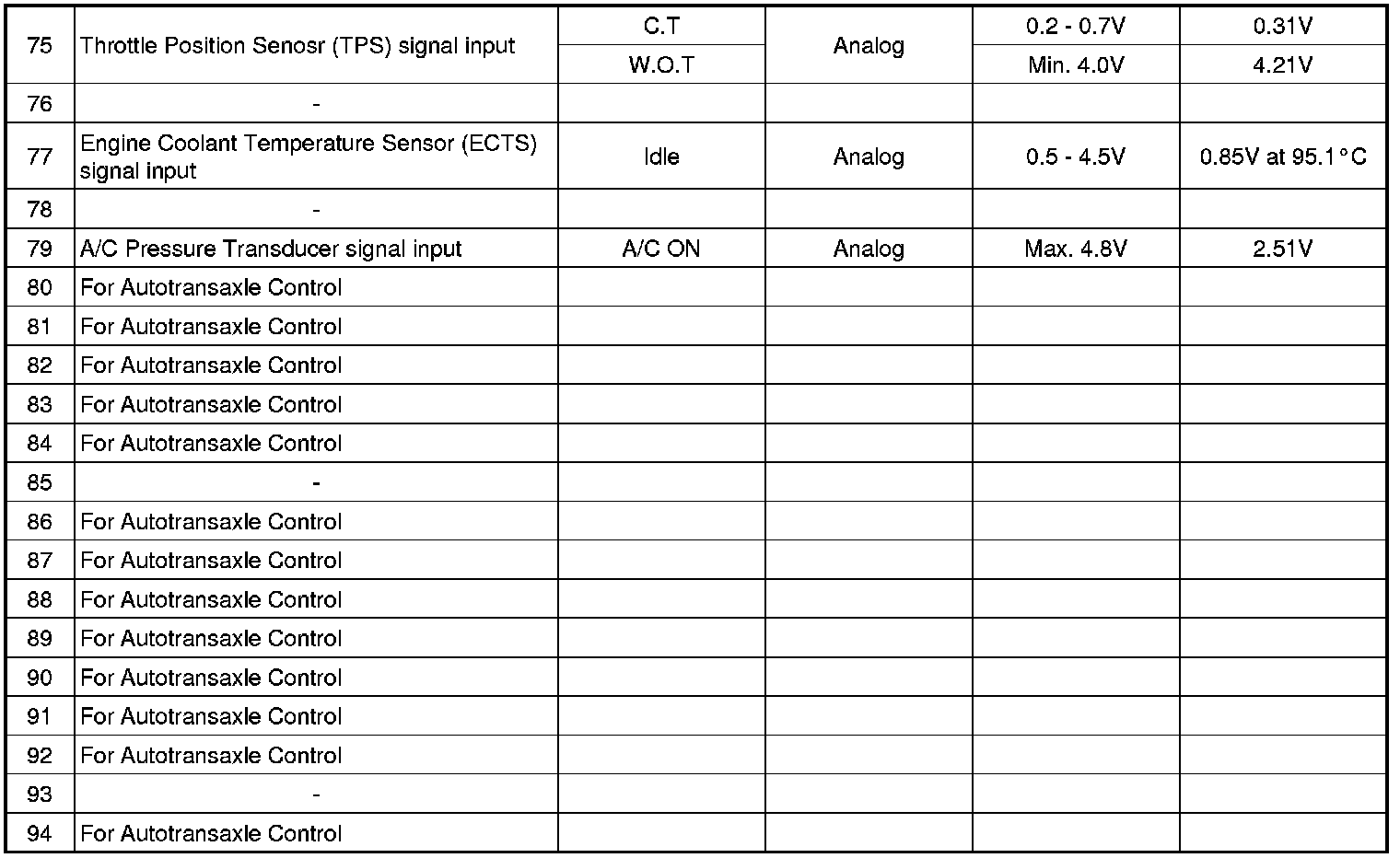

CONNECTOR [C01-2]

1. ECM HARNESS CONNECTOR (M/T)

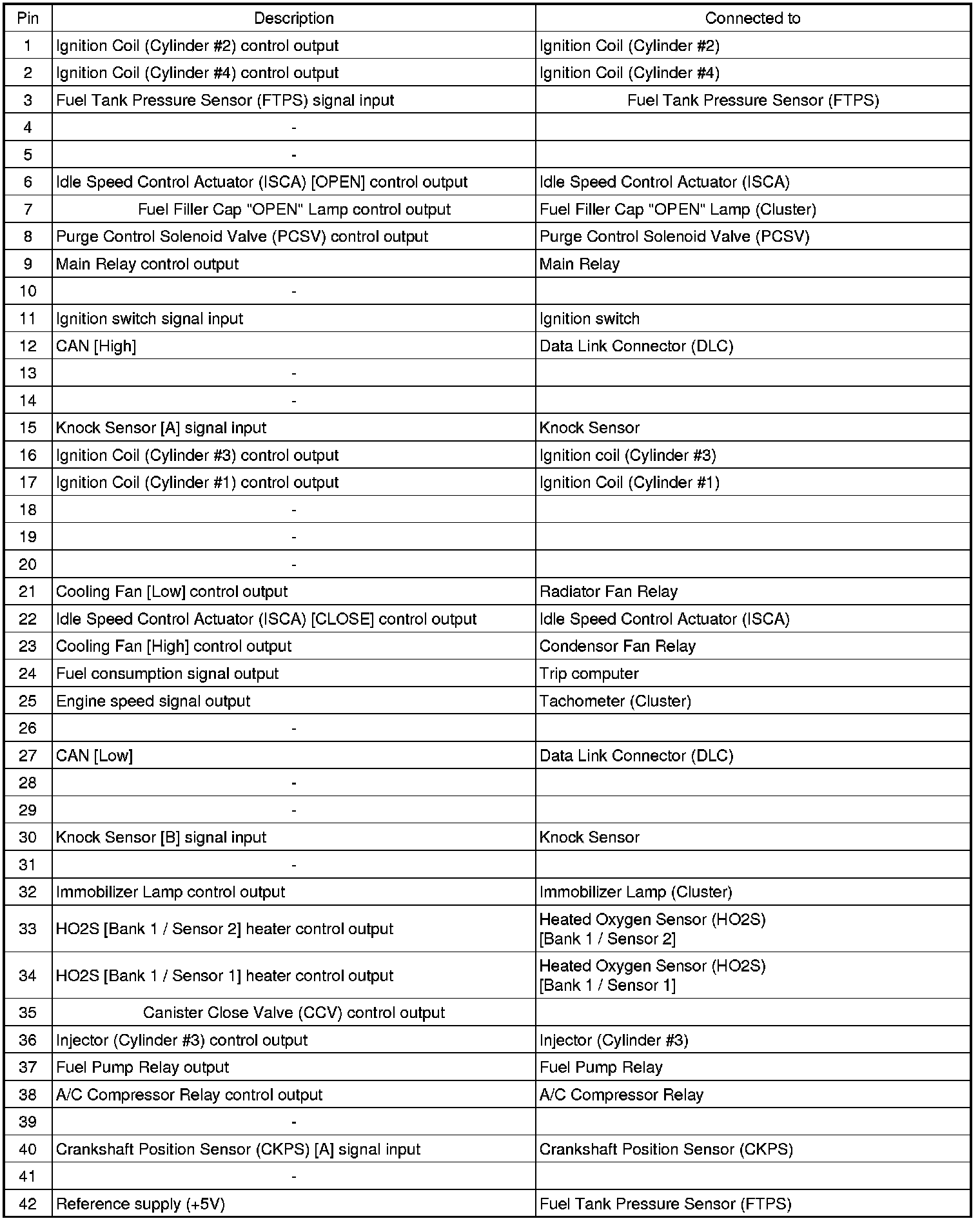

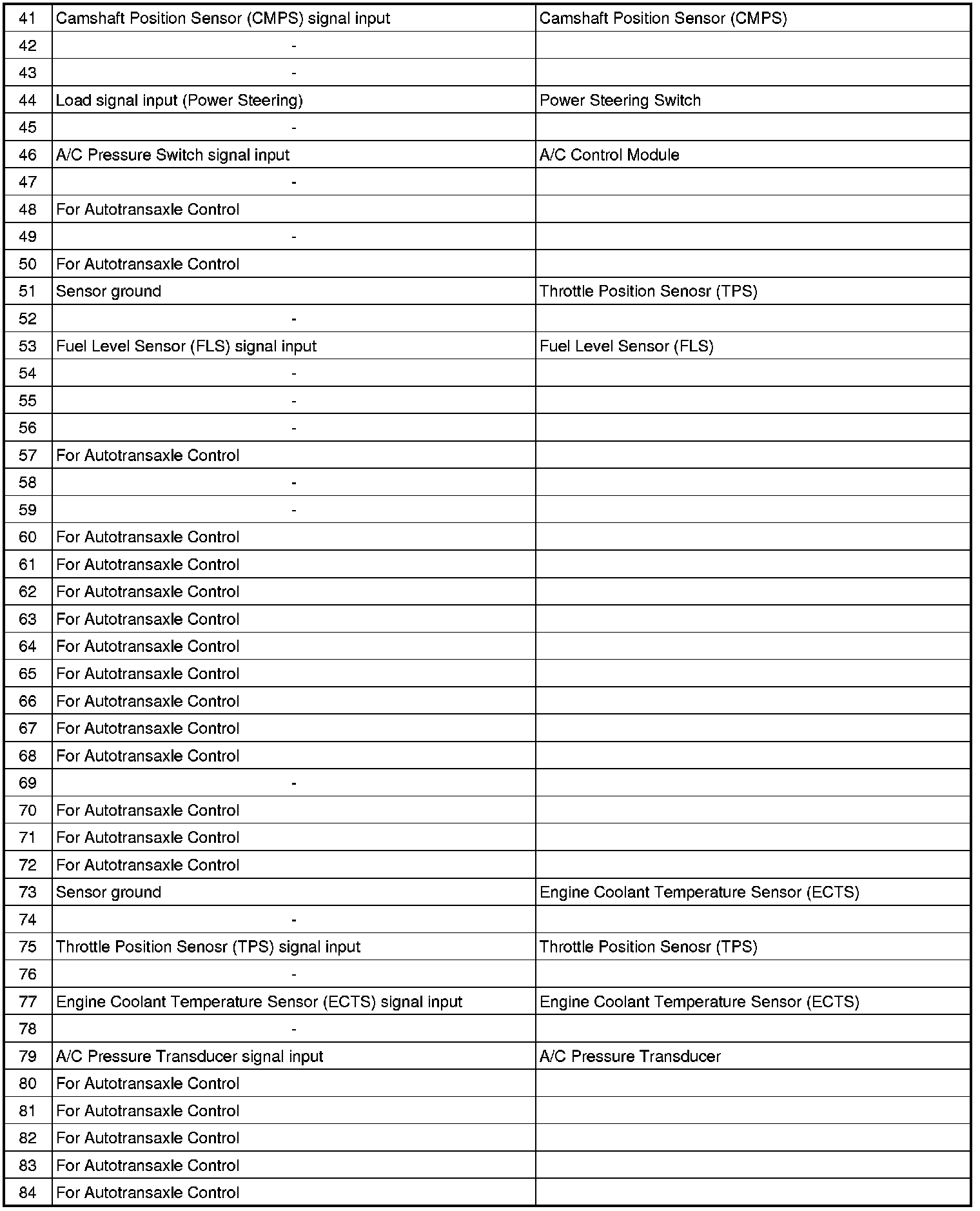

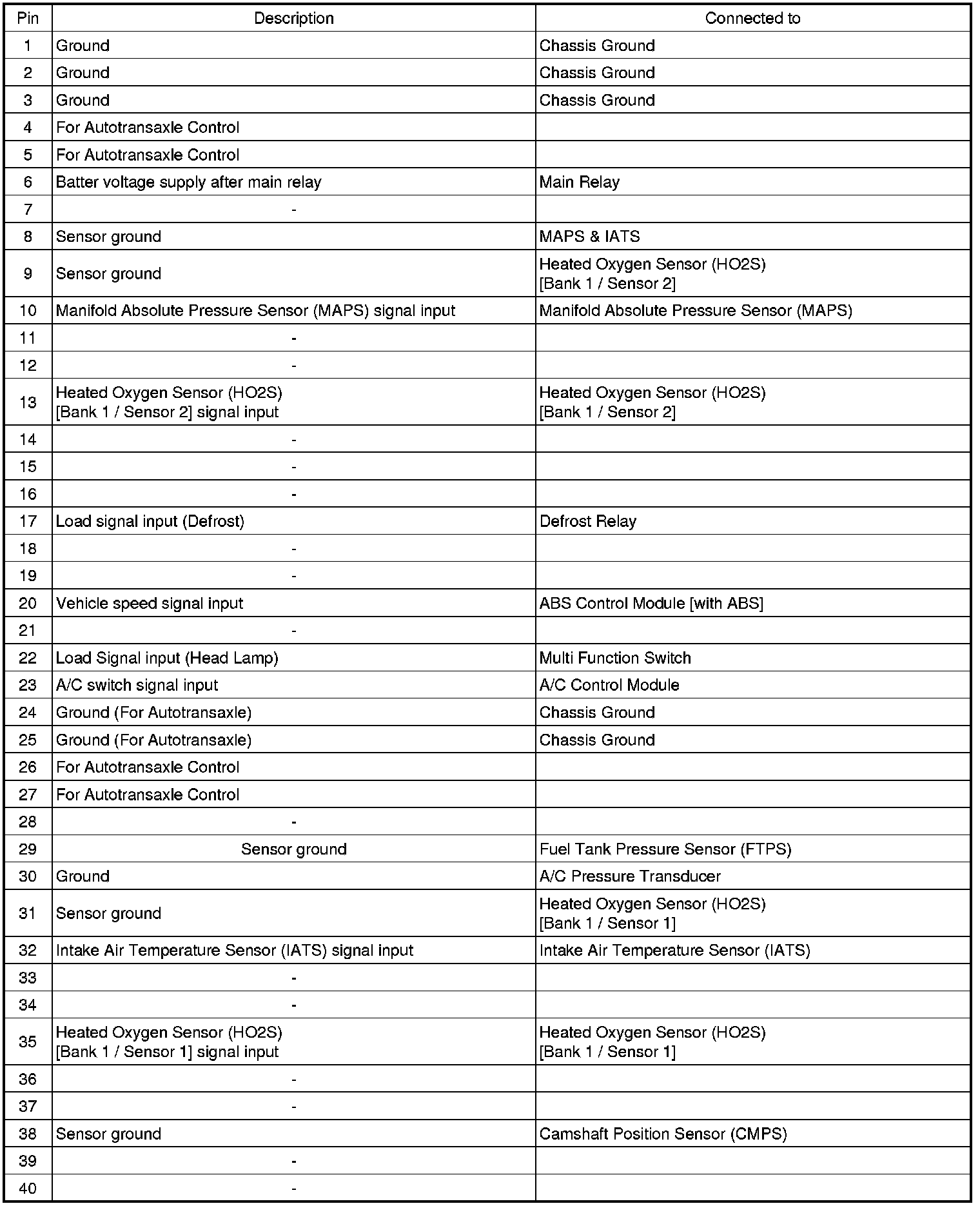

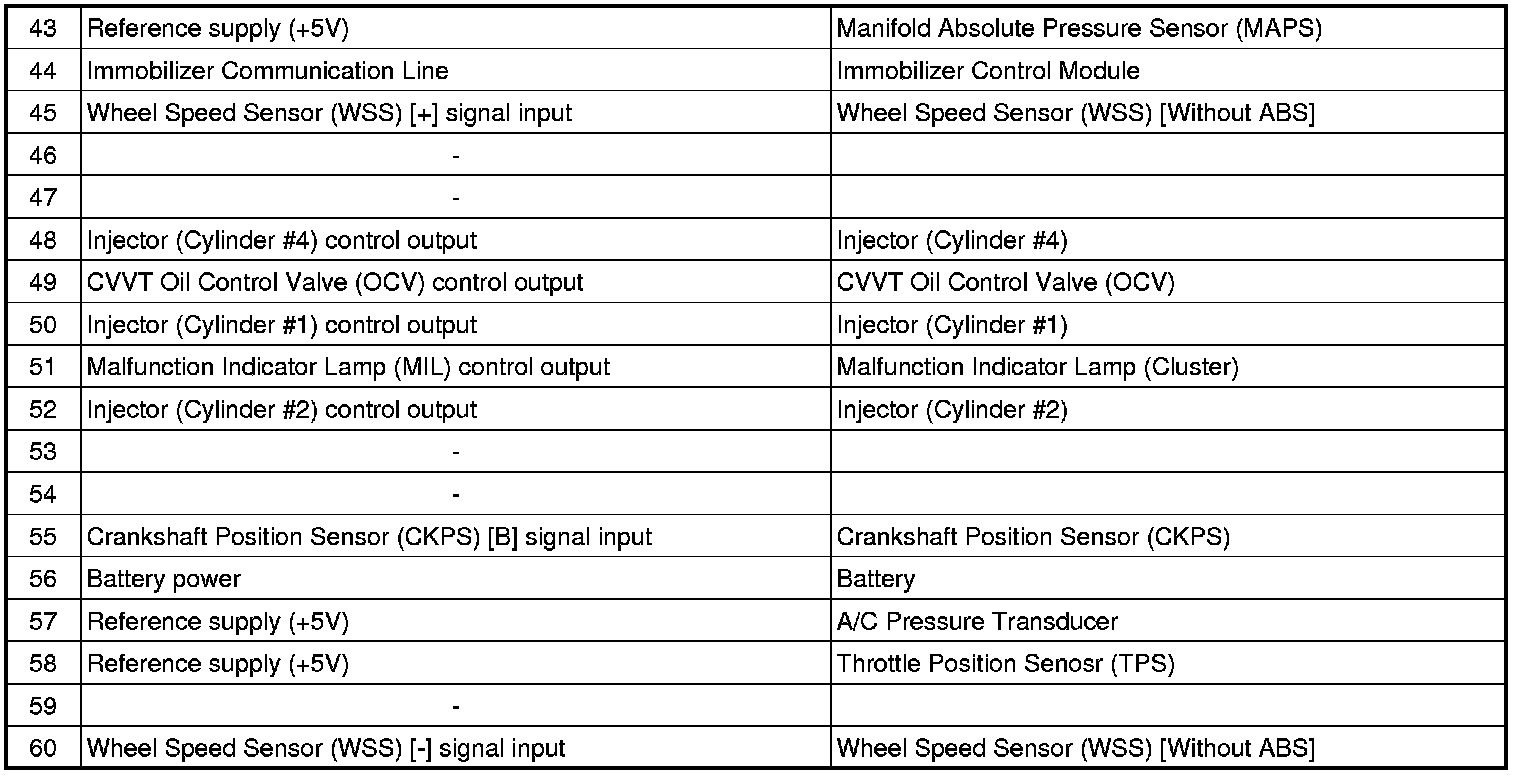

2. ECM TERMINAL FUNCTION (M/T)
CONNECTOR [C01]

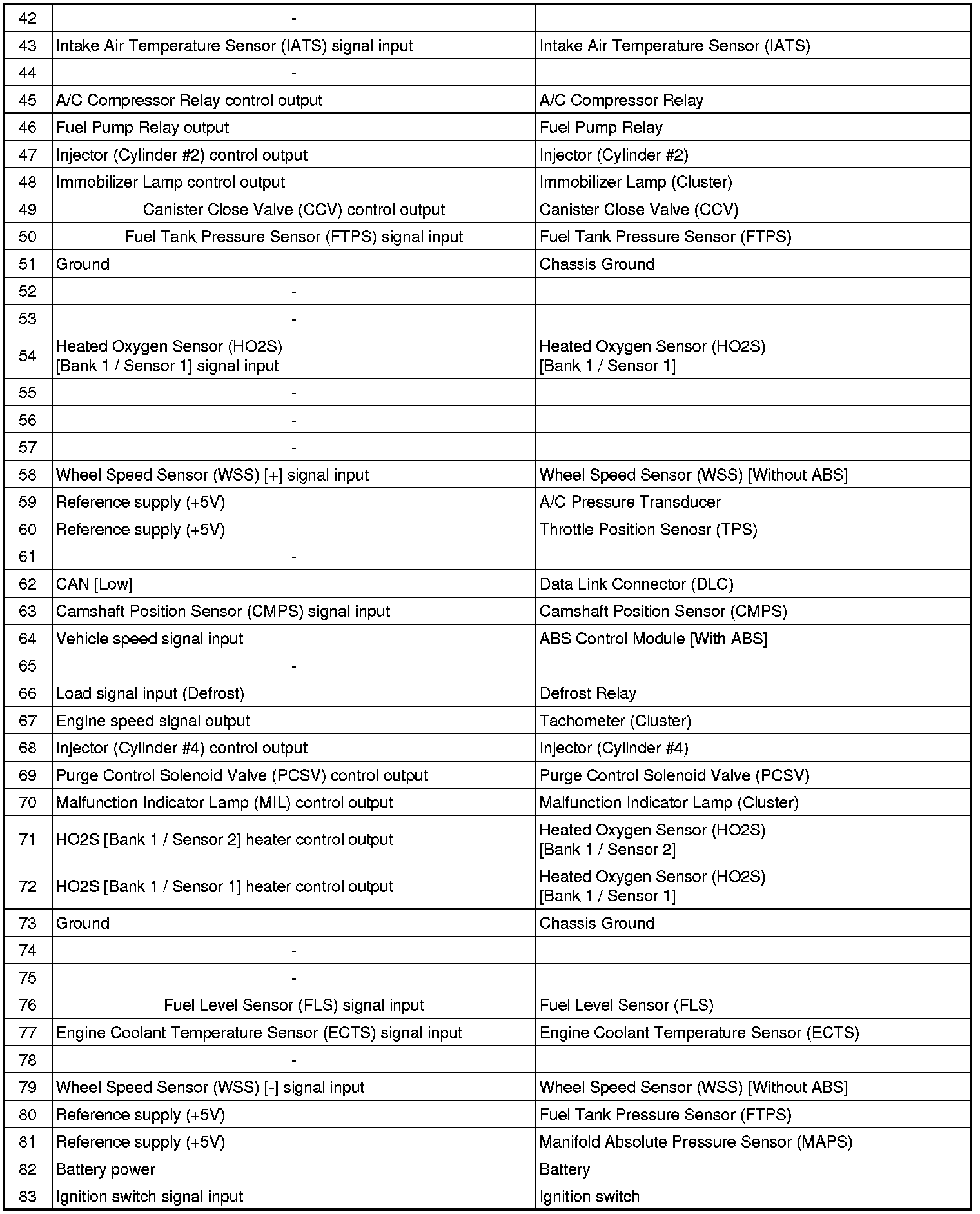

3. ECM HARNESS CONNECTOR (M/T)

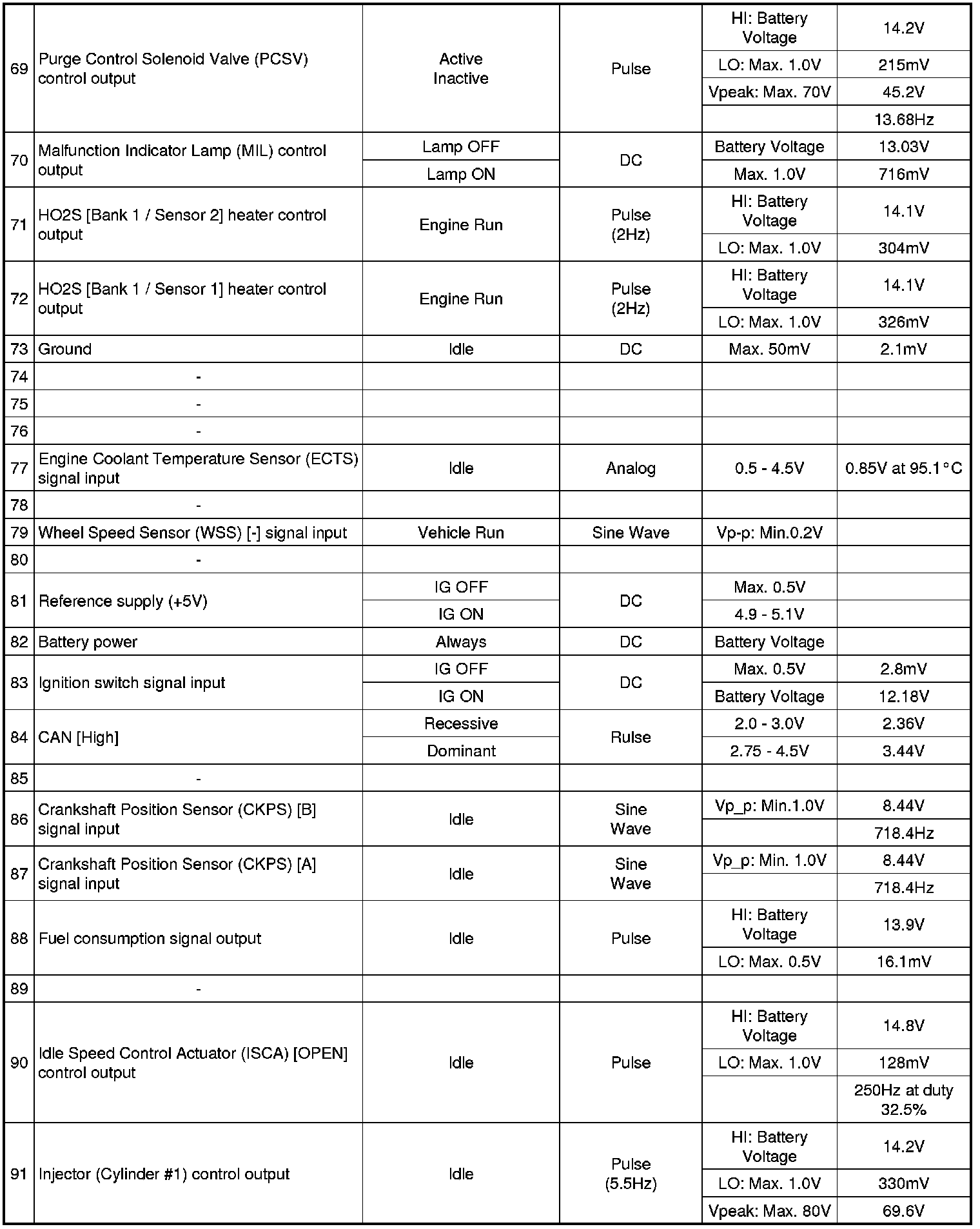

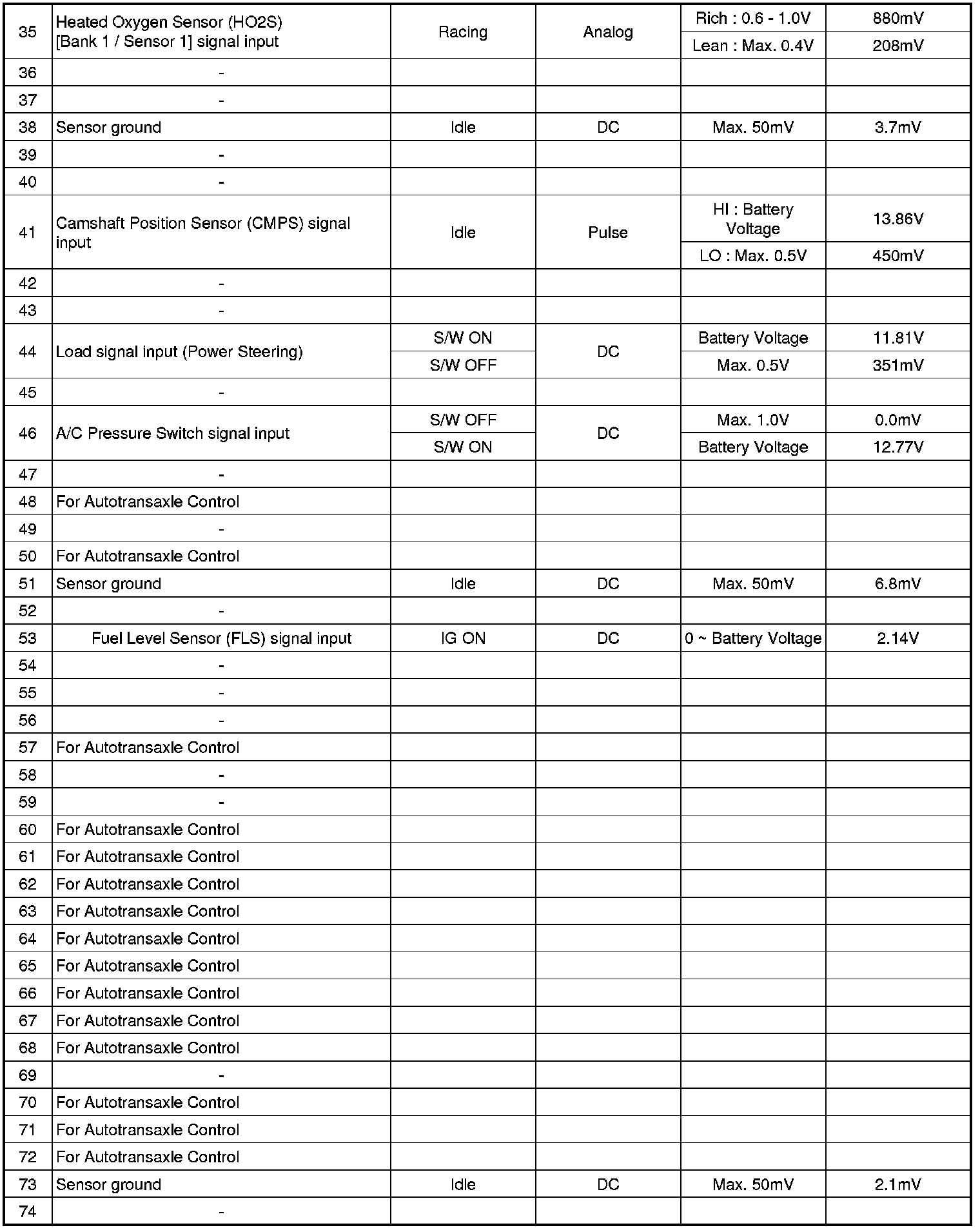

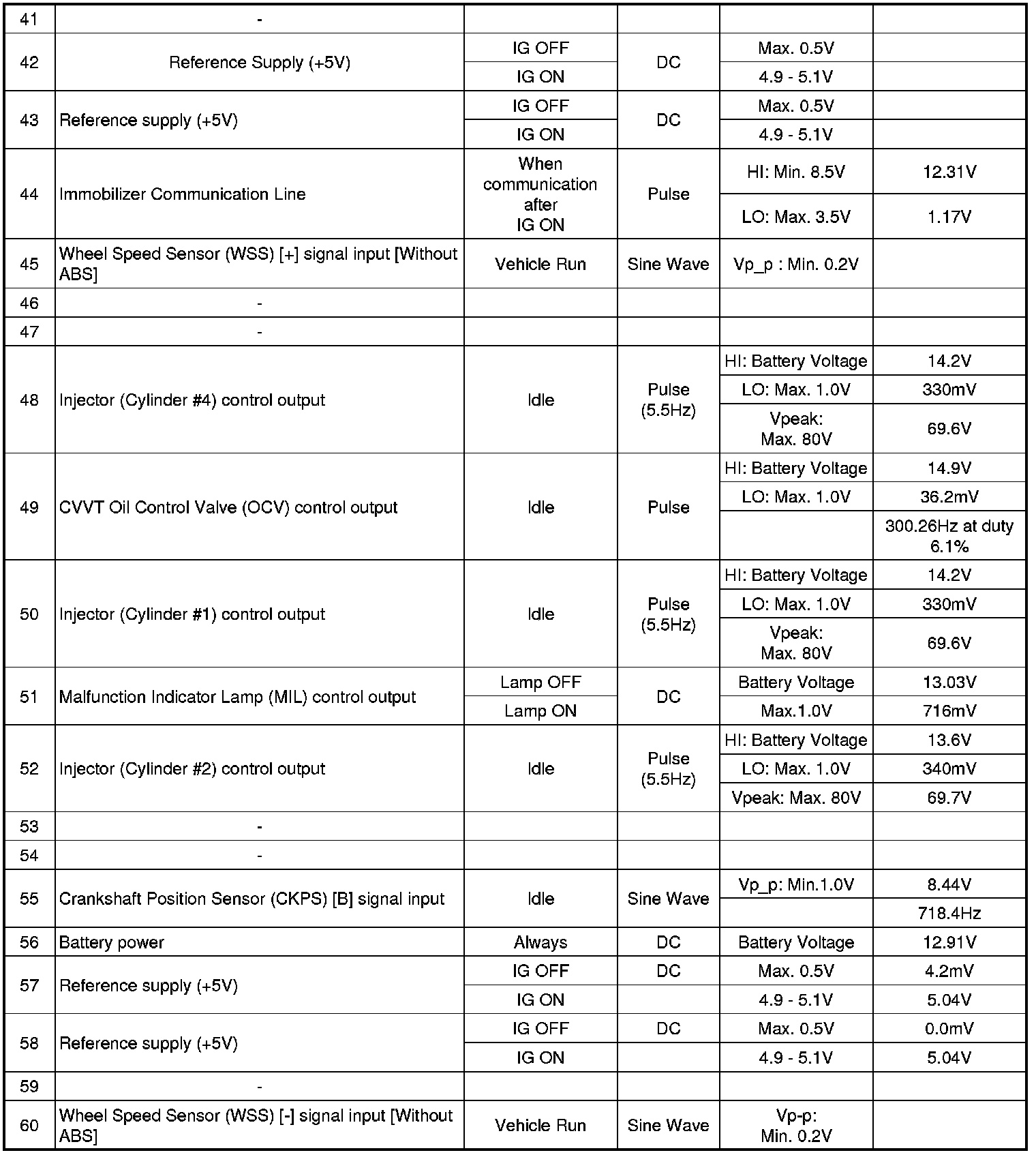

CONNECTOR [C01]
