Axle Shaft Assembly

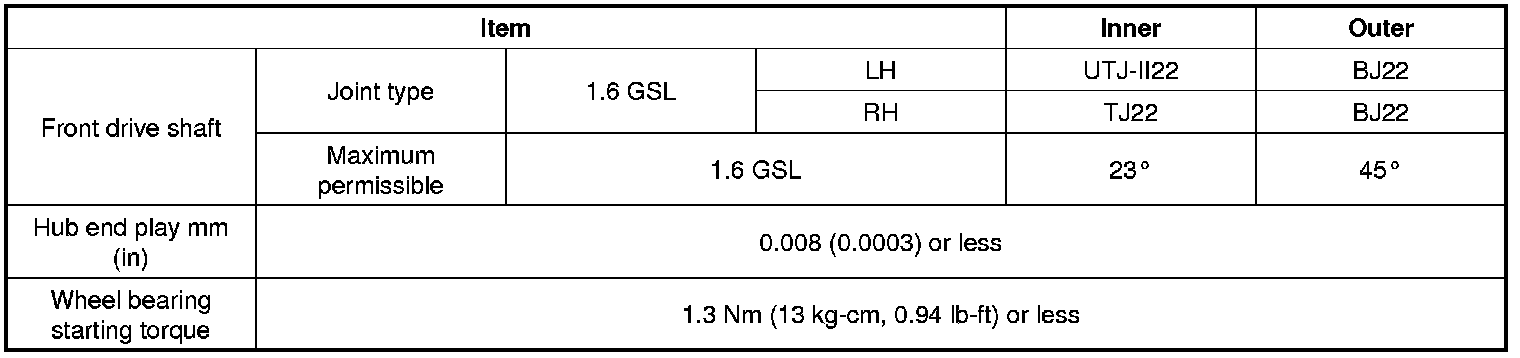

SPECIFICATIONS





- BJ : Birfield Joint
- TJ : Tripot Joint
- UTJ-II : U TYPE-II Tripot Joint

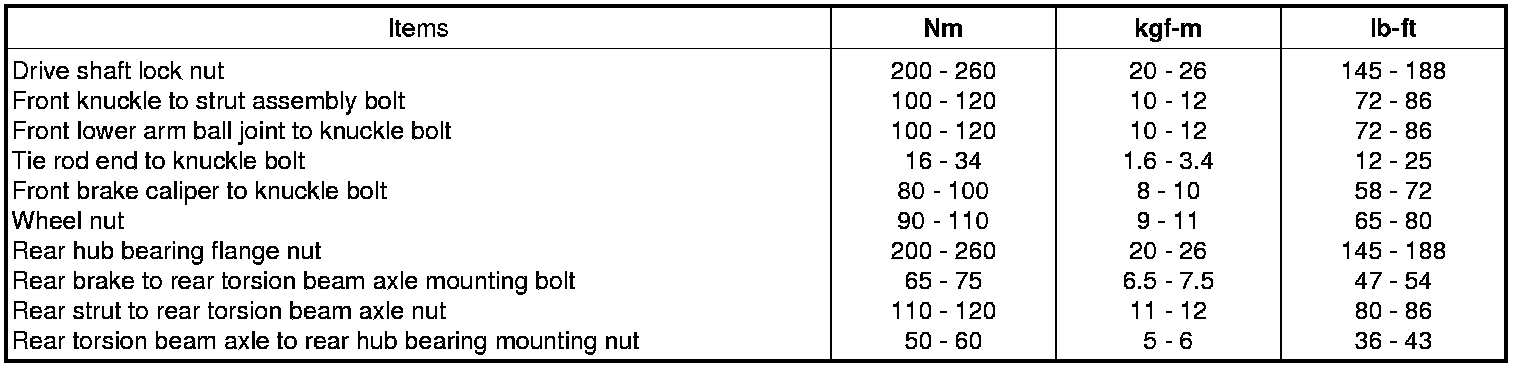

TIGHTENING TORQUE





CAUTION:
Replace self-locking nuts with new ones after removal.

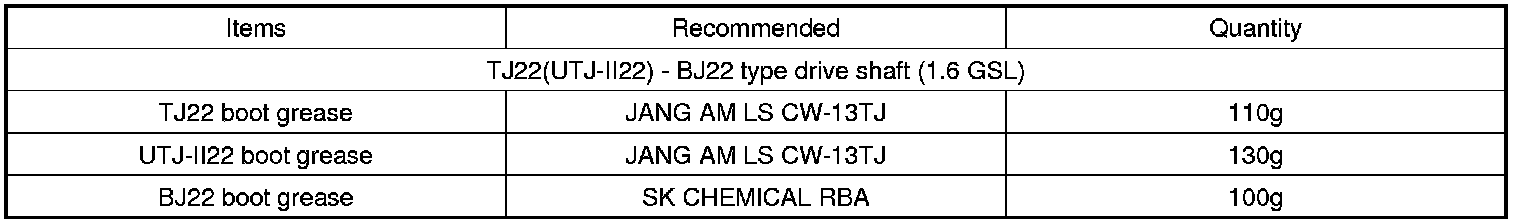

LUBRICANT
