Pressure Plate
Pressure Plate

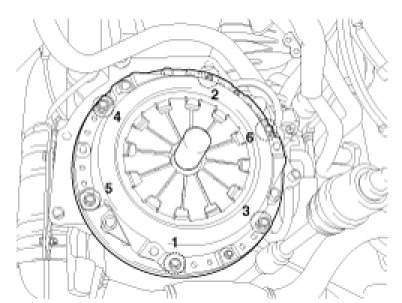

Install the clutch cover assembly to the flywheel and temporarily tighten the bolts one or two steps at a time in a star pattern.
Torque:
Clutch cover bolt 15 - 22 Nm (150 - 220 kgf.cm, 11 - 16 lb-ft)
Pressure Plate
Install the clutch cover assembly to the flywheel and temporarily tighten the bolts one or two steps at a time in a star pattern.
Torque:
Clutch cover bolt 15 - 22 Nm (150 - 220 kgf.cm, 11 - 16 lb-ft)
