Connecting Rod, Engine

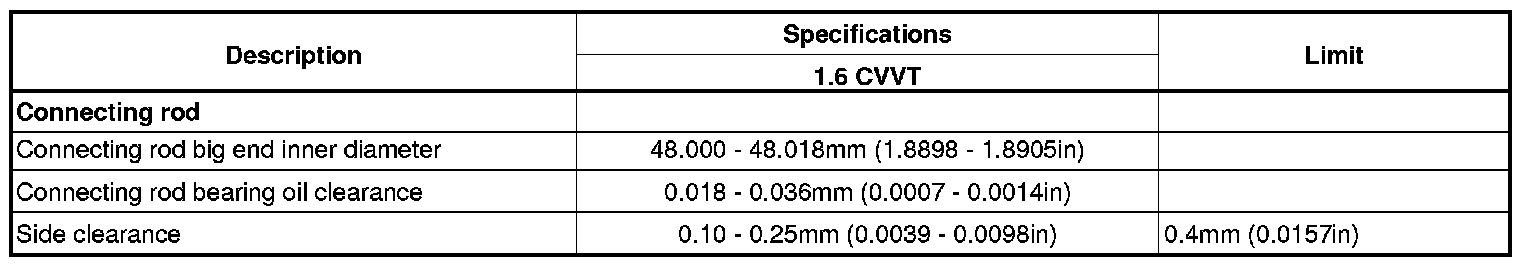

Connecting Rod






Connecting Rod Bearing Cap

Tightening torque 31.4 - 34.3 N.m (3.2 - 3.5 kgf.m, 23.1 - 25.3 lb-ft)
