Spark Test

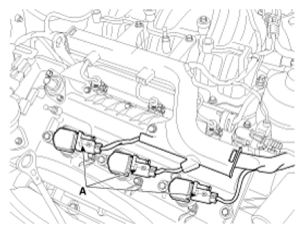

  1. Remove the ignition coil connector (A).
    Fig 1: Ignition Coil Connectors
    G07388878Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 2: Identifying Lock Pin & Clip
    G07388879Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the ignition coil (A).
    Fig 3: Ignition Coils
    G07388880Courtesy of KIA MOTORS AMERICA, INC.
  3. Using a spark plug socket, remove the spark plug.
  4. Install the spark plug to the ignition coil.
  5. Ground the spark plug to the engine.
    Fig 4: Grounding Spark Plug To Engine
    G07388881Courtesy of KIA MOTORS AMERICA, INC.
  6. Check if spark occurs while engine is being cranked.
    NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the fuel pump connector.
    Crank the engine for no more than 5 ~ 10 seconds.
  7. Inspect all the spark plugs.
  8. Using a spark plug socket, install the spark plug.
  9. Install the ignition coil.
  10. Reconnect the ignition coil connector.

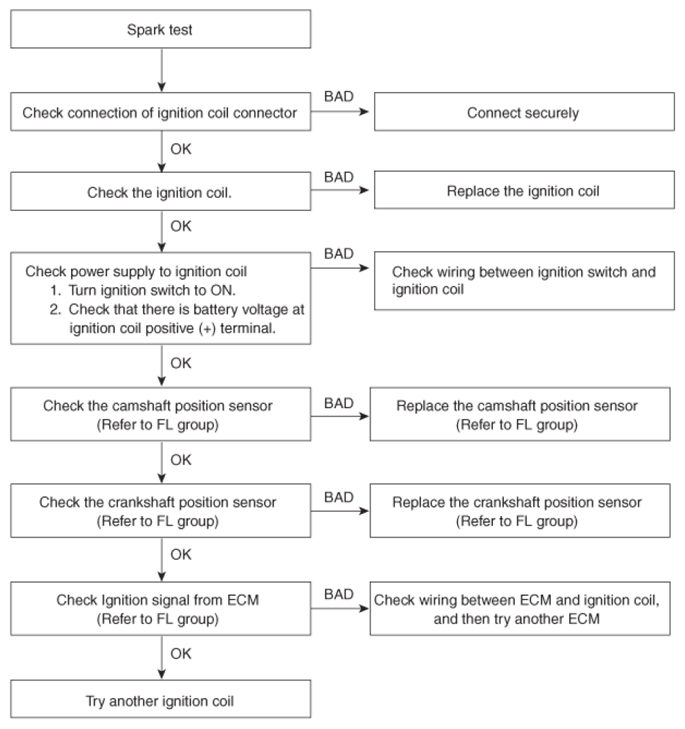

Fig 5: Spark Test Flow Chart
G07388882Courtesy of KIA MOTORS AMERICA, INC.
