Power Window Main Switch

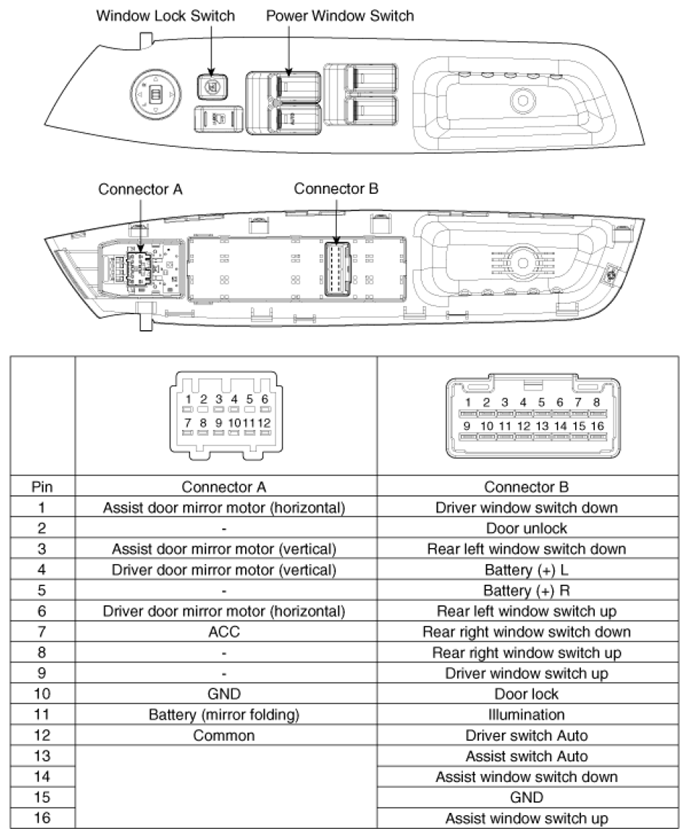

Fig 1: Identifying Power Window Main Switch Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
