Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim and power window switch.
(Refer to "FRONT DOOR ")
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

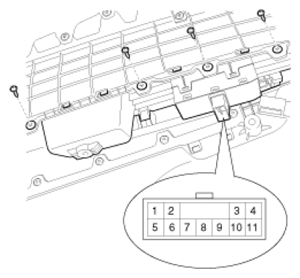

Fig 1: Identifying Power Window Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

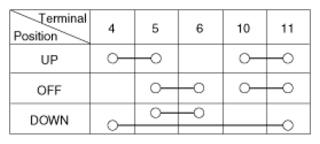

Fig 2: Power Window Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
