Power Windows: Troubleshooting
No windows operate from the main switch on the driver's door.
Fig 1: Rear Power Window Switch Troubleshooting Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.

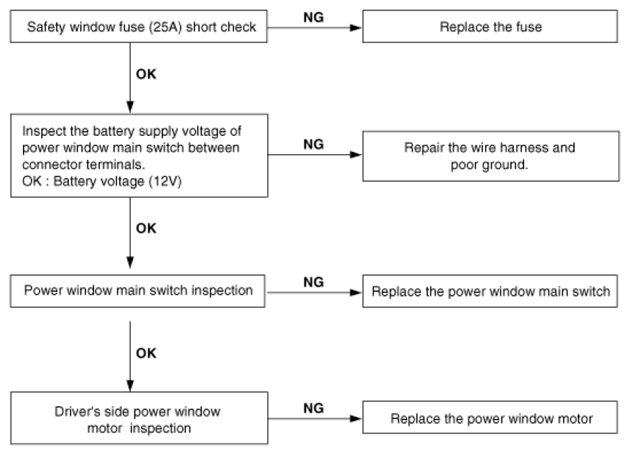

Driver's side window does not operate.
Fig 2: Rear Power Window Switch Troubleshooting Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.

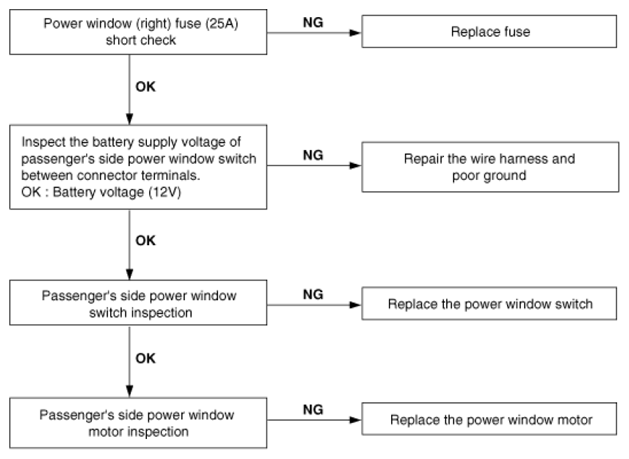

Passenger's side window does not operate.
Fig 3: Rear Power Window Switch Troubleshooting Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
