Components and Components Location: Component

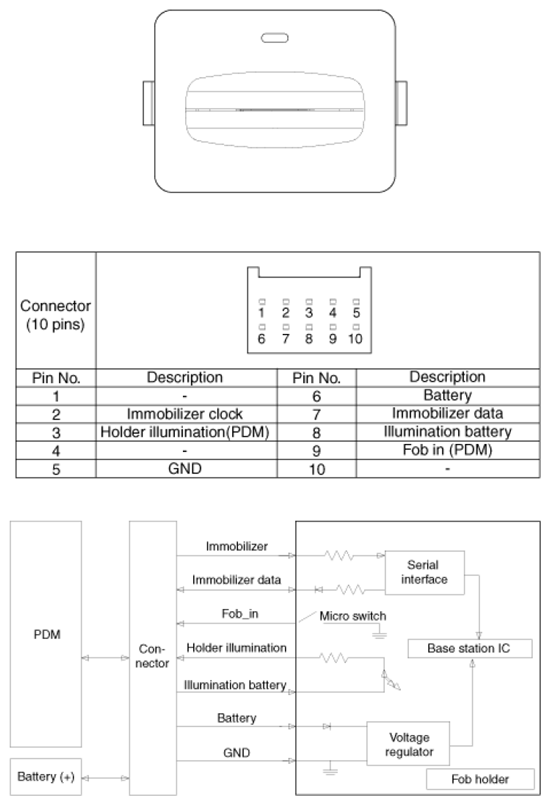

Fig 1: Identifying Fob Holder And Connector Pins

G07416438

Courtesy of KIA MOTORS AMERICA, INC.
