Components and Components Location: Component: Notes

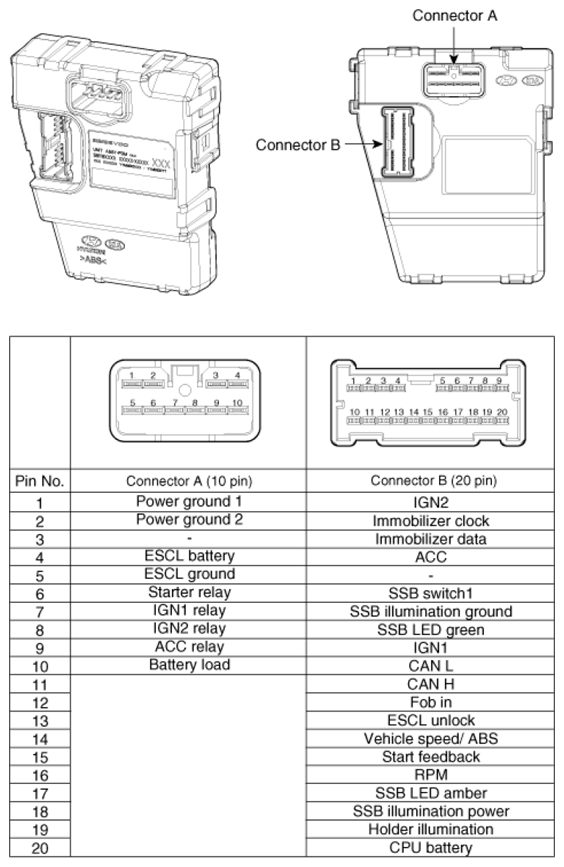

Fig 1: Identifying Power Distribution Module And Connector Terminals
G07416441Courtesy of KIA MOTORS AMERICA, INC.
