Components and Components Location: Component

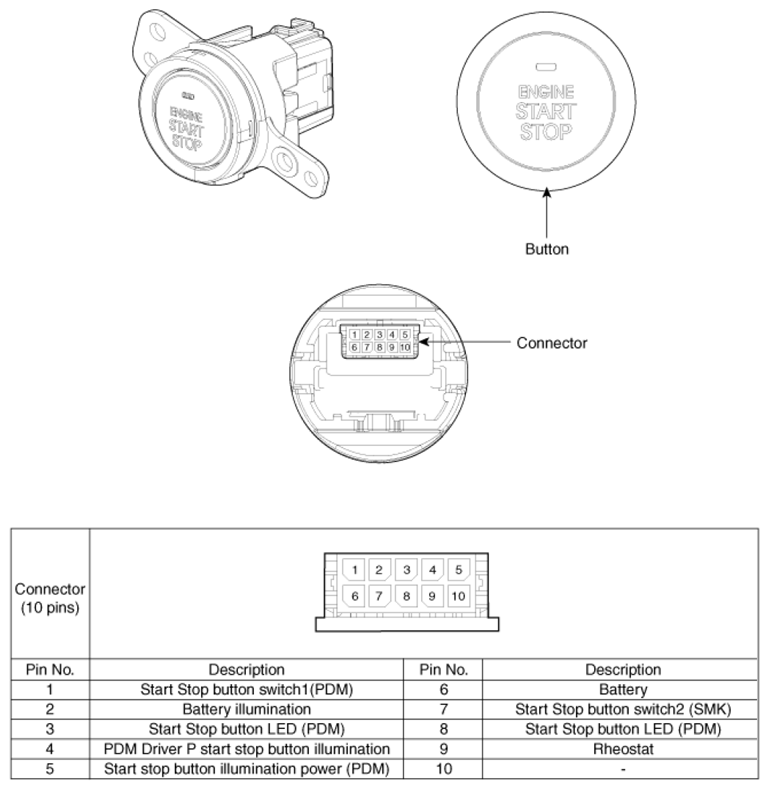

Fig 1: Identifying Start Stop Button And Connector Terminals
G07416433Courtesy of KIA MOTORS AMERICA, INC.
