Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A).

    (Refer to "CRASH PAD ")

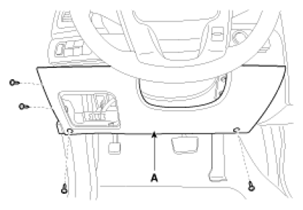

    Fig 1: Identifying Crash Pad Lower Panel
    G07416434Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the start/stop button cover (A) after loosening the mounting screw.
    Fig 2: Identifying Start/Stop Button Cover
    G07416435Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A).
    Fig 3: Identifying Start/Stop Button Connector
    G07416436Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the start/stop button (A) after loosening the mounting screws.
    Fig 4: Identifying Start/Stop Button With Mounting Screws
    G07416437Courtesy of KIA MOTORS AMERICA, INC.
