Description and Operation: Components

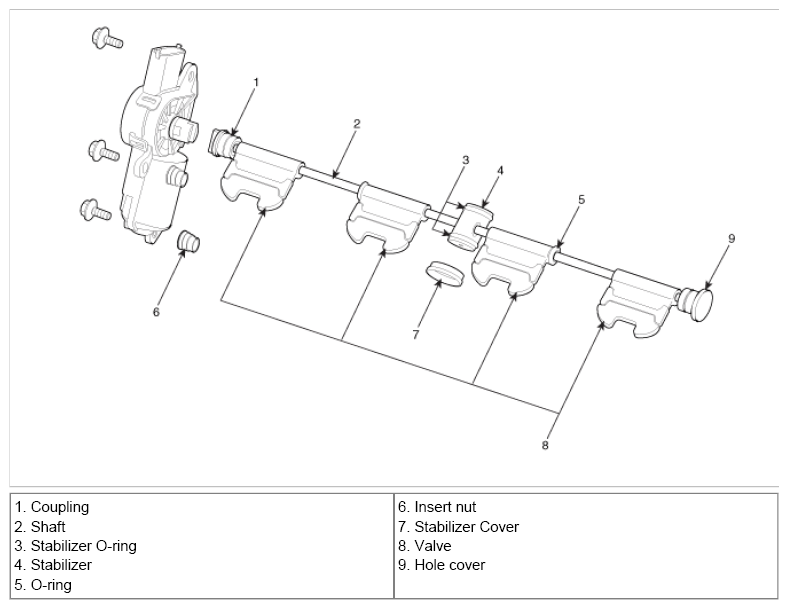

Fig 1: Identifying Variable Charge Motion Actuator And Related Components
G07415560Courtesy of KIA MOTORS AMERICA, INC.
