Special Service Tools

SPECIAL SERVICE TOOLS REFERENCE CHART

Tool (Number and Name) Illustration Application
Fuel Pressure Gauge
(09353-24100)
G07419701
 Measuring the fuel line pressure
Fuel Pressure Gauge Adapter
(09353-38000)
G07419702
 Connection between the delivery pipe and the fuel feed line
Fuel Pressure Gauge Connector
(09353-24000)
G07419703
 Connection between the Fuel Pressure Gauge (09353-24100) and the Fuel Pressure Gauge Adapter (09353-38000)
Heated Oxygen Sensor Socket Wrench
(09392-2H100)
G07419704
 Removal and installation of the heated oxygen sensor

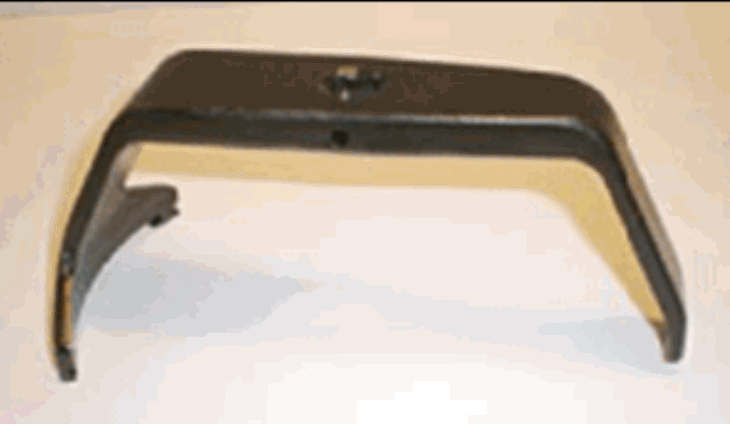

Fuel Pump Locking Ring Remover
* This tool can be purchased from KMA or Other tool supplier. (Not Mobis)
G00520495
 Removal and installation of the fuel pump (or sub fuel sender) locking ring
