Removal and Installation

  1. Disconnect the ignition coil connectors (A).

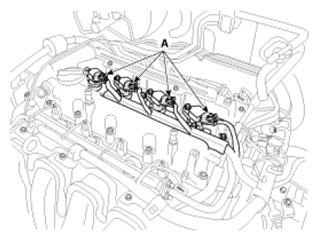

    Fig 1: Identifying Ignition Coil Connectors
    G07419662Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the ignition coils (A).
    Fig 2: Identifying Ignition Coils
    G07419663Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
