Run Out Inspection

  1. Jack up the vehicle.
  2. Measure the wheel Run-out by using a dial indicator as illustration below.
    WHEEL RUN-OUT REFERENCE CHART

    Radial mm(in) Below 0.3(0.012)
    Lateral mm(in) Below 0.3(0.012)
  3. If measured value exceeds the standard value, replace the wheel.

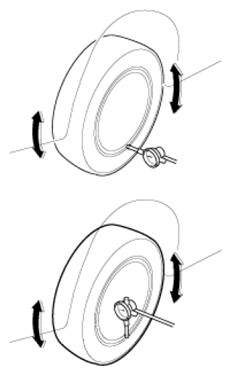

Fig 1: Measuring Wheel Run-Out Using Dial Indicator
G07419865Courtesy of KIA MOTORS AMERICA, INC.
