Home >> Kia >> 2011 >> Sorento Base, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L >> Shift Lever >> Components and Components Location >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components and Components Location: Components

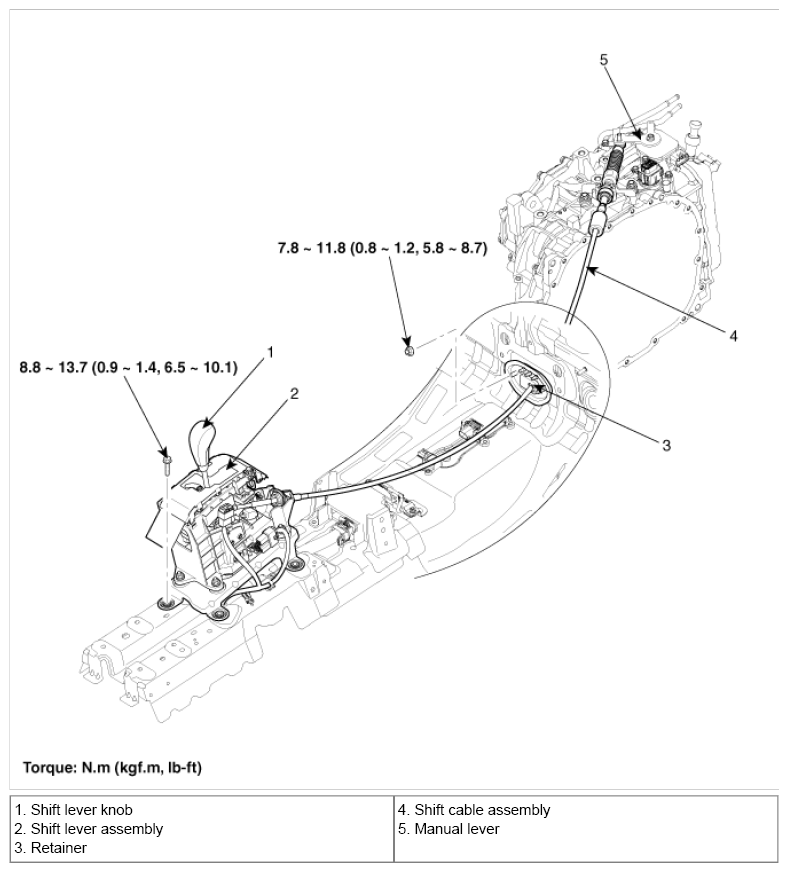

Fig 1: Exploded View Of Shift Lever With Torque Specifications
G07415623Courtesy of KIA MOTORS AMERICA, INC.
