Repair procedures: Removal

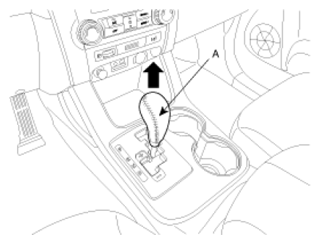

Pull the shift lever knob (A) upward to remove.

Fig 1: Pulling Shift Lever Knob Upward
Courtesy of KIA MOTORS AMERICA, INC.

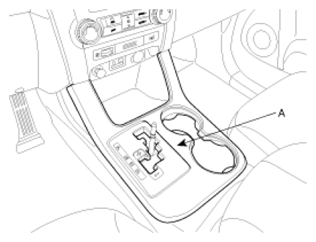

Remove the center console cover (A).

Fig 2: Identifying Center Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center console assembly. (Refer to "INTERIOR " in BD group.)
Disconnect sports mode connector (A).

Fig 3: Identifying Sports Mode Connector
Courtesy of KIA MOTORS AMERICA, INC.

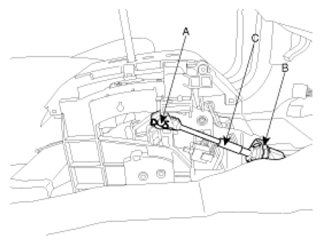

Take off the clip (A) and the clamp (B) and then remove the shift cable (C).

Fig 4: Identifying Clip, Clamp And Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

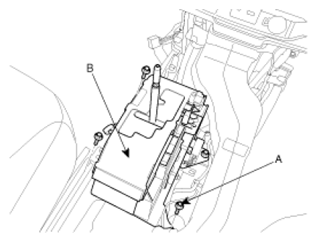

Remove the shift lever assembly (B) by removing the four bolts (A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 5: Identifying Shift Lever Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut connected with manual lever on the automatic transaxle assembly and a clip.

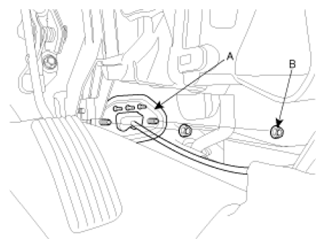

Remove the shift cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7~10.9 lb-ft)

Fig 6: Identifying Nuts And Retainer
Courtesy of KIA MOTORS AMERICA, INC.
