Components Location

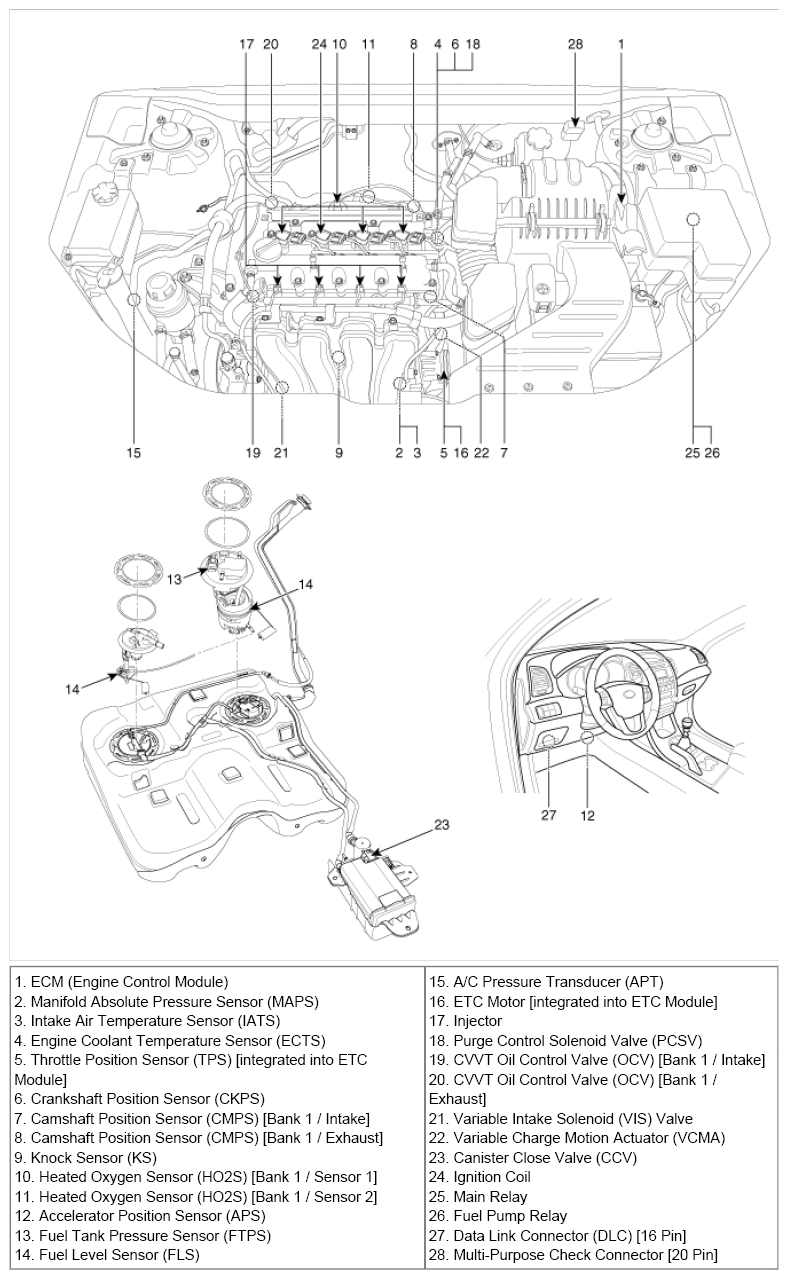

Fig 1: Identifying Engine Control System Components Location (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

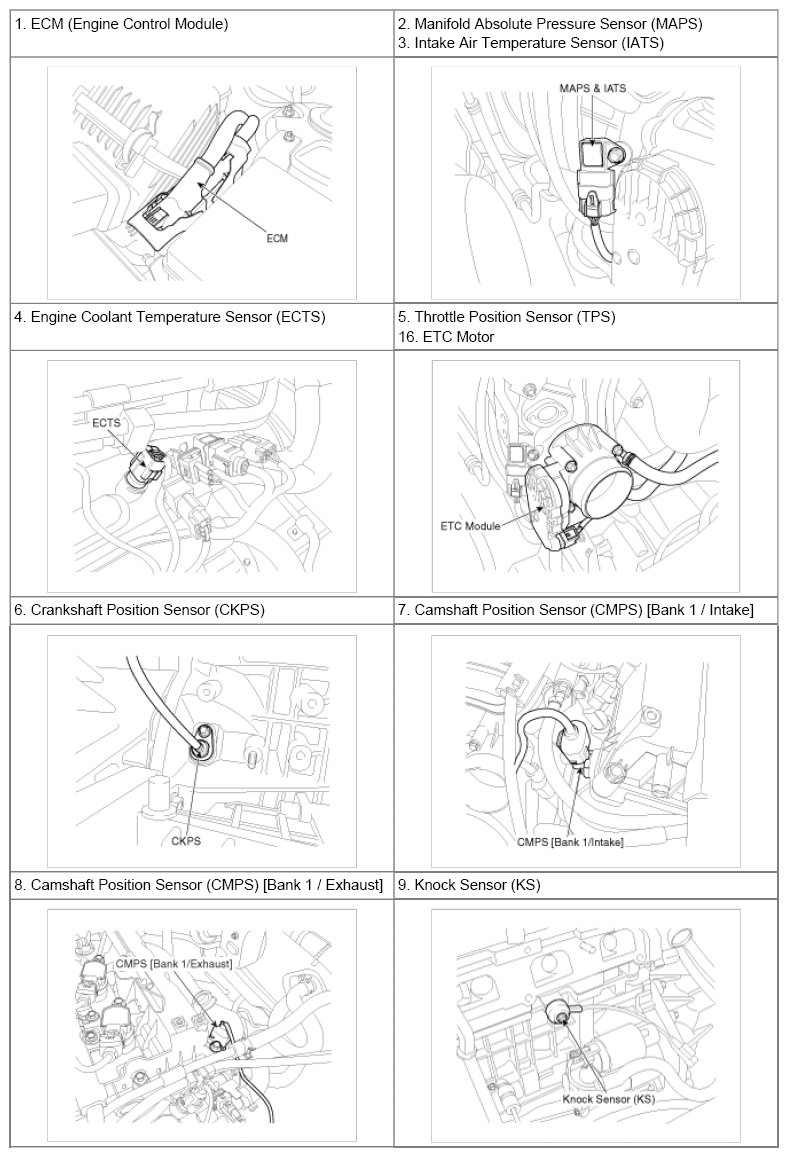

Fig 2: Identifying Engine Control System Components Location (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

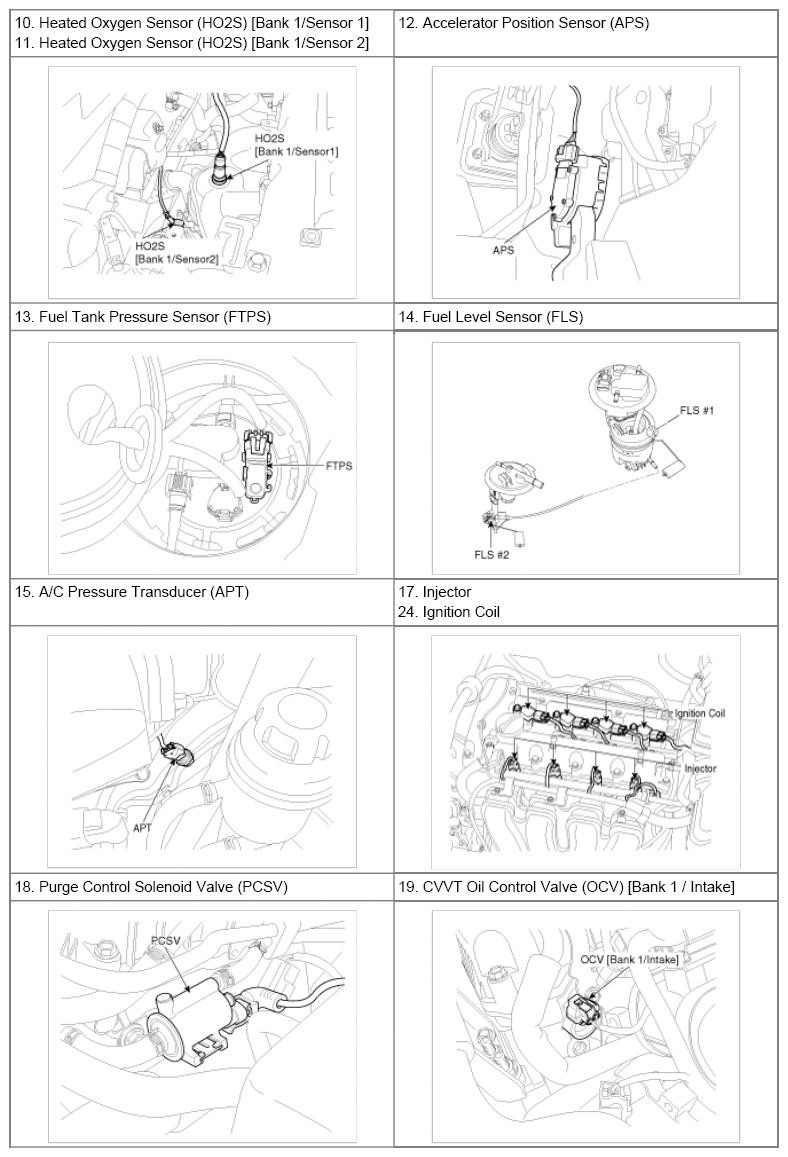

Fig 3: Identifying Engine Control System Components Location (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

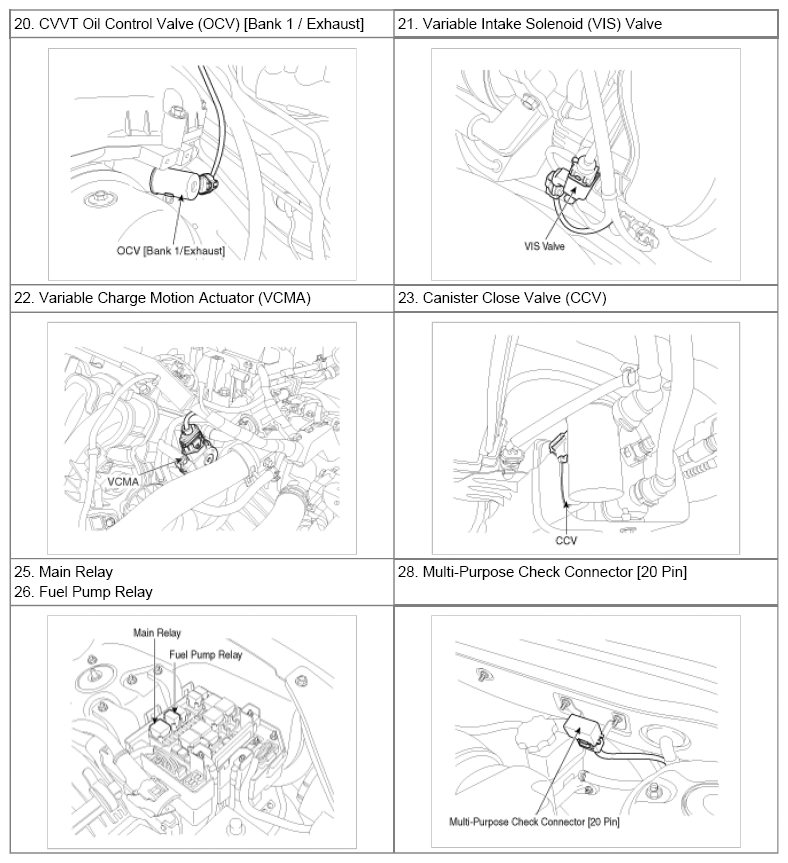

Fig 4: Identifying Engine Control System Components Location (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
