VIN Programming Procedure

VIN (Vehicle Identification Number) is a number that has the vehicle's information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to the group in this SERVICE INFORMATION). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) is set.

CAUTION: The programmed VIN cannot be changed. When writing the VIN, confirm the VIN carefully

Select "VIN Writing" function in "Vehicle S/W Management".
Select "Write VIN" in "ID Register".

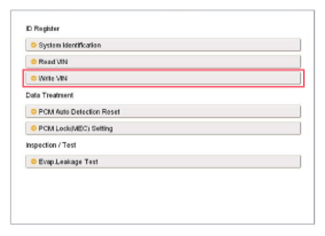

Fig 1: Screen Display - Write VIN
Courtesy of KIA MOTORS AMERICA, INC.
Input the VIN.
CAUTION: Before inputting the VIN, confirm the VIN again because the programmed VIN cannot be changed.

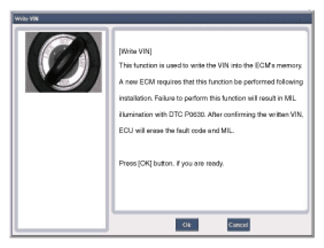

Fig 2: Screen Display - Input VIN
Courtesy of KIA MOTORS AMERICA, INC.
Turn the ignition switch OFF, then back ON.
