Engine Control System - 2.4L
>>
Variable Charge Motion Actuator (VCMA)
>>
Schematic Diagrams
>>
Circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram

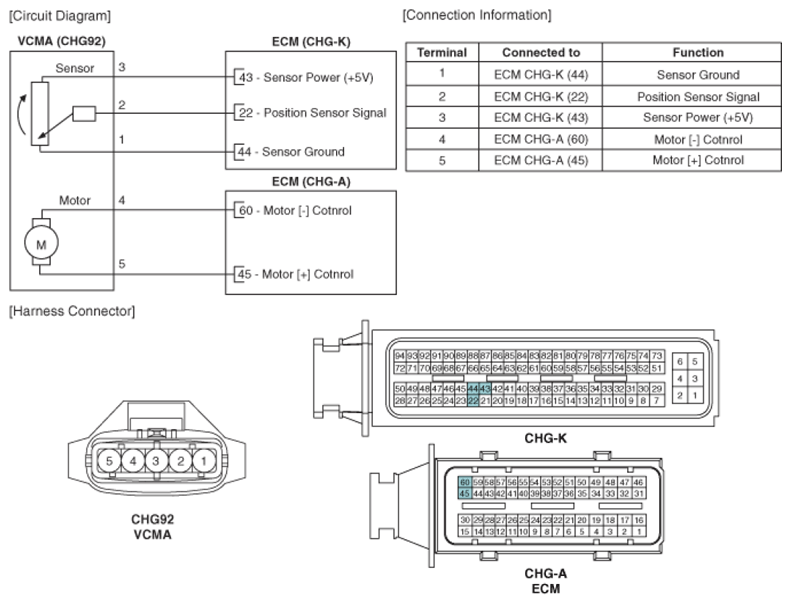

Fig 1: VCMA Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
