Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the variable intake solenoid valve connector (A).
  3. Disconnect the vacuum hoses (B) from the valve.
  4. Remove the installation nut (C), and then remove the valve from the surge tank.

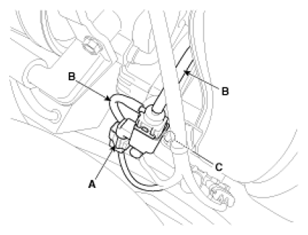

    Fig 1: Identifying Variable Intake Solenoid Valve Connector, Vacuum Hoses And Installation Bolt
    G07415553Courtesy of KIA MOTORS AMERICA, INC.
