Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD ")

  3. Remove the junction box.
  4. Check for continuity between the terminals.
  5. There should be continuity between the No. 2 in the I/P-F and No. 8 or 14 terminal in the I/P-H when power and ground are connected to the No. 2 terminal in the I/P-F and No. 9 terminal in the I/P-A.
  6. There should be no continuity between the No. 2 terminal in the I/P-F and No. 8 or 14 terminal in the I/P-H when power is disconnected.
Fig 1: Power Window Relay Junction Box Connector End View
G06525520Courtesy of KIA MOTORS AMERICA, INC.

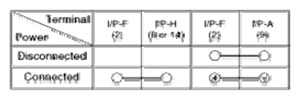

Fig 2: Power Window Relay Continuity Chart
G06525521Courtesy of KIA MOTORS AMERICA, INC.
