Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim and power window switch module.
(Refer to "FRONT DOOR ")

Fig 1: Identifying Passenger Power Window Switch
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector from the switch.

Fig 2: Passenger Power Window Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
Manual Power Window

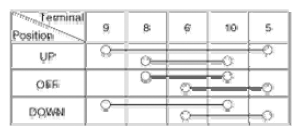

Fig 3: Passenger Power Window Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
