Circuit Diagram

[A/T]

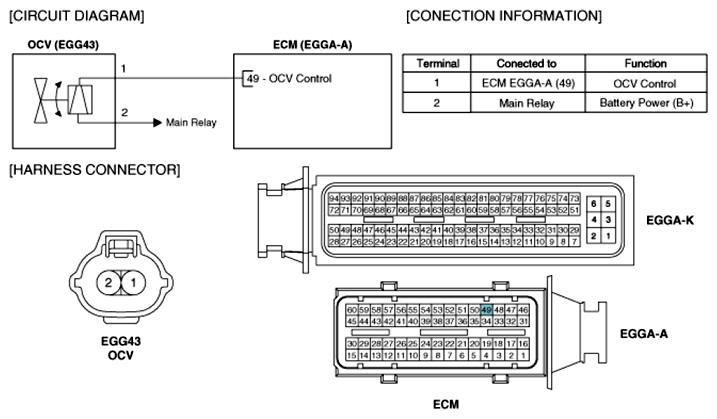

Fig 1: OCV & ECM - Circuit Diagram (A/T)
G06526183Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

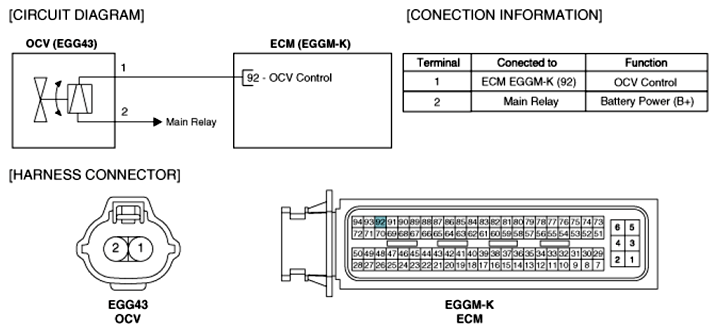

Fig 2: OCV & ECM - Circuit Diagram (M/T)
G06526184Courtesy of KIA MOTORS AMERICA, INC.
