Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

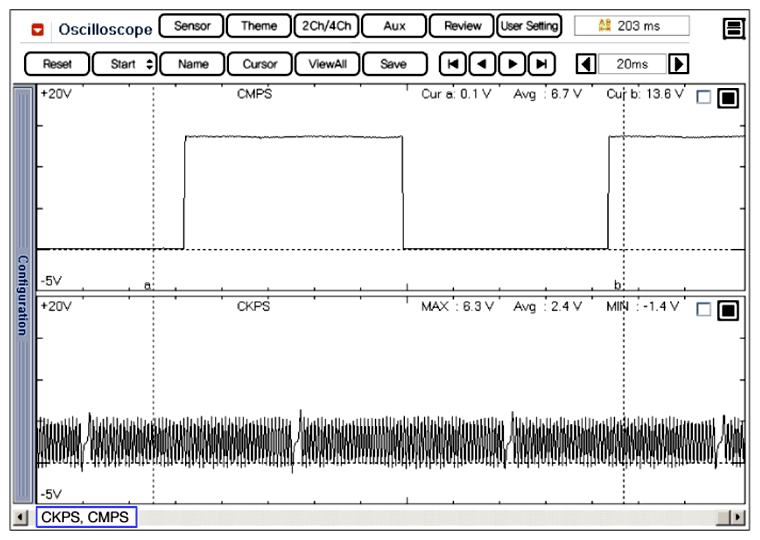

Fig 1: Scan Tool Display - Signal Waveform Of CKPS & CMPS (1 Of 2)
G06526162Courtesy of KIA MOTORS AMERICA, INC.

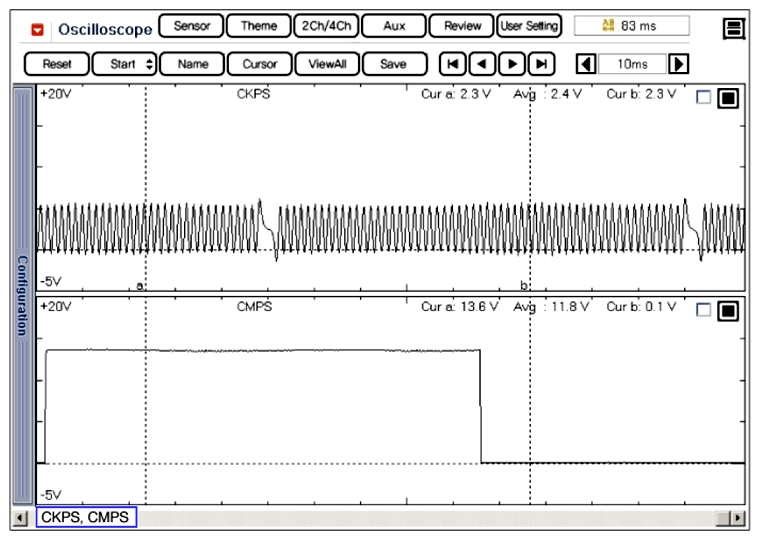

Fig 2: Scan Tool Display - Signal Waveform Of CKPS & CMPS (1 Of 2)
G06526163Courtesy of KIA MOTORS AMERICA, INC.
