Circuit Diagram

[A/T]

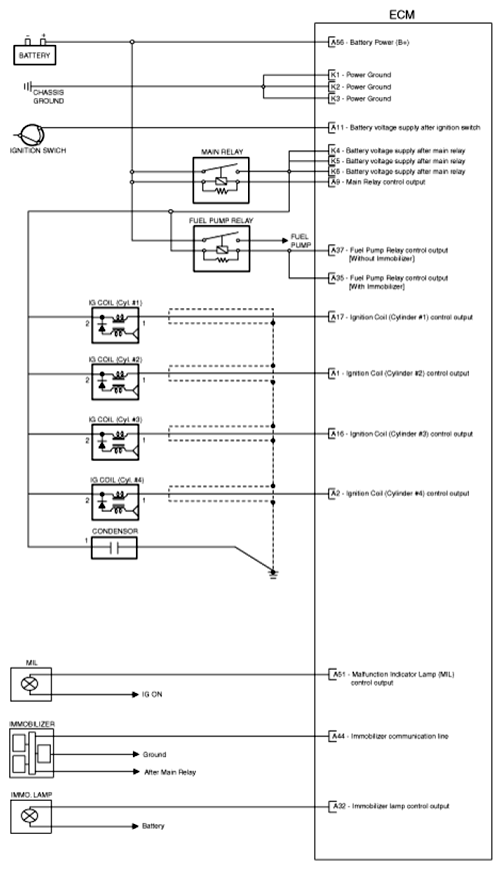

Fig 1: ECM Circuit Diagram - A/T (1 Of 4)

G06526129

Courtesy of KIA MOTORS AMERICA, INC.

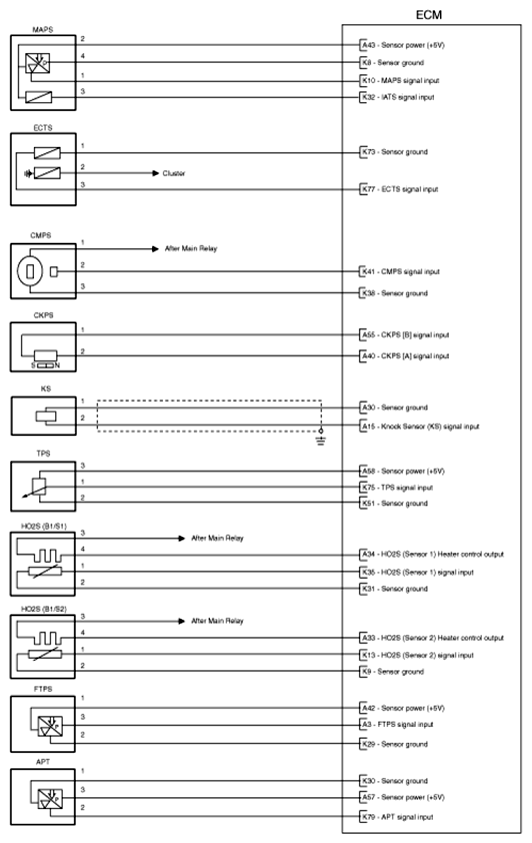

Fig 2: ECM Circuit Diagram - A/T (2 Of 4)

G06526130

Courtesy of KIA MOTORS AMERICA, INC.

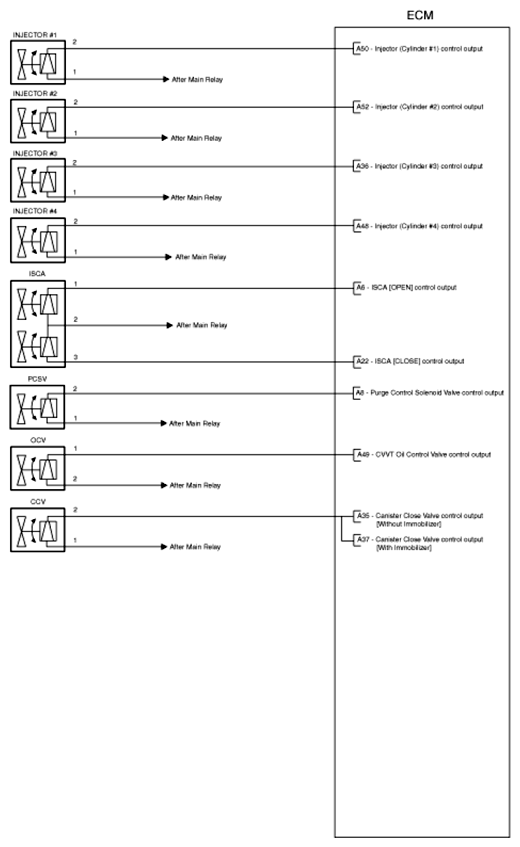

Fig 3: ECM Circuit Diagram - A/T (3 Of 4)

G06526131

Courtesy of KIA MOTORS AMERICA, INC.

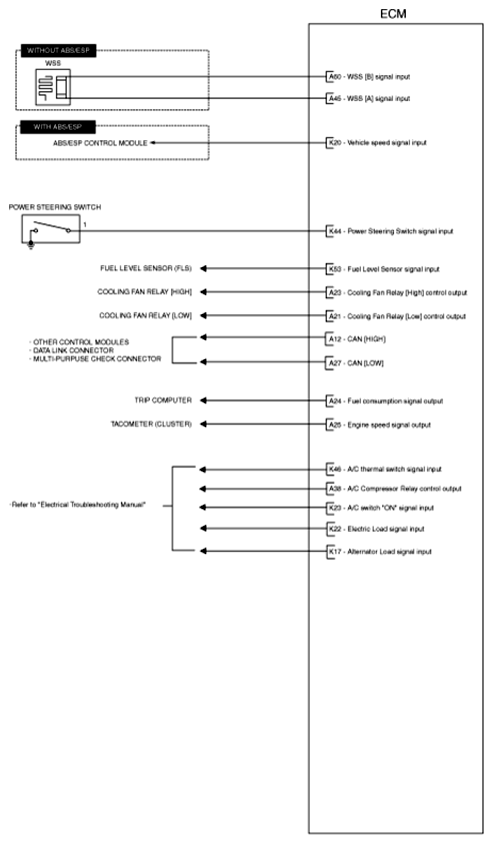

Fig 4: ECM Circuit Diagram - A/T (4 Of 4)

G06526132

Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

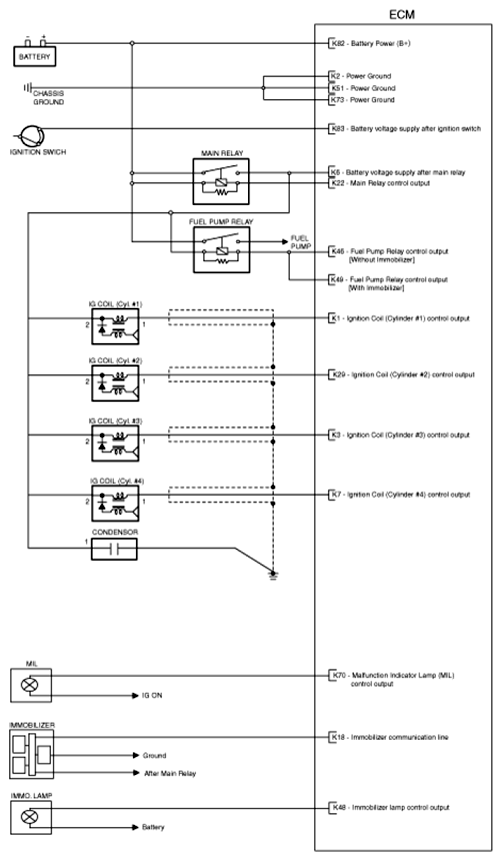

Fig 5: ECM Circuit Diagram - M/T (1 Of 4)

G06526133

Courtesy of KIA MOTORS AMERICA, INC.

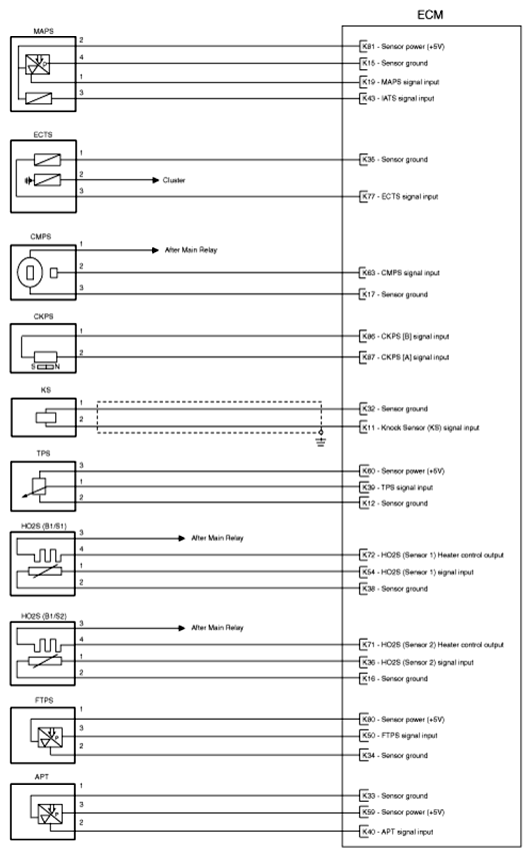

Fig 6: ECM Circuit Diagram - M/T (2 Of 4)

G06526134

Courtesy of KIA MOTORS AMERICA, INC.

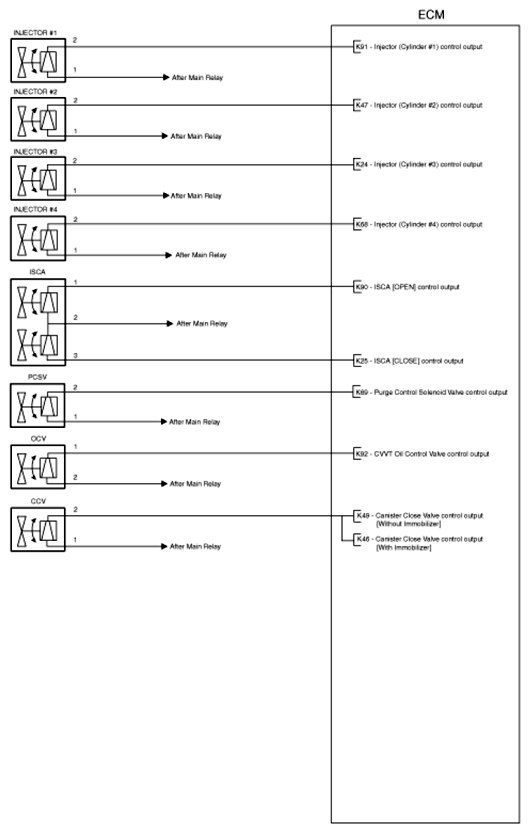

Fig 7: ECM Circuit Diagram - M/T (3 Of 4)

G06526135

Courtesy of KIA MOTORS AMERICA, INC.

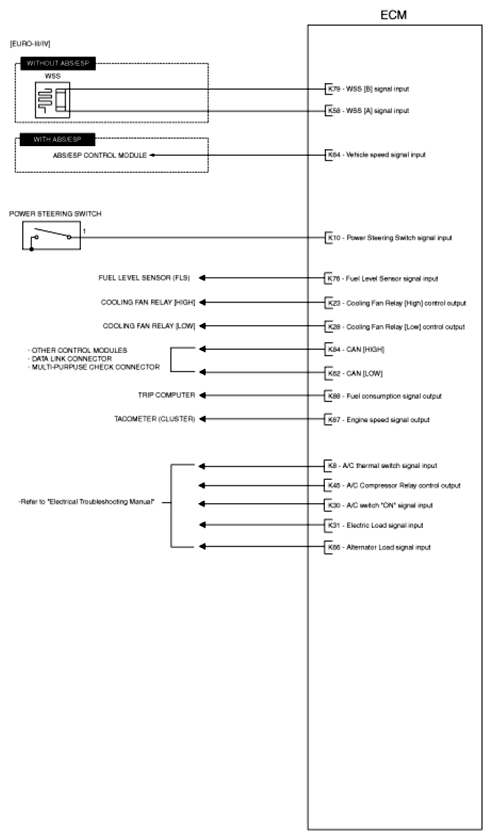

Fig 8: ECM Circuit Diagram - M/T (4 Of 4)

G06526136

Courtesy of KIA MOTORS AMERICA, INC.
