Components and Component Locations: Components

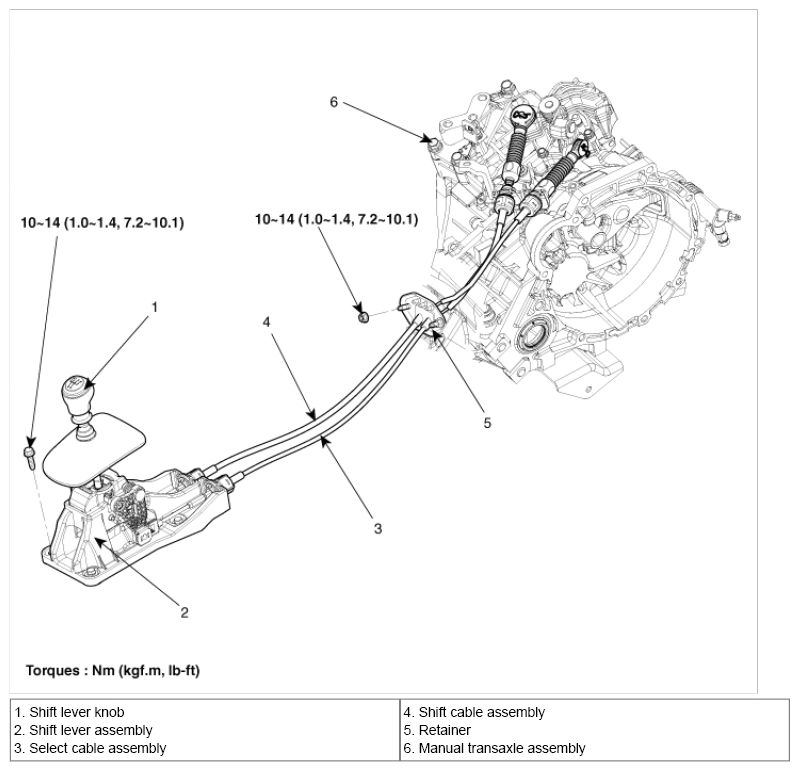

Fig 1: Shift Lever Replacement Components With Torque Specifications
G06526262Courtesy of KIA MOTORS AMERICA, INC.
