Repair procedures: Installation

Install the cable assembly placing the select and shift lever in neutral position. (Refer to MANUAL TRANSAXLE SYSTEM - 1.6L ).

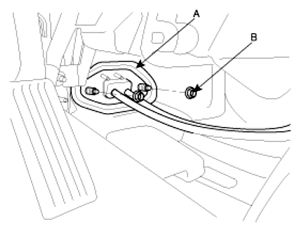

Install the retainer (A) and nuts (B).
Tightening torque:

10~14Nm (1.0~1.4kgf.m, 7.2~10.1lb-ft)

Fig 1: Identifying Retainer & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable with the clip (A) to the shift lever.

Fig 2: Installing Shift Cable With Clip
Courtesy of KIA MOTORS AMERICA, INC.

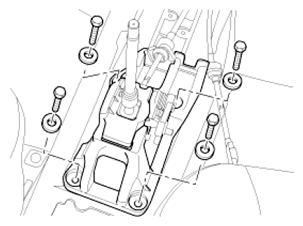

Install the shift lever assembly by installing the bolts (4ea).
Tightening torque:

10~14Nm (1.0~1.4kgf.m, 7.2~10.1lb-ft)

Fig 3: Identifying Shift Lever Assembly & Bolts
Courtesy of KIA MOTORS AMERICA, INC.

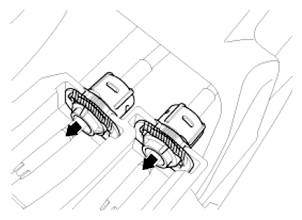

Install the cable with the clip to the shift lever.

Fig 4: Installing Shift Lever
Courtesy of KIA MOTORS AMERICA, INC.

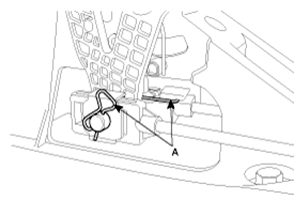

Install the snap pin (A) to hold the select cable assembly.

Fig 5: Identifying Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Install the center console. (Refer to CONSOLE )

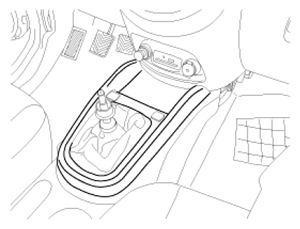

Install the shift boot.

Fig 6: Identifying Shift Boot
Courtesy of KIA MOTORS AMERICA, INC.

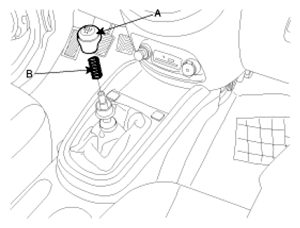

Install the spring (B) and the shift lever knob (A) by turning the knob.

Fig 7: Identifying Spring & Shift Lever Knob
Courtesy of KIA MOTORS AMERICA, INC.
