Exhaust Manifold

Exhaust Manifold

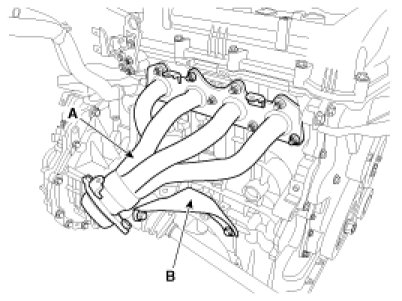

Remove the exhaust manifold stay (B) and the exhaust manifold(A) with its gasket.

Tightening torque :
Nuts (A) 39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)
Bolts (B) 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)
